- Page 1 OPTIONAL PHOTOSYNTHETIC LIGHT ASSEMBLY MANUAL NO.: M1233-0051 REVISION F NEW BRUNSWICK SCIENTIFIC CO., INC. BOX 4005 . 44 TALMADGE ROAD . EDISON, NJ 08818-4005 . 732-287-1200 TELEPHONE: 800-631-5417 . FAX: 732-287-4222 . TELEX: 4753012 NBSCO INTERNET: http://www.nbsc.com/ . E-MAIL: bioinfo@nbsc.com...
- Page 2 WARRANTY Innova shakers are warranted by New Brunswick Scientific Co., Inc. for two years or 10,000 hours of actual shaker use, whichever comes later. This warranty covers parts and labor for the entire machine with the exception of glassware and its contents, illumination tubes and associated starters. This...
- Page 3 INNOVA 4230 - LIGHT MANIFOLD COPYRIGHT NOTICE New Brunswick Scientific Co., Inc.© 1990. All rights reserved. No part of this manual may be reproduced in any form without the express written permission of NBS. DISCLAIMER NBS reserves the right to change specifications without notice as part of our continu- ing program of product improvement.

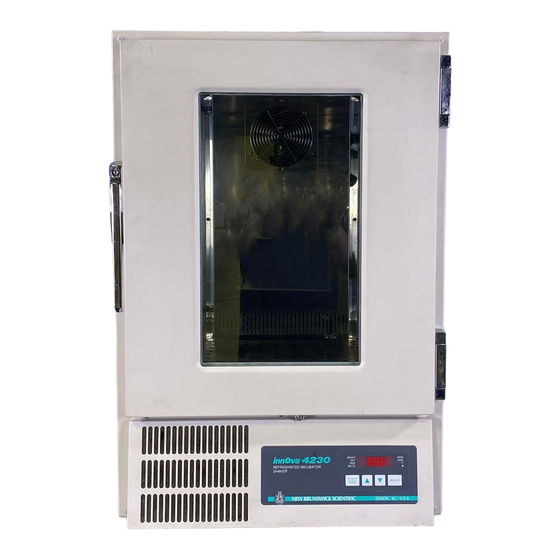

- Page 4 The Innova 4230 Photosynthetic Light Assembly will provide you with reliable and maintenance-free operation which is characteristic of all NBS products. The Innova 4230 is among the newest generation of NBS products and incorporates a variety of state-of-the-art components and features for your exacting scientific experiments.
-
Page 5: How To Use This Manual
Assembly. The Manual is divided into three basic sections. Section I provides an overview of the Innova 4230 Photosynthetic Light Assembly. Section II details the set-up and operation of the instrument. Section III outlines the service procedures which should be utilized by a qualified service engineer. -
Page 6: Table Of Contents
INNOVA OVERVIEW, GENERAL PRODUCT DESCRIPTION General Description................... INNOVA OPERATION Installation and Set-Up Unpacking..................Light Manifold Installation................. 2 Cleaning/Maintenance................. 5 SERVICE AND MAINTENANCE Lamp Replacement..................6 Lamp Starter Replacement................6 Service Parts List..................7 NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD... - Page 7 NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD...
-
Page 8: General Description
OVERVIEW GENERAL DESCRIPTION The 4230 Photosynthetic Light Assembly has six 15 watt fluorescent grow lamps which are designed specifically for photosynthetic investigations. NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD... -
Page 9: Installation And Set-Up
THE FAN (SEE FIGURE 1). 3. Set selector switch (located in rear right-hand corner of Light Manifold) to the proper voltage shown on electrical label for Innova 4230 unit. (See Figure 2 for setting of switch.) 4. Locate interior socket mounted on rear wall of interior chamber (in upper right-hand corner), socket is labeled 500 VA. - Page 10 OPERATION FIGURE 1 - MOUNTING NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD...
- Page 11 1. USING FLAT BLADED SCREW DRIVER REMOVE FUSE HOLDER 2. USING COIN, ROTATE SELECTOR UNTIL PROPER VOLTAG FOR UNIT IS INDICATED NEXT TO ARROW ON SELECTOR SWITCH. 3. REINSTALL FUSE HOLDER. FIGURE 2 - SELECTOR SWITCH NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD...
-
Page 12: Cleaning/Maintenance
Do not use abrasive or corrosive compounds to clean this module, as they may damage the unit and void the warranty. The Light Manifold diffuser should only be cleaned with a non-abrasive glass cleaner. NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD... -
Page 13: Service And Maintenance
3. Remove the two screws and clips mounted on the front side of the Light Manifold Assembly (before removing these screws hold the diffuser in place). Then remove the diffuser panel. NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD... -
Page 14: Service Parts List
PART NO. DESCRIPTION P0420-5180 Lamp Ballast (60 Hz only) P0420-5190 Lamp Ballast (50 Hz only) P0300-0042 Fluorescent Lamp P0400-1420 Starter Fluorescent P0380-0210 Lamp Socket M1233-9403 Light Diffuser Assy. P0380-3390 Fuse, 1.6 Amp NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD... - Page 15 CONTROL SCHEMATIC FIGURE 3 NEW BRUNSWICK SCIENTIFIC • INNOVA 4230 - LIGHT MANIFOLD...
