BLOTZ B10-CS-102 Assembly Instructions

PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due
care and remember to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold
pieces in place while you allow glue to dry.

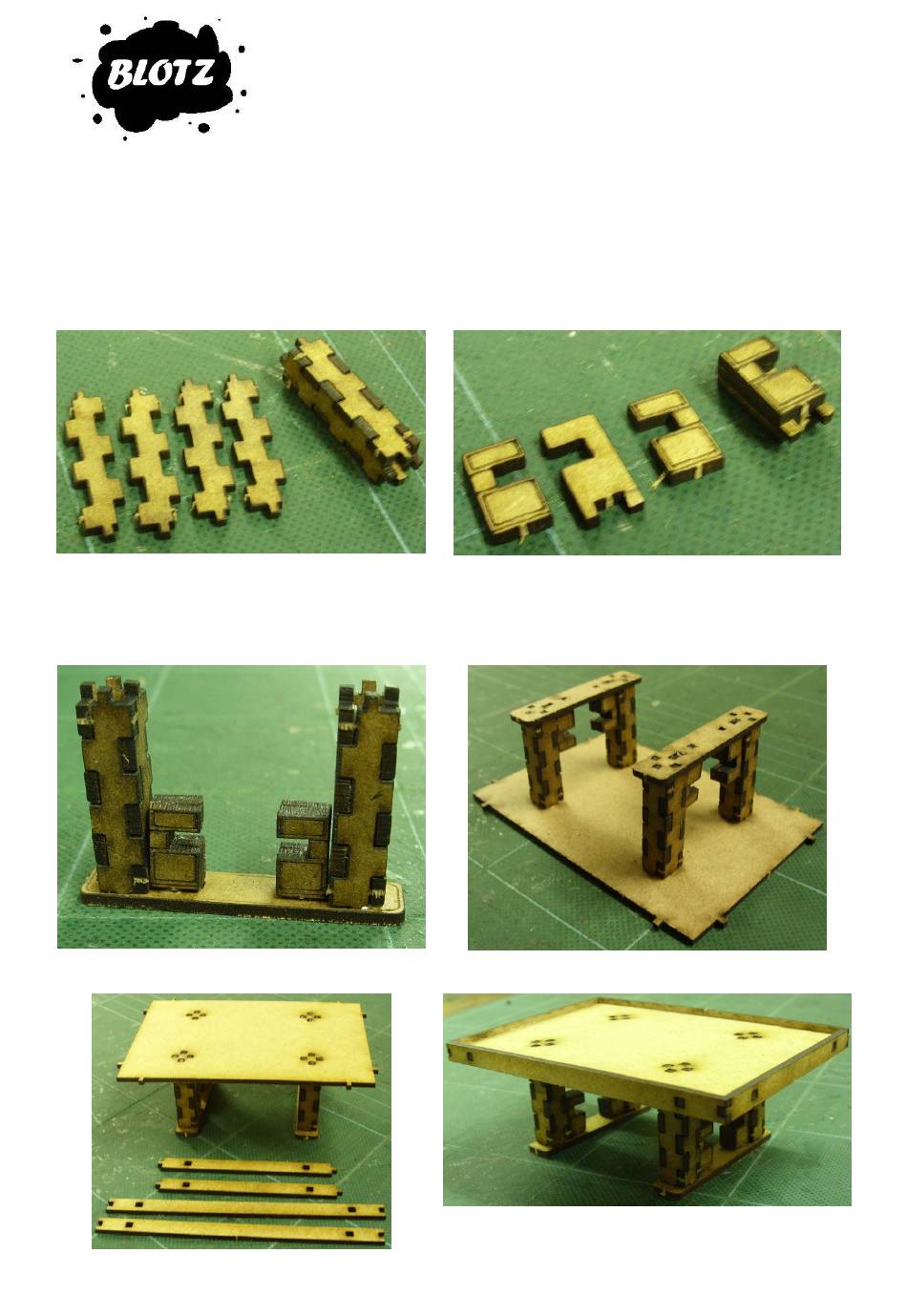

Each of the four columns is formed from the
pieces shown on the left. Glut them together to
form a hollow tube as shown on the right. Allow
to dry.
Glue two pillars and two pumps to each
rectangular base (as shown).
Turn the pumps the right way up and locate the
four edging strips

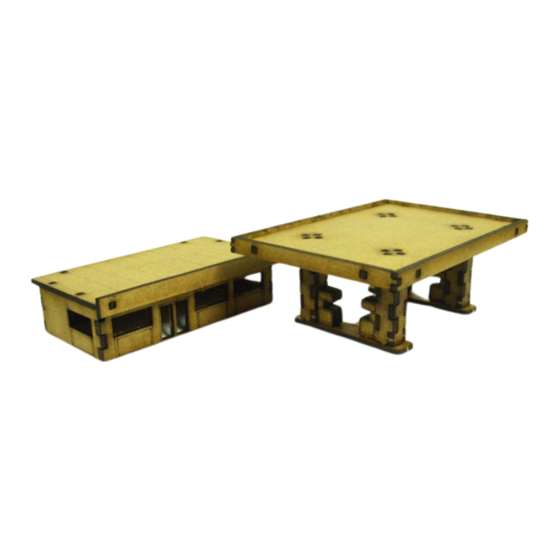

10mm Petrol Station and Shop/Diner
B10-CS-102
Please read these instructions fully before starting construction.
The petrol pumps are formed from the three pieces
shown on the left. Glue them together to form a
sandwich with the etched detail facing outwards as
shown on the right. Allow to dry.
Then (when dry) glue to them to the roof section.
Glue these around the edge of the roof section as
shown.
