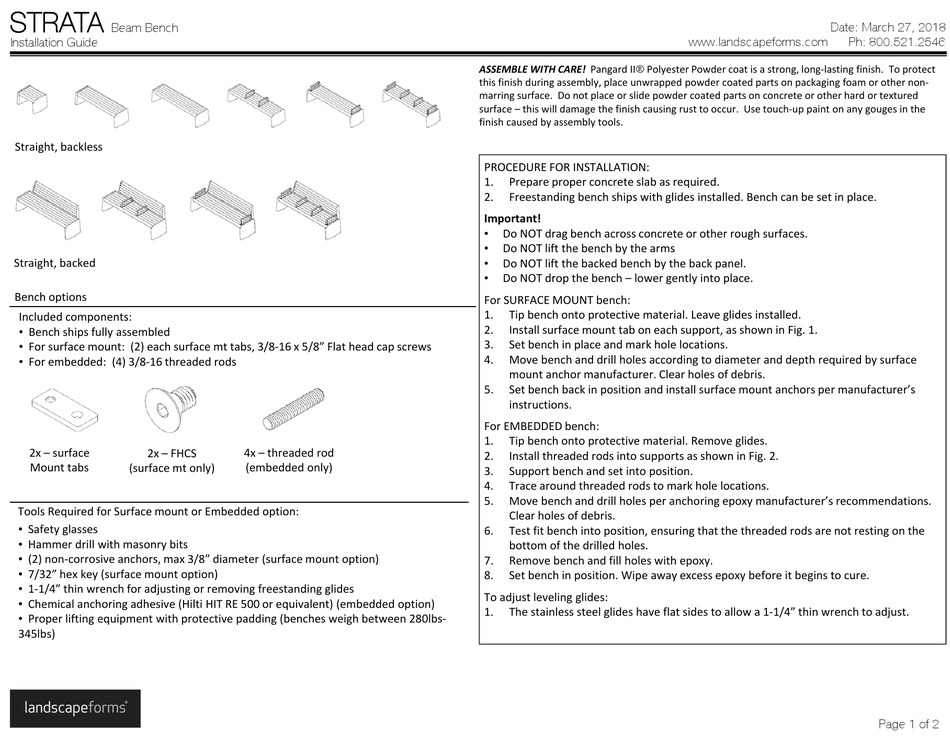

Landscape Forms Strata Beam Bench Installation Manual

STRATA
Beam Bench
Installation Guide
Straight, backless
Straight, backed
Bench options
Included components:
• Bench ships fully assembled
• For surface mount: (2) each surface mt tabs, 3/8‐16 x 5/8" Flat head cap screws
• For embedded: (4) 3/8‐16 threaded rods
2x – surface
2x – FHCS
Mount tabs
(surface mt only)
Tools Required for Surface mount or Embedded option:
• Safety glasses
• Hammer drill with masonry bits
• (2) non‐corrosive anchors, max 3/8" diameter (surface mount option)
• 7/32" hex key (surface mount option)
• 1‐1/4" thin wrench for adjusting or removing freestanding glides
• Chemical anchoring adhesive (Hilti HIT RE 500 or equivalent) (embedded option)
• Proper lifting equipment with protective padding (benches weigh between 280lbs‐
345lbs)
4x – threaded rod
(embedded only)
ASSEMBLE WITH CARE! Pangard II Polyester Powder coat is a strong, long‐lasting finish. To protect
this finish during assembly, place unwrapped powder coated parts on packaging foam or other non‐
marring surface. Do not place or slide powder coated parts on concrete or other hard or textured
surface – this will damage the finish causing rust to occur. Use touch‐up paint on any gouges in the
finish caused by assembly tools.
PROCEDURE FOR INSTALLATION:
1. Prepare proper concrete slab as required.
2. Freestanding bench ships with glides installed. Bench can be set in place.
Important!
• Do NOT drag bench across concrete or other rough surfaces.
Do NOT lift the bench by the arms
•
Do NOT lift the backed bench by the back panel.
•
Do NOT drop the bench – lower gently into place.
•
For SURFACE MOUNT bench:
1. Tip bench onto protective material. Leave glides installed.
2. Install surface mount tab on each support, as shown in Fig. 1.
3. Set bench in place and mark hole locations.
4. Move bench and drill holes according to diameter and depth required by surface
mount anchor manufacturer. Clear holes of debris.
5. Set bench back in position and install surface mount anchors per manufacturer's
instructions.
For EMBEDDED bench:
1. Tip bench onto protective material. Remove glides.
2. Install threaded rods into supports as shown in Fig. 2.
3. Support bench and set into position.
4. Trace around threaded rods to mark hole locations.
5. Move bench and drill holes per anchoring epoxy manufacturer's recommendations.
Clear holes of debris.
6. Test fit bench into position, ensuring that the threaded rods are not resting on the
bottom of the drilled holes.
7. Remove bench and fill holes with epoxy.
8. Set bench in position. Wipe away excess epoxy before it begins to cure.
To adjust leveling glides:
1. The stainless steel glides have flat sides to allow a 1‐1/4" thin wrench to adjust.
Date: March 27, 2018
www.landscapeforms.com Ph: 800.521.2546
Page 1 of 2
