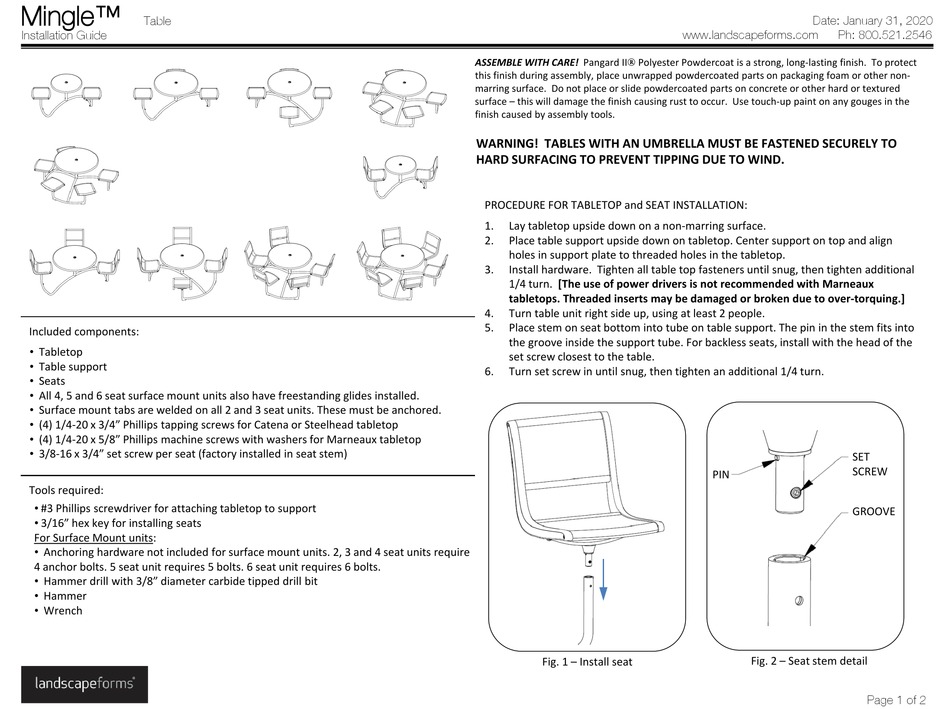

Landscape Forms Mingle Installation Manual

Mingle™
Table
Installation Guide
Included components:
• Tabletop
• Table support
• Seats
• All 4, 5 and 6 seat surface mount units also have freestanding glides installed.
• Surface mount tabs are welded on all 2 and 3 seat units. These must be anchored.
• (4) 1/4-20 x 3/4" Phillips tapping screws for Catena or Steelhead tabletop
• (4) 1/4-20 x 5/8" Phillips machine screws with washers for Marneaux tabletop
• 3/8-16 x 3/4" set screw per seat (factory installed in seat stem)
Tools required:
• #3 Phillips screwdriver for attaching tabletop to support
• 3/16" hex key for installing seats
For Surface Mount units:
• Anchoring hardware not included for surface mount units. 2, 3 and 4 seat units require
4 anchor bolts. 5 seat unit requires 5 bolts. 6 seat unit requires 6 bolts.
• Hammer drill with 3/8" diameter carbide tipped drill bit
• Hammer
• Wrench
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To protect
this finish during assembly, place unwrapped powdercoated parts on packaging foam or other non-
marring surface. Do not place or slide powdercoated parts on concrete or other hard or textured
surface – this will damage the finish causing rust to occur. Use touch-up paint on any gouges in the
finish caused by assembly tools.
WARNING! TABLES WITH AN UMBRELLA MUST BE FASTENED SECURELY TO
HARD SURFACING TO PREVENT TIPPING DUE TO WIND.
PROCEDURE FOR TABLETOP and SEAT INSTALLATION:
1. Lay tabletop upside down on a non-marring surface.
2. Place table support upside down on tabletop. Center support on top and align
holes in support plate to threaded holes in the tabletop.
3. Install hardware. Tighten all table top fasteners until snug, then tighten additional
1/4 turn. [The use of power drivers is not recommended with Marneaux
tabletops. Threaded inserts may be damaged or broken due to over-torquing.]
4. Turn table unit right side up, using at least 2 people.
5. Place stem on seat bottom into tube on table support. The pin in the stem fits into
the groove inside the support tube. For backless seats, install with the head of the
set screw closest to the table.
6. Turn set screw in until snug, then tighten an additional 1/4 turn.
Fig. 1 – Install seat
Date: January 31, 2020
www.landscapeforms.com Ph: 800.521.2546
SET
SCREW
PIN
GROOVE
Fig. 2 – Seat stem detail
Page 1 of 2
