Landscape Forms Carousel Installation Manual

Carousel
standing height table
Installation Guide

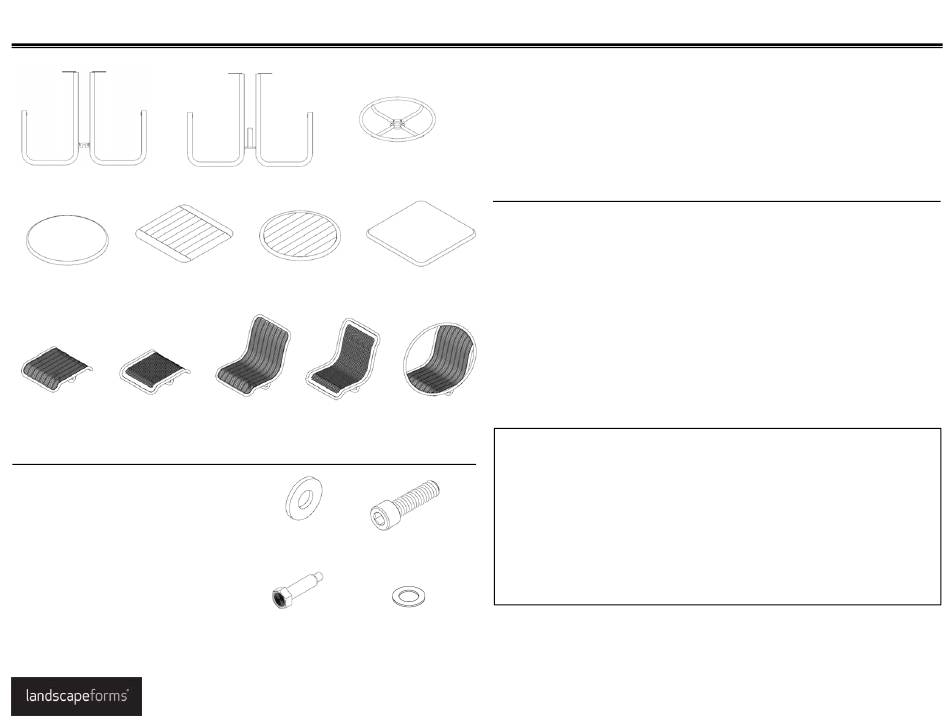

Standing ht SUPPORT 'A' Standing ht SUPPORT 'B'
27" square wood
30" dia tabletop,
Tabletop
Marneaux or Catena
Backless
Backless
Grid seat
perf seat
Included components:
• Support 'A' with surface mount tabs
• Support 'B' with surface mount tabs
• Footrest
• Seats (qty and style depends on order)
• 1 tabletop per unit, with attaching hardware
• (1) ¼‐20 x 2‐1/4" Phillips pan head machine
screw and lock nut
Footrest
30" dia wood 30" square Marneaux
Tabletop Tabletop
Backed Backed
grid seat perf seat
2X – 1/4 washer
2X – 1/4‐20 x 7/8"
Hex head cap screws
4X ‐ 3/8‐16 x 1‐
4X ‐ 3/8 washer
1/2" indented hex
head machine
screw
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting finish. To
protect this finish during assembly, place unwrapped powdercoated parts on packaging foam or
other non‐marring surface. Do not place or slide powdercoated parts on concrete or other hard or
textured surface – this will damage the finish causing rust to occur. Use touch‐up paint on any
gouges in the finish caused by assembly tools.
WARNING! TABLES MUST BE FASTENED SECURELY TO HARD SURFACING TO
PREVENT TIPPING.
Tools required:
• protective padding
• 3/16 hex key
• Anchoring hardware not included for surface mount units. Powers Fasteners Power‐
Bolt® stainless steel 3/8" x 2‐1/4" hex head sleeve anchors are recommended. (4
required)
• Hammer drill with 3/8" diameter carbide tipped drill bit
• Hammer
• Wrench
• 9/16" wrench (for seats)
• 5/32" hex key
• 7/16" wrench (for umbrella hardware)
Hoop
seat
PROCEDURE FOR ASSEMBLING SUPPORTS: See Fig 1 and Fig 2
Note: DO NOT DRAG unit across concrete or other rough surfaces. This could
damage the powdercoat on the bottom of the surface mount tabs.
1. Verify that surface mount tabs are securely fastened to support legs. Tighten if
necessary.
2. Slide support 'A' over support 'B'. Align notch in support 'A' over bar in support
'B'. See Fig. 1.
3. Slide footrest over assembled support legs, aligning the holes in the footrest
with the holes in the support bar.
4. Secure footrest to support legs with (2) hex head cap screws and washers. See
Fig. 2.
Date: June 21, 2018
www.landscapeforms.com Ph: 800.521.2546
Page 1 of 3
