Montana - Coffee Table
Assembly Instructions -
Dimensions
Width - 120cm
Depth - 49.5cm
Height - 41cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
395/7370
408/9474
MADE IN
BRITAIN
Issue 1 - 16/04/15
Advertisement
Related Manuals for Argos Montana 395/7370
Summary of Contents for Argos Montana 395/7370

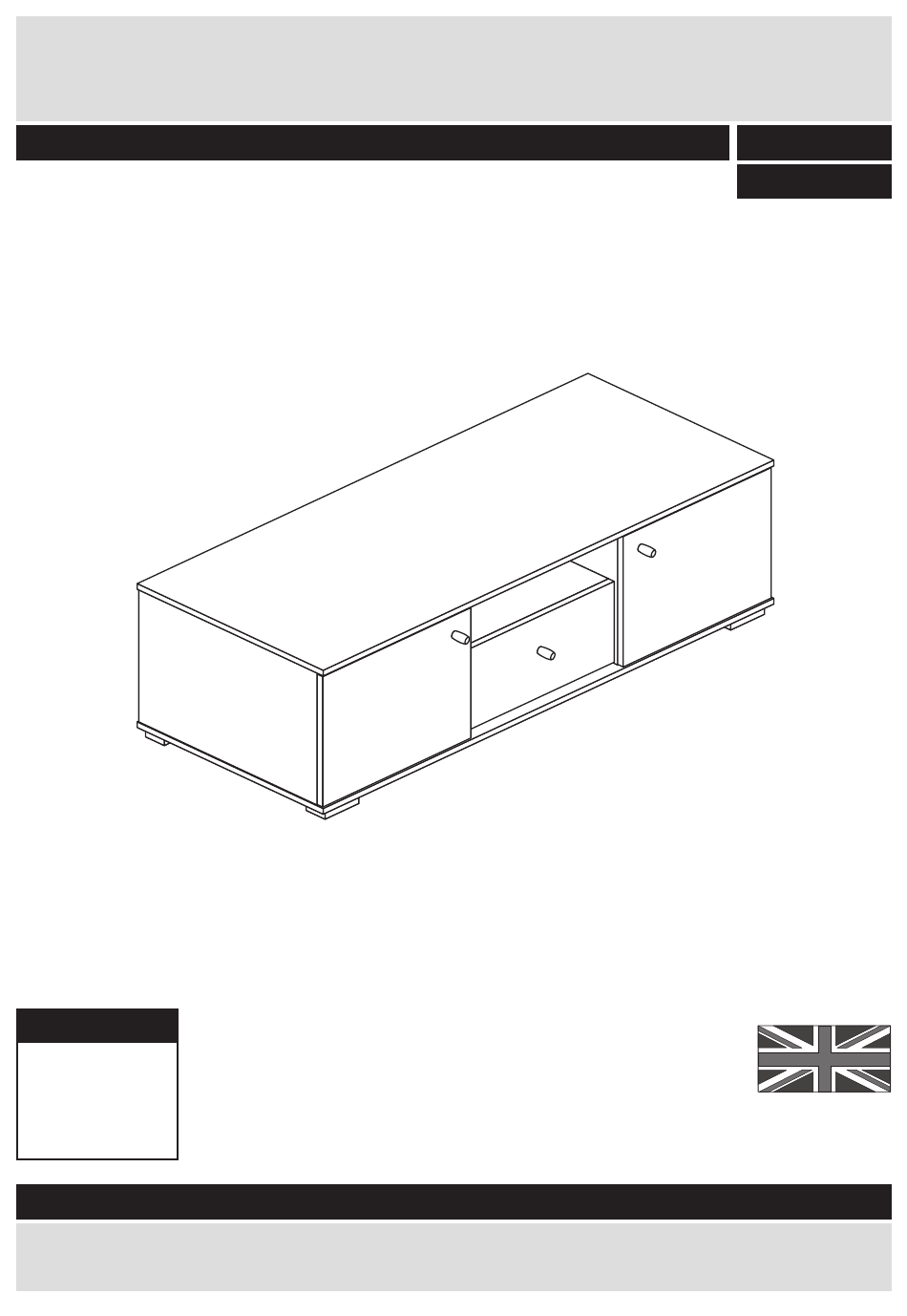

- Page 1 Montana - Coffee Table Assembly Instructions - 395/7370 Please keep for future reference 408/9474 Dimensions Width - 120cm Depth - 49.5cm MADE IN Height - 41cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 1 - 16/04/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 35kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left End Right End Left Divider 4 Right Divider (DF3784) (DF3791) (DF3787) (DF3792)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the drawer front Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left divider Place a runner the left divider shown. Slide back the top of runner and use the 1st hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 8 Assembly Instructions Step 9 Prepare the right divider Place a runner the right divider shown. Slide back the top of runner and use the 1st hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 9 Assembly Instructions Step 10 Prepare the fixed shelf Insert 4 large locking nuts into the fixed shelf Finished front edge Step 11 Fit the fixed shelf to the left divider Push the fixed shelf onto the left divider Use a screwdriver to tighten the 2 large locking nuts fitted to...
- Page 10 Assembly Instructions Step 13 Fit the low back Push the low back onto the left divider Use a screwdriver to tighten the 2 large locking nuts fitted to the low back Step 14 Fit the right divider Push the right divider onto the fixed shelf and low back Use a screwdriver to...
- Page 11 Assembly Instructions Step 16 Fit the 2 large backs Push one of the large backs onto the left divider and the other onto the right divider Use a screwdriver to tighten the 2 large locking nuts fitted to each of the large backs Step 17 Prepare the left end Insert 2 large locking...
- Page 12 Assembly Instructions Step 19 Fit the left and right end panels Push the left end right end onto the large backs Use a screwdriver to tighten the 2 large locking nuts fitted to the large backs Step 20 Prepare the top Screw 8 metal dowels into the top...
- Page 13 Assembly Instructions Step 21 Fit the top Push the top onto the assembly. Use a screwdriver to tighten the 8 large locking nuts fitted to the left end , right end , left divider right divider Step 22 Fit the base Fit the base onto the assembly using 8 screws...
- Page 14 Assembly Instructions Step 23 Fit the feet Fit the feet to the base using screws Carefully stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 24 Fit the drawer Slide both the runners forward and locate the drawer sides between them, lining up...
- Page 15 Assembly Instructions Step 25 Fit the shelf studs For each of the 2 loose shelves , insert 4 shelf studs Step 26 Fit the 2 loose shelves Lower the 2 loose shelves down onto the shelf studs...
- Page 16 Assembly Instructions Step 27 Prepare the 2 doors Push fit 2 hinges into the left door and the right door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
- Page 17 Assembly Instructions Step 28 Fit the 2 doors Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 18 Assembly Instructions Step 29 Fit the handles Attach a handle each door using screws...
- Page 19 Assembly Instructions Step 30 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 20 Step 31 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3145...
