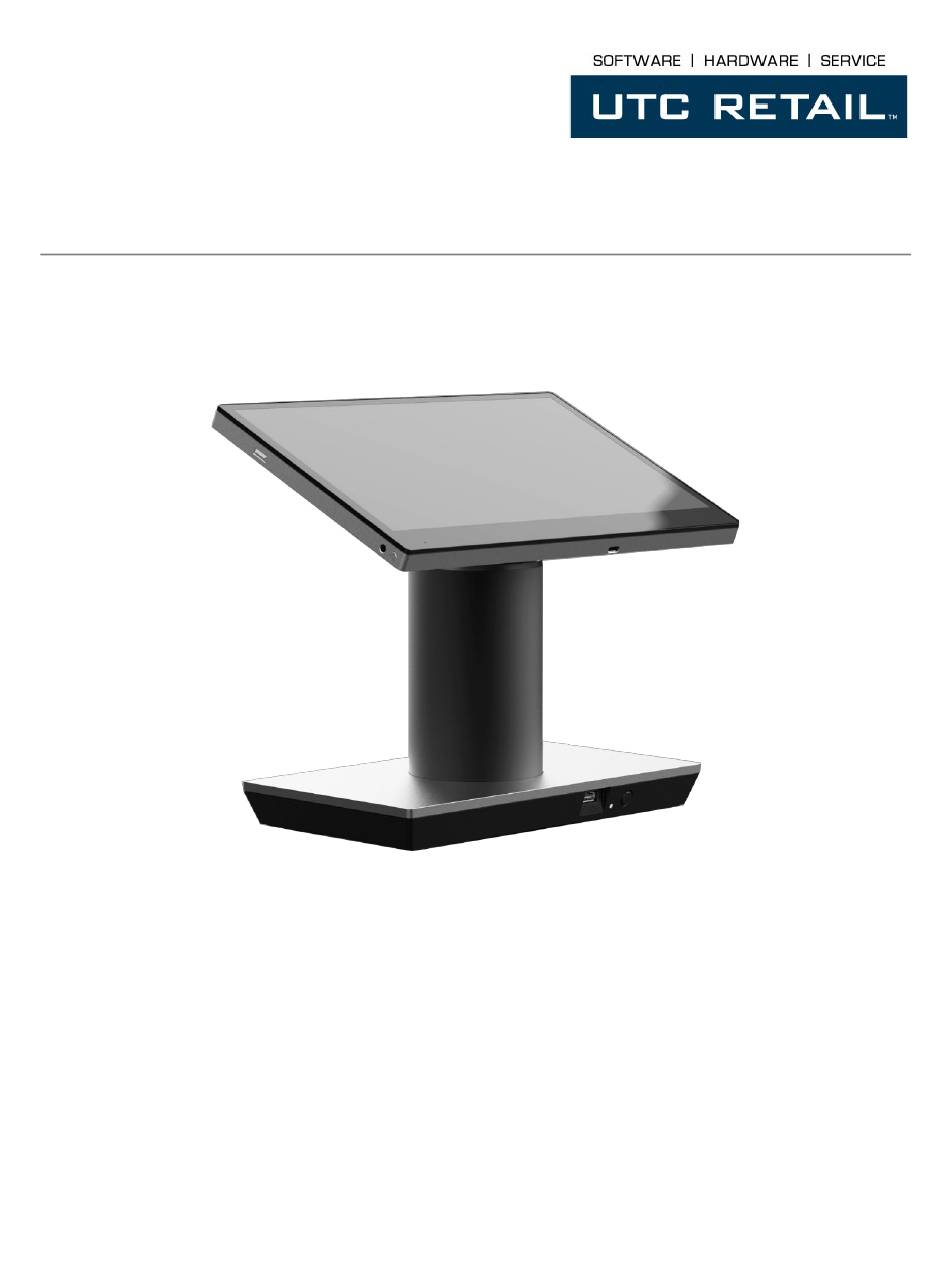

T6100 Convertible Tablet POS System

INSTALLATION GUIDE

Thank you for selecting UTC RETAIL's innovative T6100 Convertible Tablet POS System. Its

unique design provides the flexibility to function as a mobile tablet or a countertop POS system.

This guide is designed to assist you with the installation of your system.

11977004 Rev A

Table of Contents

Need help?

Do you have a question about the T6100 and is the answer not in the manual?

Page 1 T6100 Convertible Tablet POS System INSTALLATION GUIDE Thank you for selecting UTC RETAIL’s innovative T6100 Convertible Tablet POS System. Its unique design provides the flexibility to function as a mobile tablet or a countertop POS system. This guide is designed to assist you with the installation of your system.
Page 2 UTC RETAIL (UTC). WARNING: Access to Internal Components All access to internal components of the T6100 unit is restricted to Authorized Service Personnel only. Opening the case or service by anyone else will automatically void the warranty on this product.
Page 3 T6100. AC Power Cable and Power Adapter The UTC RETAIL T6100 comes with an AC power cord and power adapter. The AC power cord should be inserted into the power adapter. The power adapter can then be connected to the T6100 base stand using the 19V DC IN port shown below (circled in yellow).
Page 4 Powering down the tablet should be performed using the operating system. NOTE: If the tablet is in sleep mode, pressing the power button for ½ second takes it out of sleep mode. 11977004 Rev A © 2021 UTC RETAIL All rights reserved.
Page 5 There is one USB 2.0 port located on the front of the base stand. Projected Capacitive Touch Screen The T6100 has a durable projected capacitive multi-touch screen that has been factory calibrated and will not require any additional driver installation when used with most current operating systems, such as Windows 10.
