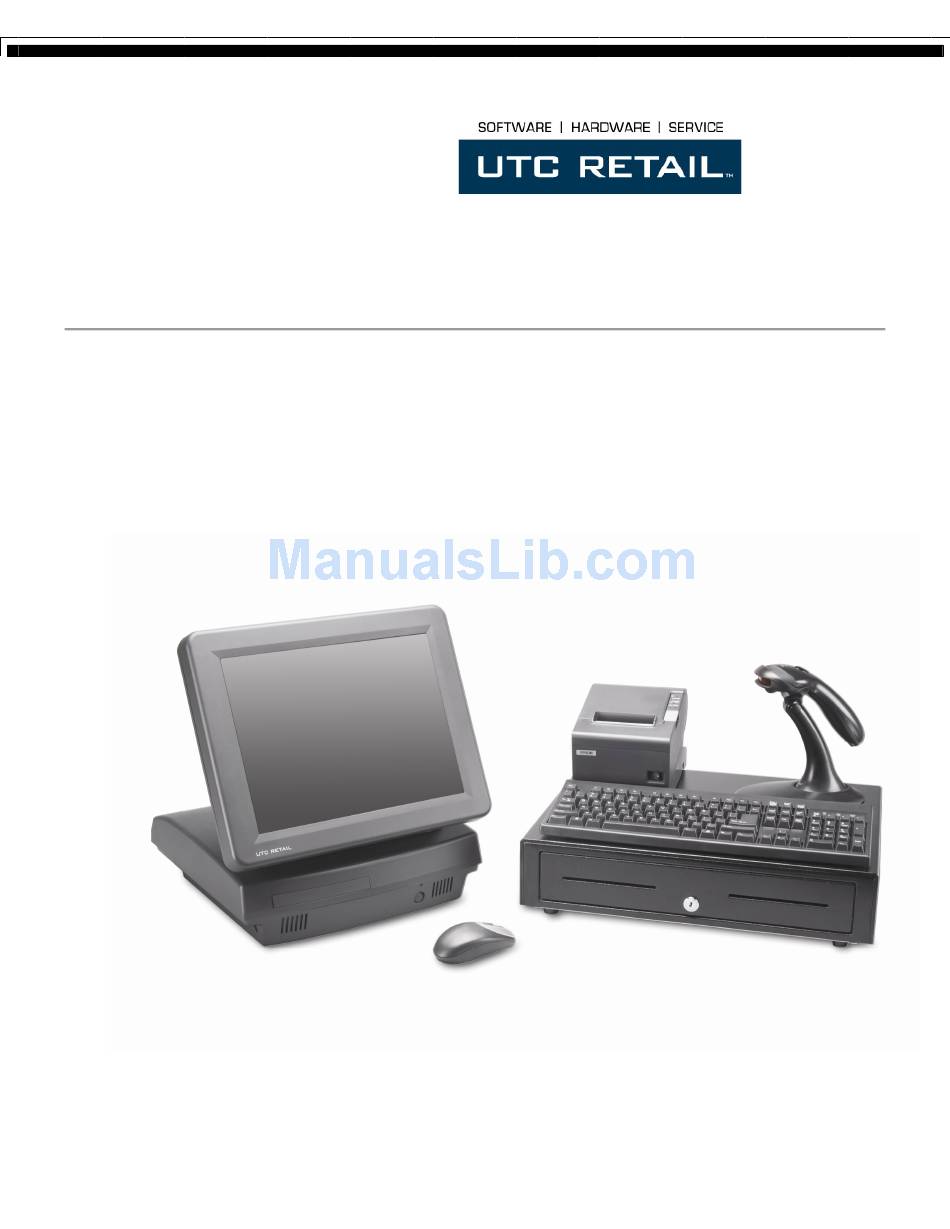

1800 Series POS Bundle
1800 POS Bundle Installation Guide
Thank you for selecting UTC RETAIL's innovative 1800 Series Point of Sale bundle solution!
This guide is designed to help you efficiently assemble the 1800 Series POS Bundle System.
© 2008 UTC RETAIL. All rights reserved.
11692014 Rev C
Page 1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for UTC RETAIL 1800 Series

Summary of Contents for UTC RETAIL 1800 Series

  • Page 1 1800 POS Bundle Installation Guide Thank you for selecting UTC RETAIL’s innovative 1800 Series Point of Sale bundle solution! This guide is designed to help you efficiently assemble the 1800 Series POS Bundle System. © 2008 UTC RETAIL. All rights reserved.

  • Page 2: 1800 Series Pos Bundle System Installation Guide

    Any damage due to not following this warning will void your motherboard's manufacturer warranty. WARNING: Access to Internal Components All access to internal components of the Series 1800 unit is restricted to Authorized Service Personnel only. Opening the case or service by anyone else will automatically void the warranty on this product.

  • Page 3: Table Of Contents

    1800 Series POS Bundle System Installation Guide ...2 Product Information ...4 Un-boxing the System...5 Installation...5 Powering On Your 1800 Series POS Bundle System ...11 Troubleshooting Procedures...12 © 2008 UTC RETAIL. All rights reserved. 11692014 Rev C Page 3 of 12...

  • Page 4: Product Information

    Product Information You will find the following components inside the 1800 Series POS Bundle System Box: • Safety Sheet • 1800 Series POS All-in-One unit (Touch Screen PC / logic device) • A/C power cord for logic device • Cash drawer •...

  • Page 5: Un-Boxing The System

    Un-boxing the System Open the point of sale box and remove the contents. Remove all packing materials. Installation Orient the cash drawer on its back side on your cash wrap (counter). Remove the keys. Locate the cash drawer cable package, labeled ‘APG cash drawer 320 Multipro cable kit’. Connect the end with the larger modular plug into the jack on the base of the cash drawer.
  • Page 6 Connect the printer USB cable from the printer to a USB port on the rear of the PC. Connect the power cable from the printer power supply to the connector on the printer. Connect the AC cable to the printer power supply and then to a wall outlet or the optional Power Conditioner.
  • Page 7 PC. Connect the other end into the jack on the barcode scanner handle. Figure 5: Rear View of PC, Scanner connection Connect the optional MSR (Magnetic Stripe Reader) assembly to the 1800 Series unit as follows: Figure 6: Back View of 1800 Unit and MSR Assembly 1.
  • Page 8 Connect the optional Payment Terminal (Pin Pad or Signature Capture device) to a Serial Port on the back of the PC. For instructions on the Signature Capture device cable connections, refer to the install guide included with the terminal. Plug the AC power adapter into a wall outlet or the optional Power Conditioner.
  • Page 9 Figure 8: Rear View of 1800 Unit 1. Remove the cover panel The 1800 Series main unit ships with a cover panel over the Customer Display attachment position. Lift the bottom edge of the cover panel, and then pull the panel straight up to expose the connecting cable.
  • Page 10 11. Connect the optional Inventory Scanner to a serial port on the back of the PC. Then plug the power supply into a wall outlet or the optional Power Conditioner. Figure 9: Rear View of PC, Inventory Scanner connection 12. Connect a site provided network cable into the network jack on the back of the PC. Figure 10: Rear View of PC, Network cable connection ©...

  • Page 11: Powering On Your 1800 Series Pos Bundle System

    To activate the printer, turn on the printer rocker switch located on the front of the printer. You have completed the installation of UTC RETAIL’s 1800 Series Bundled Point of Sale System. If you experience problems with any of the components of the 1800 Series Bundled POS System, see the “Troubleshooting Procedures”...

  • Page 12: Troubleshooting Procedures

    Troubleshooting Procedures The following table presents symptoms and solutions for problems potentially encountered when installing the 1800 Series Bundled POS System components. Symptom Touch screen accuracy is off The printer does not have power. The printer has power but the system does not boot to Windows.
