Saxby Lighting IkonPRO RGB LED Kit Instruction Manual

RF Control
Push the plug into the mains socket and switch on.
Slide the battery cover off the RF controller and fit the battery
observing the correct polarity markings.
Press the On / Off button on the RF controller. The red LED should
light at the top, and the signal LED should light on the power supply.
Push the RGB button to switch between the different colours. There
are seven individual colours and then two variable modes.
The fixed colour sequence is yellow, white, red, green, blue, purple
and light blue.
There are two variable modes. One switches between all seven
colours and the other fades between them.
The sequence will repeat from the start.
Technical data
Supply
220-240V~, 50Hz Output: 12V DC 15W Max. Constant voltage
Voltage:
Bulb 59136----10 x 0.75W LED module, RGB
Type:
59138----10 x 1.5W LED module, RGB
The LED module of this luminaire is not replaceable, when the LED module reaches its end of life the whole
luminaire shall be replaced
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Class III product - designed to be supplied from a SELV
(Separated or Safety Extra-Low Voltage) power source.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is suitable for dimming with remote control.
This product is rated at IP67.
67
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
To prolong the life and condition of the product, it is recommended that periodically it is cleaned using a
soft cloth followed by the application of a light coating of oil, such as WD40.
Do not clean the units with a pressure washer.
Live Voltages may be present in the transformer even when turned off or when completely disconnected.
For your safety, always switch off the supply before maintaining the system.
V6 26/11/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Decrease Increase
Brightness Brightness
On / Off Function Control
RGB
Button Button
Instruction manual

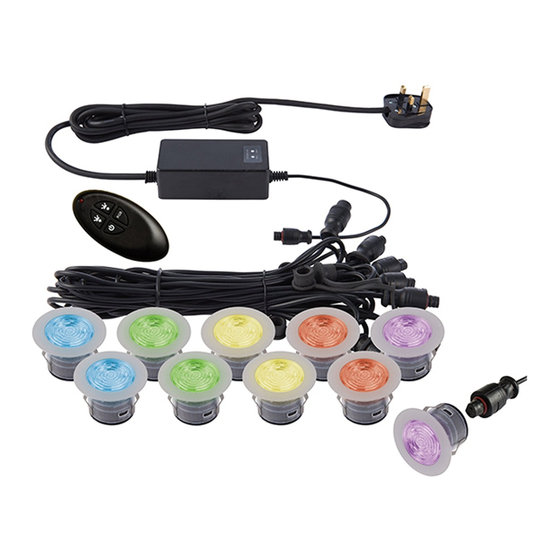

IkonPRO RGB LED Kit
59136, 59138
www.saxbylighting.com
