Saxby Lighting 99562 Instruction Manual

Saxby Lighting 99562 Instruction Manual

Led kit

Advertisement

Quick Links

Connectors
make sure that arrows molded on
connectors facing each other.
Technical data
Supply
220-240V~, 50Hz
Voltage:
Bulb
75530-10 x 0.45W LED module (SMD), 6500K
Type:
94422-10 x 0.45W LED module (SMD), Blue
99562-10 x 0.45W LED module (SMD), 3000K
Except the 94422, these products contain a light source of energy efficiency class G.
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Class III product - designed to be supplied from a SELV
(Separated or Safety Extra-Low Voltage) power source.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
To prolong the life and condition of the product, it is recommended that periodically it is cleaned using a
soft cloth followed by the application of a light coating of oil, such as WD40.
Do not clean the units with a pressure washer.
For further information, please visit https://www.lighting-info.co.uk/75530
V3 16/12/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Check that...
You have correctly identified the wires.
The connections are tight.
BS Plug-in LED driver Rico Electronic
Model: RKP-UK1200500DP-1
Input: 100-240V~, 50/60 Hz
Output: CV 12V, 500mA 6W max IP20 TUV CE approved
Replaceable control gear by a
professional
Instruction manual

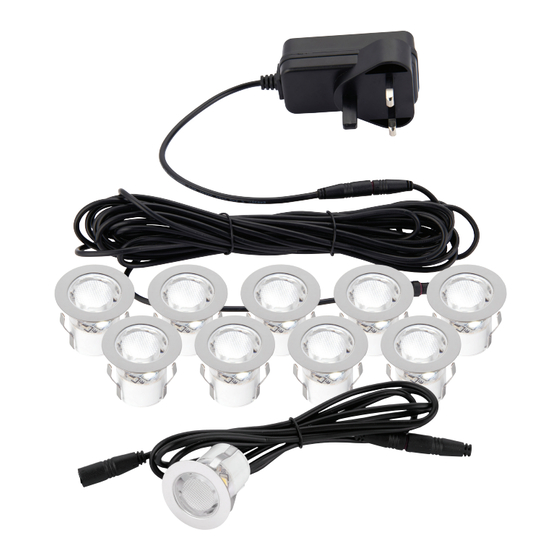

Kios 2 LED Kit
75530, 94422, 99562
www.saxbylighting.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99562 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Saxby Lighting 99562

  • Page 1 94422-10 x 0.45W LED module (SMD), Blue Input: 100-240V~, 50/60 Hz 99562-10 x 0.45W LED module (SMD), 3000K Output: CV 12V, 500mA 6W max IP20 TUV CE approved Except the 94422, these products contain a light source of energy efficiency class G.
  • Page 2 Thank you for purchasing this light fitting. Please read the instruction carefully before use to ensure safe and satisfactory Installation operation of this product. Please retain these instruction for future reference. Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully note the position of each set of wires.

This manual is also suitable for:

7553094422Kios 2
