Instruction Leafl et IL032043EN

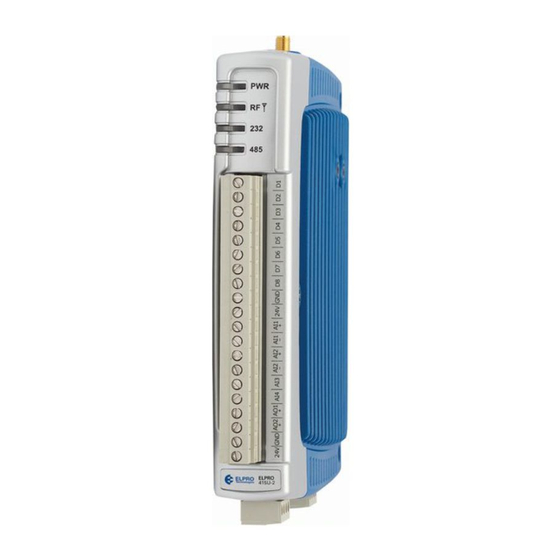

415U-2 wireless mesh networking I/O and gateway
installation guide

Statutory requirements

FCC: This device complies with
Part 15.247 of the FCC Rules.
Operation is subject to the
following two conditions:
This device may not cause
•
harmful interference.
This device must accept any
•
interference received, including
interference that may cause
undesired operation.
FCC: Unlicensed operation limits
the radio power. High gain aerials
may only be used to compensate
for cable losses.
WARNING - EXPLOSION
Do not disconnect the device while the
circuit is live unless the area is known
to be non-hazardous.
The 415U-2 module ships from
the factory in configuration mode.
The radio locale, frequency, and RF
power need to be configured using
the embedded web pages before
use.
Effective April 2015

Antenna installation

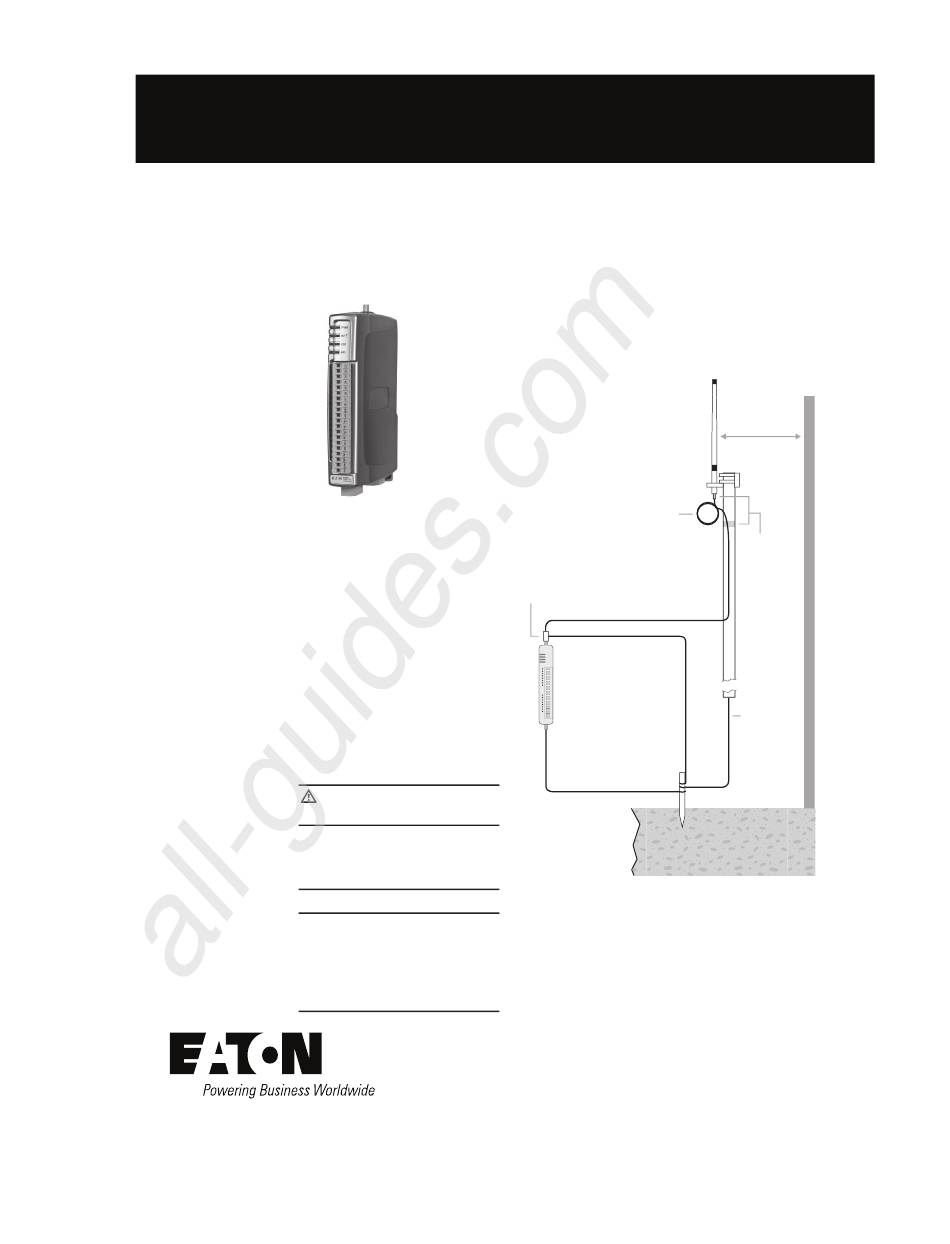

Use Figure 1 as a guide for installing an antenna and attaching it
to the module.
Figure 1. Antenna installation
Wavelength:
360MHz = 32.7" (83cm)
512MHz = 22.8" (58cm)
Surge Arrestor
(recommended)
HAZARD
NOTE
Connecting to the module for confi guration
The default settings for the 415U-2 are as follows:
IP Address: 192.168.0.1XX, where "XX" is the last two digits
•
of the serial number shown on the printed label on the side of
the module
Subnet Mask: 255.255.255.0
•
Default Gateway: 192.168.0.1
•
Username: user
•
Password: user
•
1. Connect a straight-through Ethernet cable between the
module's Ethernet port and a PC.
2. Open Internet Explorer on the PC.
3. Type "http://" followed by the IP address of the module and
press Enter.
Antenna
*
Stress
Relief
Loop
Coaxial Cable
GND
415U-2
GND
at least 11 AWG (4 mm 2 )
Earth Stake
Provide good ground
connection to mast,
module, and surge
arrestor.
If ground conditions
are poor, use more
than one stake.
1 Wavelength
(minimum)
Weatherproof
Connections
(recommended:
3M ™ 23 self-
bonding tape)
Mast
Earth Conductor
at least 5 AWG
(16 mm 2 )
For maximum
*
range, install
above local
obstructions.
