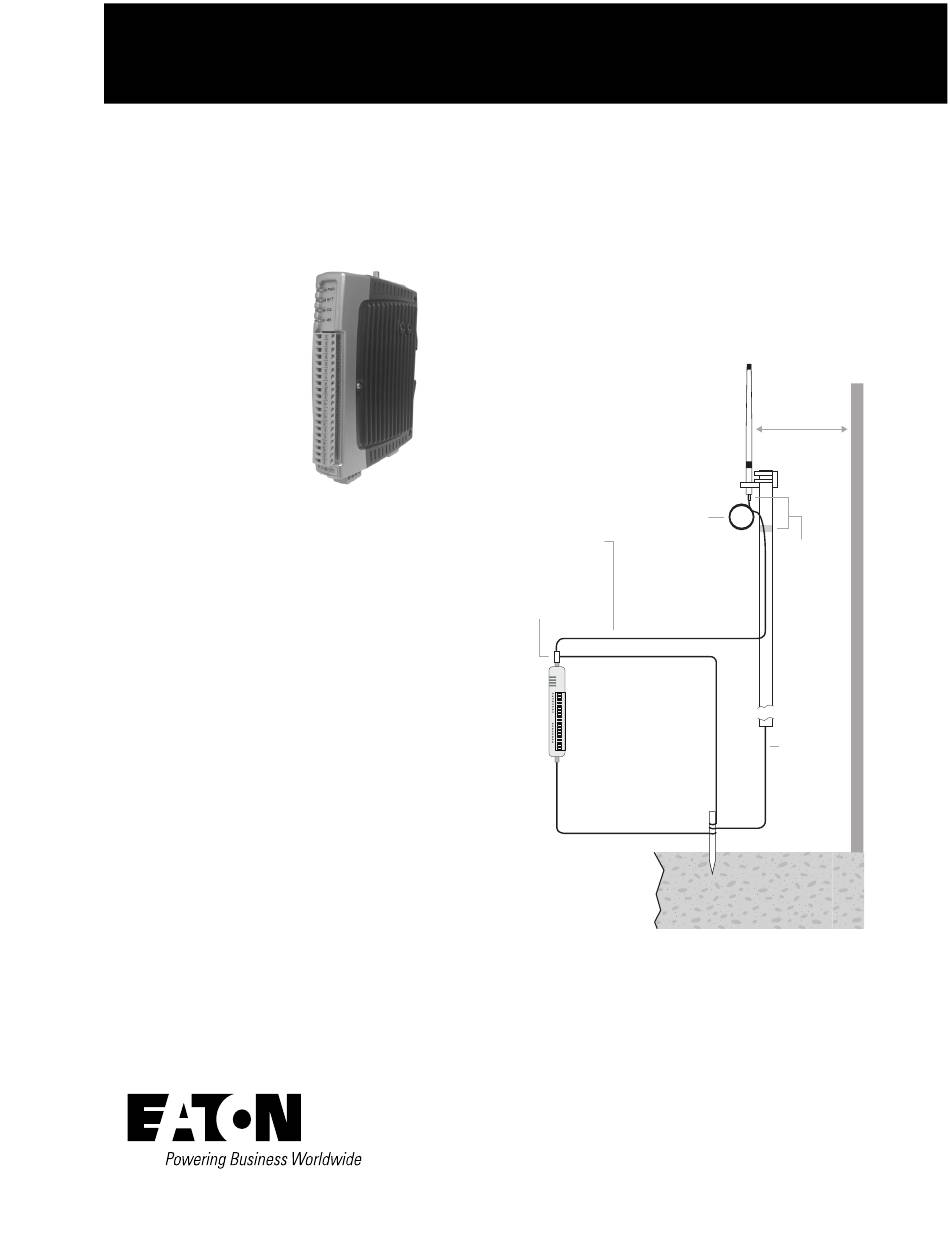

Eaton 415U-2-C Instruction Leaflet

Instruction Leaflet IL032054EN

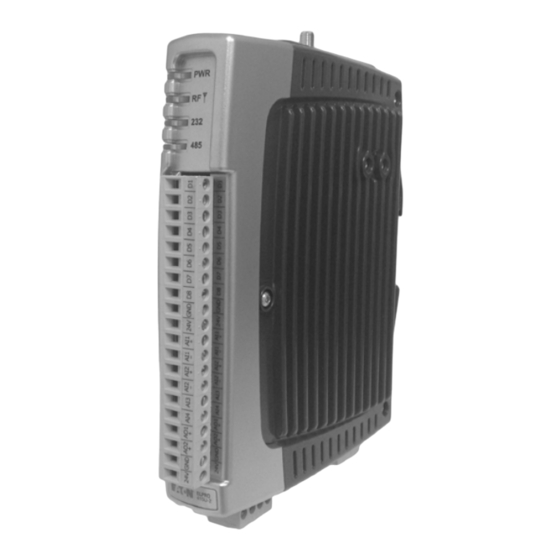

415U-2-C wireless mesh networking I/O and
gateway installation guide
Effective November 2017

Antenna installation

When selecting an antenna, consider radio proximity.
Use Figure 1 as a guide for installing an antenna and attaching it
to the 415U-2-C.
Figure 1. Antenna installation
Wavelength:
340MHz = 35" (88cm)
400MHz = 30" (75cm)
480MHz = 25" (63cm)
Connect Coax to
building earth in
accordance with
Stress
6.2 g) and 6.2 i) of
Relief
IEC60728-11:2005
Loop
Surge Arrestor
(recommended)
Coaxial Cable
GND
415U-2
GND
at least 11 AWG (4 mm 2 )
Provide good ground
connection to mast,
module, and surge
arrestor.
If ground conditions
are poor, use more
than one stake.

Connecting to the module for configuration

Download and install configuration application "CConfig"
•
from EATON website www.eaton.com/wireless
Connect to PC using supplied USB cable
•
Connect to the device at 192.168.111.1
•
Or 1.1.1.1 (firmware v2.4)
The PC will be automatically assigned an IP address via DHCP
•
Username: user
Password: user
Antenna 1 Wavelength
*
(minimum)
Weatherproof
Connections
(recommended:
3M ™ 23 self-
bonding tape)
Mast
Earth Conductor
at least 5 AWG
(16 mm 2 )
For maximum
*
range, install
above local
obstructions.
Earth Stake
