Aries 25201 Installation Manual

INSTALLATION MANUAL

Parts List

1 Rear bumper
2 Mounting bracket, universal
8 Hex bolt, M10 x 40mm
16 Flat washer, M10
8 Lock washer, M10
8 Hex nut, M10
4 Hex bolt, M12
8 Flat washer, M12
4 Lock washer, M12
4 Hex nut, M12

Tools Required

Ratchet Level
Torque wrench Extension
Wrench, 16mm Torx bit, T27
Wrench, 18mm Drill
Socket, 16mm Drill bit, 3/16"
Socket, 18mm Drill bit, 1/2"
Paint marker

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Level of Difficulty
Easy

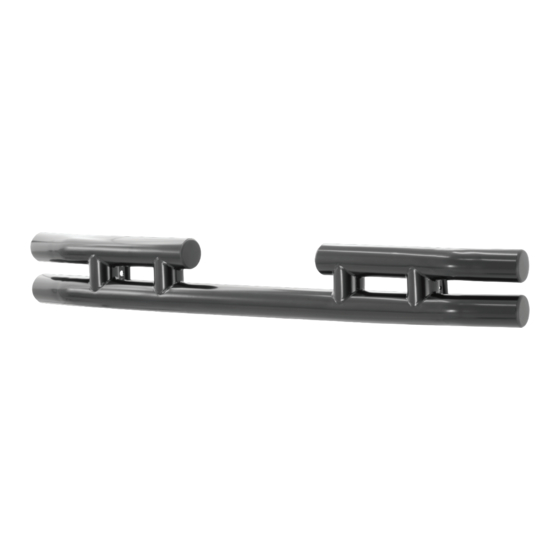

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
