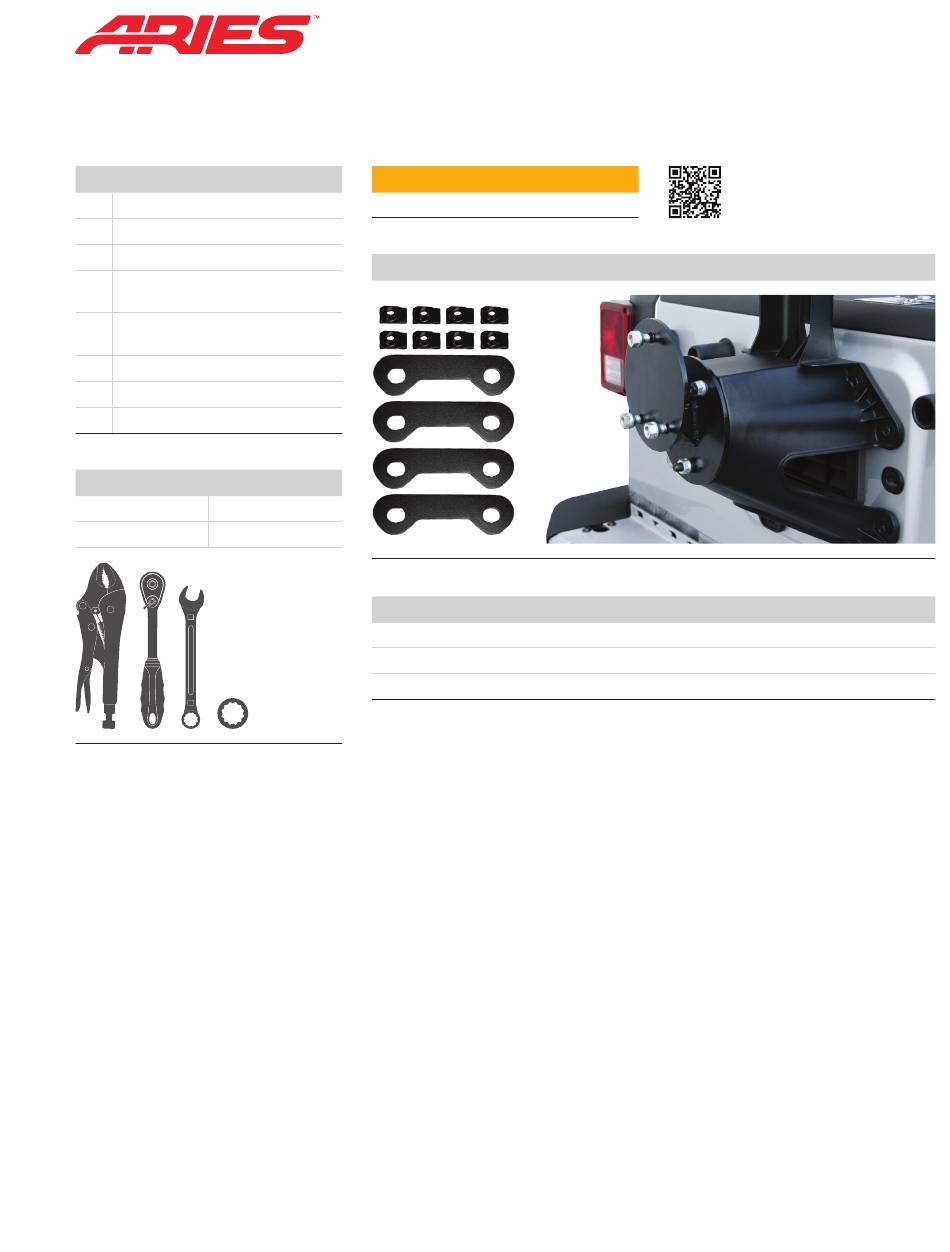

INSTALLATION MANUAL
Parts List
1

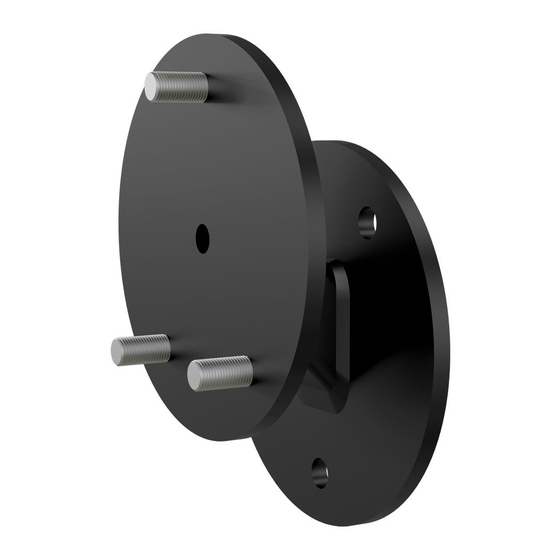

Spare tire extension bracket
4
Reinforcement bracket
8
Clip nut, 8mm
8
Hex head cap screw,
M8 x 1.25" - 40, CL8.8
2
Hex head cap screw,
M8 x 1.25" - 60, CL8.8
8
Flat washer, M8
8
Lock washer, M8
3
Nylock nut, 1/2" - 20, grade 5
Tools Required
Ratchet
Vice grips
Socket, 13mm
Wrench, 19mm
Level of Difficulty
Moderate
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
PAGE 1 • 25630AB-INS-RB • 800.798.0813 • NEED ASSISTANCE?
25630AB
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 25630AB
Summary of Contents for Aries 25630AB
- Page 1 Before you begin installation, read all instructions thoroughly. Proper tools will improve the quality of installation and reduce the time required. For black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • 25630AB-INS-RB • 800.798.0813 • NEED ASSISTANCE?
- Page 2 With the bolts free, lift the carrier off of the vehicle and set to the side. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 25630AB-INS-RB • PAGE 2...
- Page 3 Have an assistant lift the tire carrier back into position over the reinforcement bracket and loosely install the M8 flat washer, lock washer and 40mm hex bolt. Repeat this for all four support brackets • ARIESAUTOMOTIVE.COM PAGE 3 • 25630AB-INS-RB • 800.798.0813 • NEED ASSISTANCE?
- Page 4 Place the spare tire extension bracket over the three factory lugs and secure it with the supplied 1/2" - 20 nylock nuts. Ensure all the hardware is completely tight before reinstalling the spare tire. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 25630AB-INS-RB • PAGE 4...
- Page 5 Finalize the install by confirming all hardware and lug nuts are completely tight. Congratulations on the installation of the ARIES tire relocation bracket. • ARIESAUTOMOTIVE.COM PAGE 5 • 25630AB-INS-RB • 800.798.0813 • NEED ASSISTANCE?
