Adhesive mounting
Applies to VIBCODE studs with bonding base.
Required tools and resources
– Hand-held drill and drill bit (3.5 mm)
– Angle grinder and rasp
– Compressed air for cleaning out the hole.
– Solvent for degreasing
– 2-Component adhesive (WEICON HB 300,..)
Switch off the machine and secure it against a
restart. Do not switch on the machine until the
adhesive has hardened (approx. 24 hours).
Select the point of installation
• The point of installation must have direct
connection to the bearing carrier if the sensor
should measure shock pulse signals.
• Allow sufficient space for applying the adhesive
with a wooden spatula.

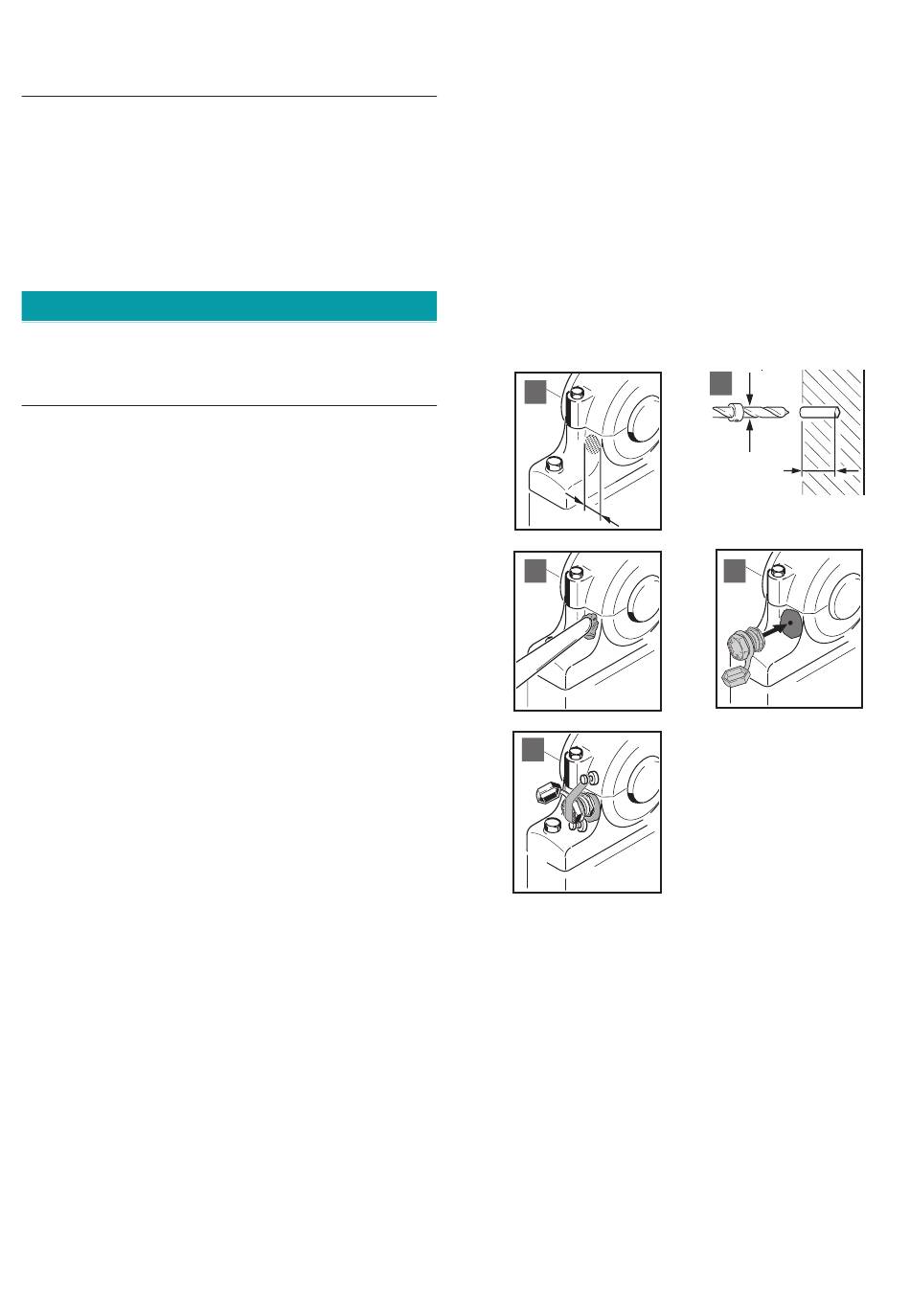

Prepare bonding location
• Grind down existing coats to the bare metal (Ø
> 30 mm, G).
• If necessary, grind down the location (G).
• Sand down the point of installation with a rasp
and file several grooves in a diamond pattern
for greater adhesive strength (G).
Optionally, and only if drilling is possible:
• Drill hole for centering pin: 3.5 mm / 5 mm deep
(H). Remove the centering pin from the stud if
drilling is not possible.
• Blow out the hole.
• Clean the contact surfaces of the stud and the
machine with solvent.
• Allow contact surfaces to dry.
Apply adhesive
• Prepare the adhesive for use.
• Apply the adhesive with a wooden spatula
evenly to the base of the stud and the bonding
location (approx. 1 mm thick, I).
Note
Affix VIBCODE stud
• Affix the protective cap to the stud and, if avail-
able, insert the code ring into the stud.
• Press the stud gently against the bonding loca-
tion and turn it to evenly distribute the adhe-
sive. If applicable, screw in the centering pin (J).
• Do not remove excess adhesive. If necessary,
apply additional adhesive around the bonding
location for greater stability.
• If necessary, use adhesive tape to hold the stud
in place during hardening (K).
G
30
I
K
H
3.5
5
Dimensions in mm
J
9
