Function
VIBCODE is a vibration sensor system that uses
coded measurement studs for certain identifica-
tion of measurement locations on the machine.
The system consists of the VIBCODE sensor and
the VIBCODE measurement stud.

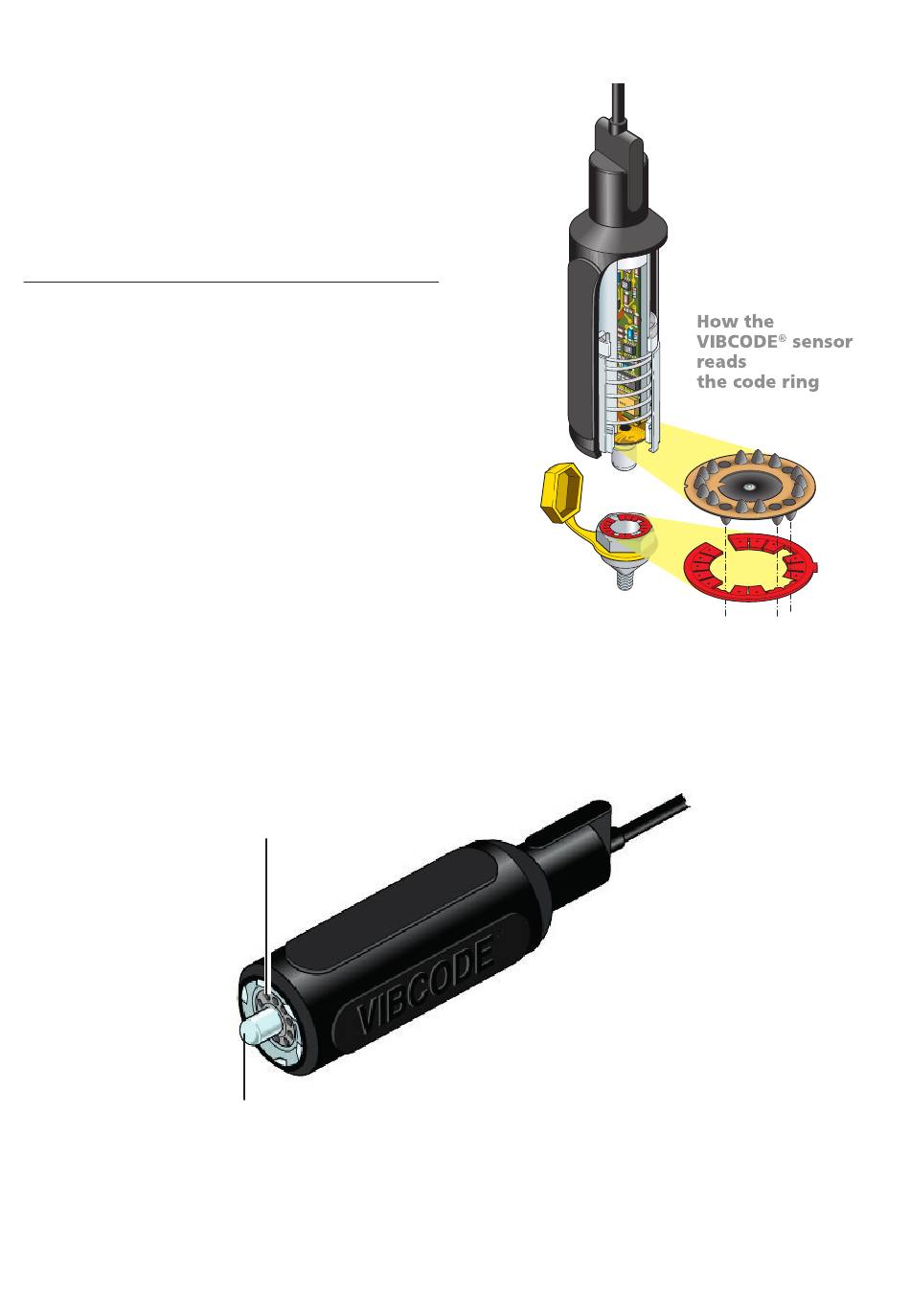

VIBCODE sensor
The VIBCODE sensor contains a code ring sensor
and a vibration sensor. The sensors locks onto the
VIBCODE stud via bayonet mount in optimum po-
sition and with consistent pressure. Trend readings
are taken with perfect repeatability regardless of
operator qualification and training. The code ring
sensor reads the tooth pattern of the plastic ring
in the measurement stud to determine its location
so that the correct types of measurement can be
taken. Mixups, erroneous trend deviations and
time-consuming repeat measurements are all
eliminated once and for all.
Code ring sensor
Vibration sensor
