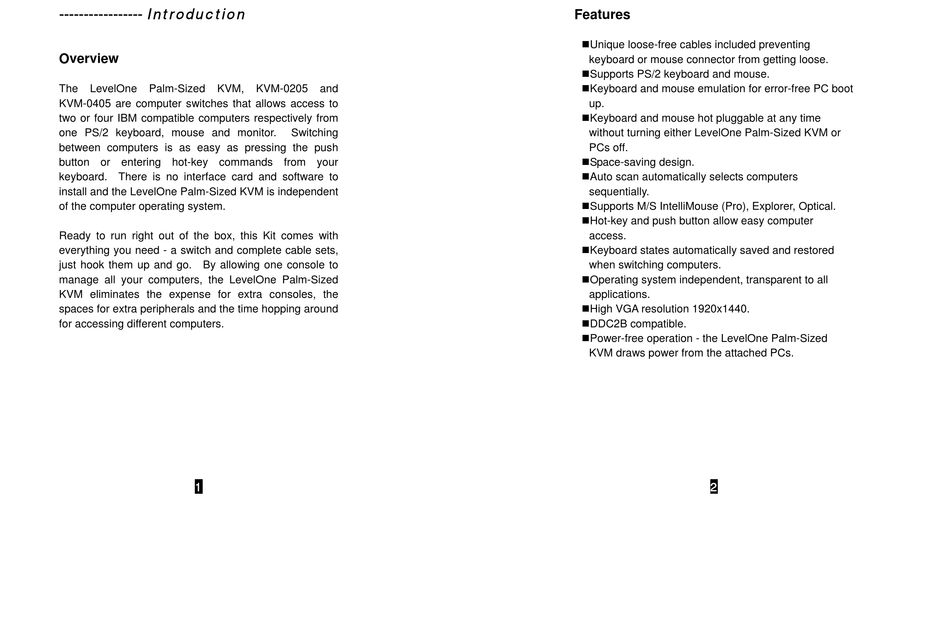

----------------- Introduction

Overview

The LevelOne Palm-Sized KVM,
KVM-0405 are computer switches that allows access to
two or four IBM compatible computers respectively from
one PS/2 keyboard, mouse and monitor.
between computers is as easy as pressing the push
button or entering hot-key commands from your
keyboard. There is no interface card and software to
install and the LevelOne Palm-Sized KVM is independent
of the computer operating system.
Ready to run right out of the box, this Kit comes with
everything you need - a switch and complete cable sets,
just hook them up and go. By allowing one console to
manage all your computers, the LevelOne Palm-Sized
KVM eliminates the expense for extra consoles, the
spaces for extra peripherals and the time hopping around
for accessing different computers.
1
KVM-0205 and
Switching

Features

!Unique loose-free cables included preventing
keyboard or mouse connector from getting loose.
!Supports PS/2 keyboard and mouse.
!Keyboard and mouse emulation for error-free PC boot
up.
!Keyboard and mouse hot pluggable at any time
without turning either LevelOne Palm-Sized KVM or
PCs off.
!Space-saving design.
!Auto scan automatically selects computers
sequentially.
!Supports M/S IntelliMouse (Pro), Explorer, Optical.
!Hot-key and push button allow easy computer
access.
!Keyboard states automatically saved and restored
when switching computers.
!Operating system independent, transparent to all
applications.
!High VGA resolution 1920x1440.
!DDC2B compatible.
!Power-free operation - the LevelOne Palm-Sized
KVM draws power from the attached PCs.
2
