Summary of Contents for LevelOne KVM-0260
-

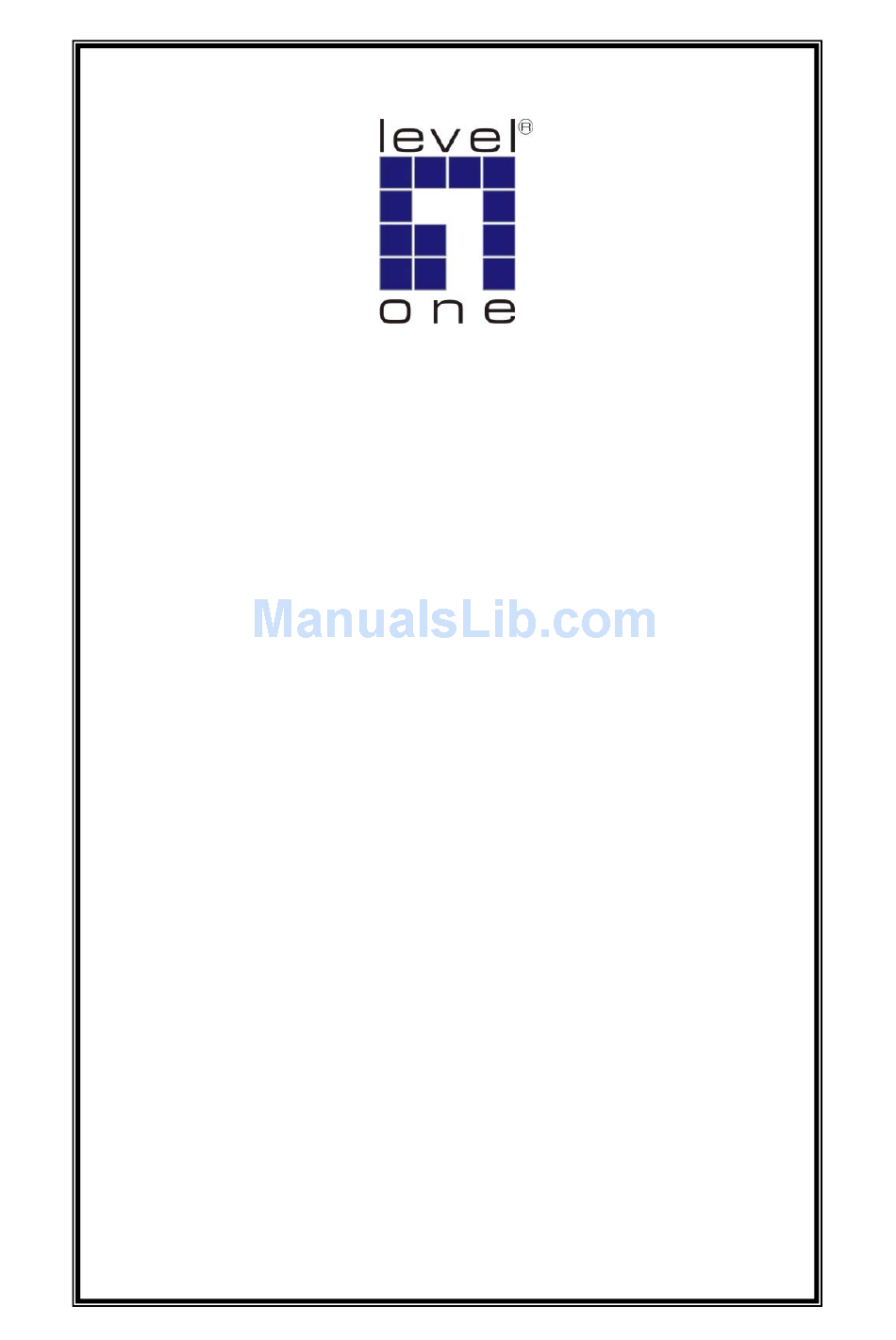

Page 1: User Manual
LevelOne User Manual KVM-0260 2-Port DVI USB KVM Switch Ver. 1.0.0-0803... -
Page 2: Package Contents
Plug the keyboard in before plugging in the mouse. When using a wireless composite keyboard and mouse, its USB cable must plug into the KVM-0260’s keyboard port for the Hotkeys to function. The mouse connector (black) is actually a USB port, and can accept any USB compatible peripheral. -
Page 3: Operation
2. Plug the keyboard, monitor, mouse, microphone, and speaker connectors of the KVM cables into their respective ports on the computers you are installing. 3. Turn on the power to the computers. Note: By default the KVM links to the first computer that is turned on. Operation Hotkey Port Selection All hotkey port switches begin with tapping the Scroll Lock key twice. -
Page 4: Port Selection
Port Selection Select port by tapping the Scroll Lock key twice. The tables below describe the actions that each hotkey operation performs. The default hotkey invocation key is the Scroll Lock key, but you can choose the Ctrl key instead. Do not switch ports while a USB device (printer, external drive, etc.) is in process. -
Page 5: Specifications
Specifications Function KVM-0260 Computer Connections Port Selection Hotkey Keyboard 1 x USB Type A Female (Purple) Video 1 x DVI Male (Black) Console Mouse 1 x USB Type A Female (Black) Ports Speaker 1 x Mini Stereo Jack Female (Green) - Page 6 PC-MAC Keyboard Mapping The PC Compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. When using key combinations, press and release the first key (Ctrl or Alt), then press and release the activation key. PS/2 Mac Keyboard [Shift]...
-
Page 7: Troubleshooting
Troubleshooting: New Keyboard Functions Not Working? You plugged in a new keyboard while the computers were running, so the operating system failed to initialize the new keyboard functions. Restart the computers so that the operating system can recognize the new functions. Why does the KVM auto-switch to a computer that is turned off? The KVM recognizes computers based on power from USB.
