LevelOne KVM-0223 User Manual

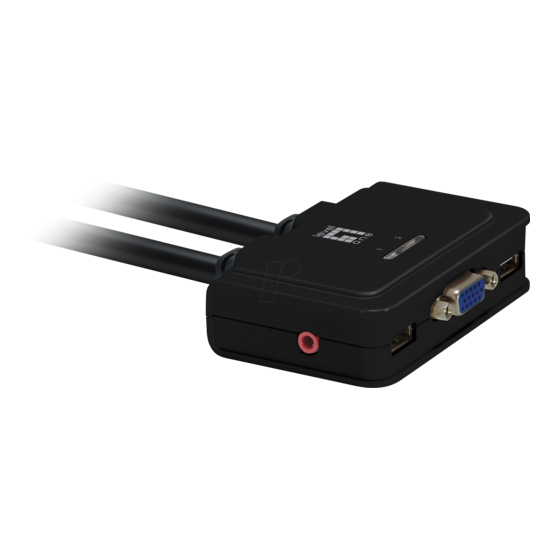

2-port usb cable kvm switch
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
LevelOne

User Manual

KVM-0223
2-Port USB Cable KVM Switch
Ver. 1.0.0-0803

Advertisement

loading

Related Manuals for LevelOne KVM-0223

Summary of Contents for LevelOne KVM-0223

  • Page 1: User Manual

    LevelOne User Manual KVM-0223 2-Port USB Cable KVM Switch Ver. 1.0.0-0803...

  • Page 2: Package Contents

    English Package Contents 1. KVM-0223 2. User Manual 3. Quick Installation Guide Requirements Console A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation A USB Keyboard A USB Mouse...

  • Page 3: Installation

    Plug the USB, video, and speaker connectors of the attached KVM cables into their respective ports on the computers you are installing. Turn on the power to the computers. Note: The KVM-0223 ’ s Power On default is to link to the first computer you turn on. Operation Hotkey Port Selection All hotkey port switches begin with tapping the Scroll Lock key twice.
  • Page 4 Invoking Hotkey Mode: All Hotkey operations begin by invoking Hotkey Mode. Invoking Hotkey Mode takes three steps. Press and hold down the Num Lock key. Press and release the minus [-] key. Release the Num Lock key. Hotkey Summary Table Combination Function [Num Lock]...

  • Page 5: Troubleshooting

    Video Resolution and/or Problems Refresh rate set too Select a lower resolution and/or bandwidth. high. Specifications Function KVM-0223 Computer Connections Port Selection Hotkey Keyboard 1 x USB Type A Female (Black) Console Video 1 x HDB-15 Female (Blue)

  • Page 6: Keyboard Emulation Mapping

    Keyboard Emulation Mapping The USB 101/104 key keyboard can emulate the functions of the Sun or Mac keyboard. The corresponding functions are shown in the table below. Sun Keyboard Note: When using [Ctrl] combinations, press and release the Ctrl key, then press and release the activation key.
  • Page 7 Mac Keyboard Note: When using key combinations, press and release the first key, then press and release the second key. PS/2 Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Win] [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt] L Alt/Option [Prt_Sc] [Scroll Lock] [Desktop Menu] [Enter]...
