NRS Healthcare MOWBRAY LITE PLUS User Instructions

N53909
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1. INTENDED USE

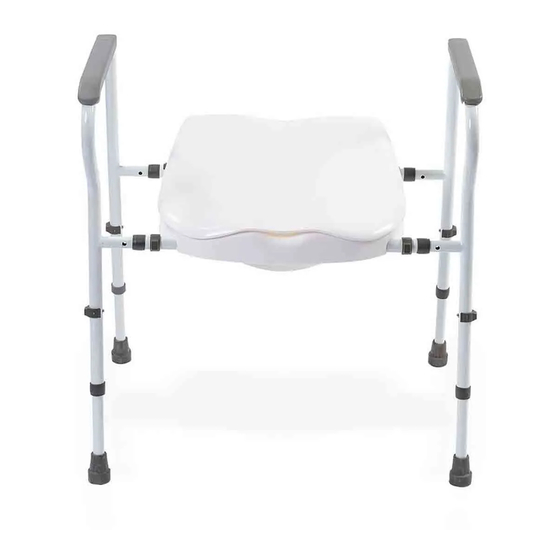

The Mowbray Lite Plus is designed to assist users when lowering onto and rising from the toilet. The frame
provides a stable support when getting on and off the toilet and the moulded seat off ers a comfortable
seating position. The seat lid adds discreet style and helps to improve cleanliness and hygiene.
2. SAFETY
WARNING: The maximum user weight must not be
more than 190Kg (30st).
DO NOT: attempt to stand or climb on the product.
MAKE SURE: all legs are set at equal height to
avoid rocking.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
Fig 1: Contents
1. Toilet Seat & Lid x 1
2. LH Frame x 1
3. RH Frame x 1
4. Crossbar x 2
5. 'E-clip' x 8
4. ASSEMBLY/INSTALLATION
4.1 To fi t the crossbars:
Push the crossbars onto the tube stubs on the LH &
RH frames.
Set to the desired width, align the holes and insert
the 'e-clips'.
Ensure that both cross bars are set to the same
width.
USER INSTRUCTIONS
MOWBRAY LITE PLUS
Mowbray Lite Plus
Maximum User Weight
4.2 To fi t the legs:
Insert the leg extensions inside the LH & RH frames
and slide to the desired height.
Align the holes and insert the 'e-clips'.
Use the markings on the legs to ensure that all four
legs are secured at the same height to prevent
rocking and instability.
Fig 2: Seat Lid Open
4.3 To fi t the seat:
Place the seat on the frame in the correct position,
with the front of the seat and curve of the armrests
facing forwards (Fig 3).
Push down fi rmly on the seat until it snaps into
position on both the front and rear cross bars.
4.4 To install the Mowbray Lit Plus:
Place the frame over the toilet ensuring that the
internal splash guard is central over the toilet bowl
(Fig 2).
5. OPTIONAL FLOOR FIXING KIT
The fl oor fi xing kit provides a permanent fi xing
solution for the Mowbray Lite Plus. It helps to prevent
the frame from moving out of position or becoming
unstable during use.
1
30st
190kg
Fig 3: Seat Lid Closed
