NRS Healthcare Mowbray Lite M66625 Product Data Sheet

Product Range

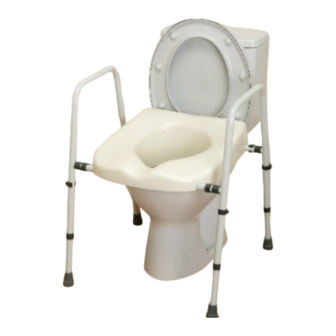

M66625 Mowbray Lite Toilet Frame & Seat — Standard
M92740 Mowbray Lite Toilet Frame & Seat — 510
M66613 Mowbray Lite Toilet Frame & Seat Width Adjustable — Flat Pack
N36974 Mowbray Lite Toilet Frame & Seat Width Adjustable — Assembled
Product Description & Intended Purpose
To assist those who have difficulty lowering or rising from a
standard toilet.

Product Features


Smooth and contoured plastic seat provides extra comfort
and thigh support.

Shaped seat to aid the rising and lowering motion.

Non slip rubber ferrules to provide stability.

Chute incorporated in seat design to simplify disposal.

Technical Specification

Dimensions (mm)

Seat Height—400—550

Seat Width X Depth—406 X 450

Seat Aperture— 260 X 220

Frame Height—610—770

M66625—Width between arms—450
Footprint—520 X 515—565
Installation Information (Note: for detailed information refer to User Instructions)

Push toilet seat onto frame by clipping over tube.

To adjust height and width, remove 'e-clips', slide inner tube to desired position, align holes and re-
insert 'e-clips'.
Product Technical Data Sheet 017
Mowbray Lite Toilet Frame & Seat




M92740—Width Between Arms—510
Footprint—627 X 515—565
M66613—Width Between Arms—510—660
Footprint—570—720 X 515—565
N36974—Width Between Arms—510—660
Footprint— 570—720 X 515—565
Maximum User Weight—190Kg (30st)
