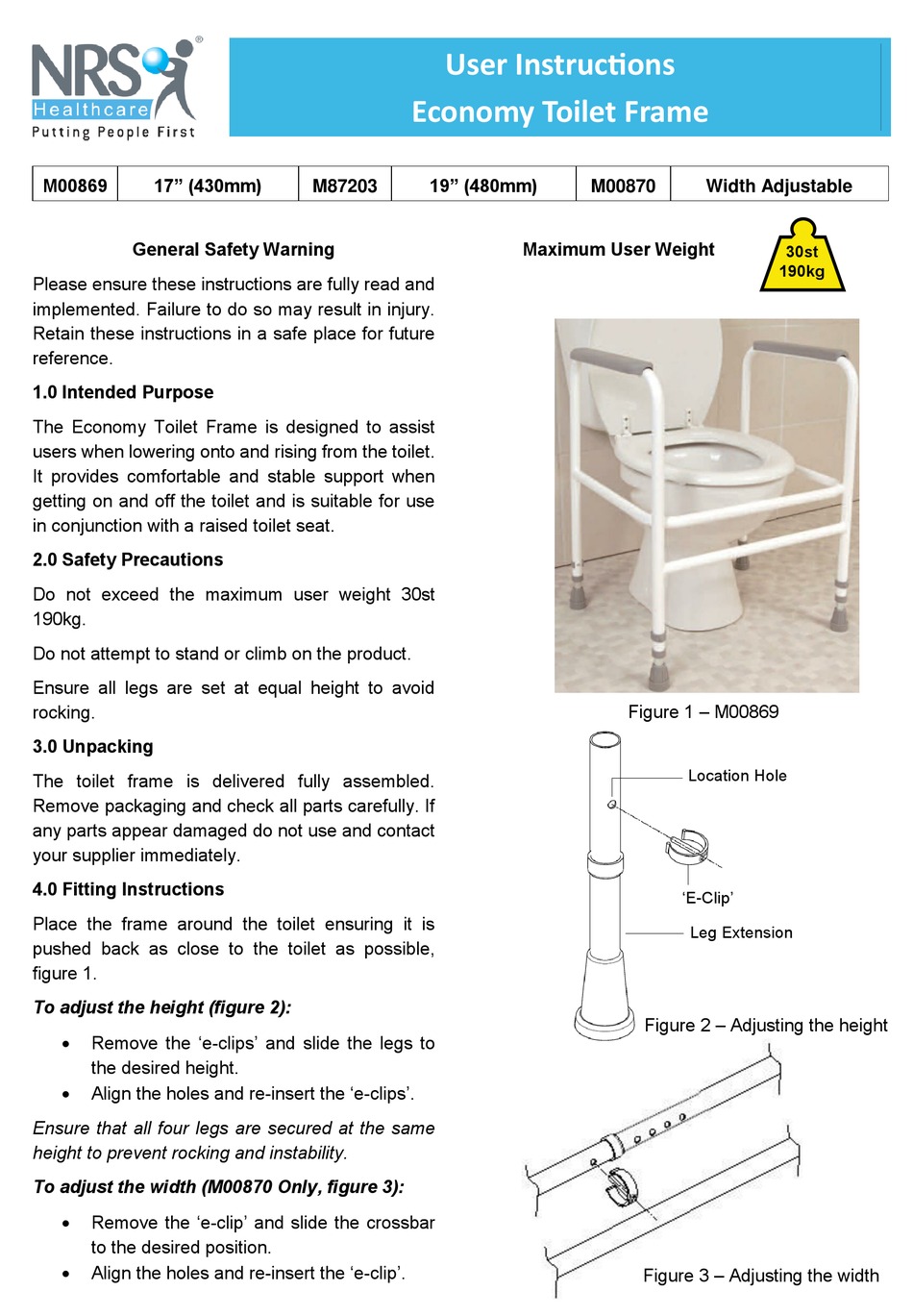

NRS Healthcare M00869 User Instructions

M00869 17" (430mm)
General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Purpose
The Economy Toilet Frame is designed to assist
users when lowering onto and rising from the toilet.
It provides comfortable and stable support when
getting on and off the toilet and is suitable for use
in conjunction with a raised toilet seat.
2.0 Safety Precautions
Do not exceed the maximum user weight 30st
190kg.
Do not attempt to stand or climb on the product.
Ensure all legs are set at equal height to avoid
rocking.
3.0 Unpacking
The toilet frame is delivered fully assembled.
Remove packaging and check all parts carefully. If
any parts appear damaged do not use and contact
your supplier immediately.
4.0 Fitting Instructions
Place the frame around the toilet ensuring it is
pushed back as close to the toilet as possible,
figure 1.
To adjust the height (figure 2):

Remove the 'e-clips' and slide the legs to
the desired height.

Align the holes and re-insert the 'e-clips'.
Ensure that all four legs are secured at the same
height to prevent rocking and instability.
To adjust the width (M00870 Only, figure 3):

Remove the 'e-clip' and slide the crossbar
to the desired position.

Align the holes and re-insert the 'e-clip'.
User Instructions
Economy Toilet Frame
19" (480mm)
M87203 M00870
Maximum User Weight
Figure 1 – M00869
Location Hole
'E-Clip'
Leg Extension
Figure 2 – Adjusting the height
Figure 3 – Adjusting the width
Width Adjustable
30st
190kg
