NRS Healthcare M66613 User Instructions

M66613
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a
safe place for future reference.
1.

INTENDED USE

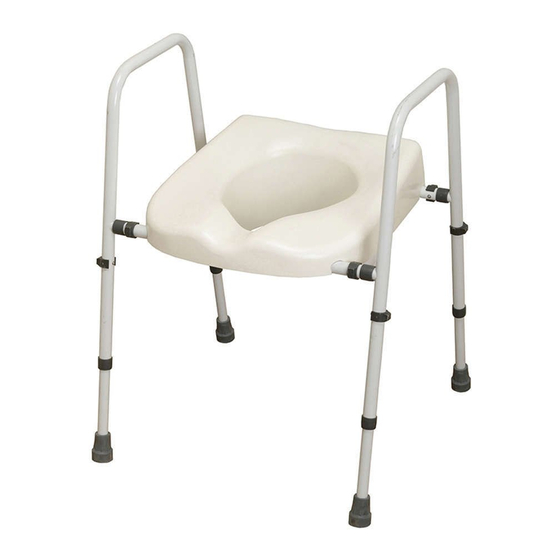

The height and width adjustable Mowbray Lite Flat Pack toilet frame and seat range has been designed to assist
those who have diffi culty in lowering onto or rising from a standard toilet. The comfortable plastic moulded seat off ers
support in a natural position. An optional fl oor fi xing kit is also available (F11572).
2.

SAFETY

WARNING: The maximum user weight must not be more
than 190Kg (30st).
DO NOT: Attempt to stand or climb on the product.
MAKE SURE: All legs are set at equal height to avoid
rocking.
3.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1 Contents:
1.
Toilet Seat x 1
2.
RH Frame Assembly x 1
3.
LH Frame Assembly x 1
4.
Crossbars x 2
5.
Leg Extensions x 4
6.
E-clips x 8
4.

ASSEMBLY

4.1 Fitting the Crossbars
1.
Slot the 2 x crossbars onto the side-frame assemblies
and adjust to the correct width for the toilet and the
user.
2.
Align the holes and secure with the 4 x E-clips.
Note: Make sure that the side-frames and crossbars
have been set to the same width/adjustment holes.
MOWBRAY LITE FLAT PACK
TOILET FRAME AND SEAT
Mowbray Lite Flat Pack - Height & Width Adjustable
USER INSTRUCTIONS
4.2 Fitting the Leg Extensions
3.
Slot the 4 x leg extensions into the side-frame
assemblies and adjust to the correct height for the
toilet and the user.
4.
Align the holes and secure with the 4 x E-clips.
Note: Make sure the leg extensions have all been set to
the same height.
4.3 Fitting the Seat
5.
Remove the seat from the bag and snap into place
on the centre bars of the frame.
1
Maximum User Weight
30st
190kg
