NRS Healthcare M00869 User Instructions

M00869 Economy Toilet Frame 17" (430mm)
M00870 Economy Toilet Frame Width Adjustable
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1.

INTENDED USE

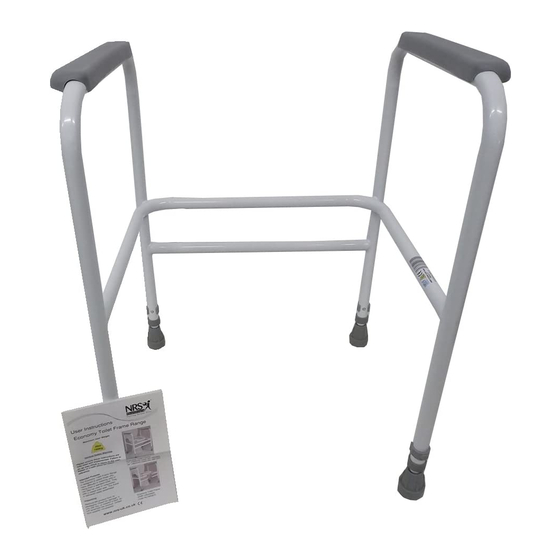

The Economy Toilet Frame is designed to assist users when lowering onto and rising from the toilet.
It provides comfortable and stable support when getting on and off the toilet and is suitable for use in
conjunction with a raised toilet seat.
ECONOMY TOILET FRAME RANGE
M00869
M00870
USER INSTRUCTIONS
M87203
2.

SAFETY

Warning: The maximum user weight must not be
more than 190Kg (30st).
Do not attempt to stand or climb on the product.
Ensure all legs are set at an equal height to avoid
rocking.
3.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
4.

HEIGHT ADJUSTMENT

Remove the 'e-clips' and slide the legs to the desired
height.
Align the holes and re-insert the 'e-clips'.
Note: Ensure that all four legs are secured at the
same height to prevent rocking and instability.
5.

WIDTH ADJUSTMENT (M00870 ONLY)

Remove the 'e-clip' and slide the crossbar to the
desired position.
Align the holes and re-insert the 'e-clip'.
Note: Ensure that the e-clip is fully inserted before
using.
1
Economy Toilet Frame 19" (480mm)
Maximum User Weight
30st
190kg
