NRS Healthcare M11260 User Instructions

M11260 Long Support Rail - 760mm (30")
General Safety Warning
This Product must be fi tted be a suitably qualifi ed
person. Please make sure that you read and
follow these instructions carefully. Failure to do
so can result in injury. Keep these instructions in
a safe place for future reference.
1.0 INTENDED USE
This Folding Support Rail is a high-quality steel rail, it is fl oor fi xed and provides stable support to assist
the user raise and lower themselves for toileting. The rail can be raised back to the wall when not in use or
when transferring from the side

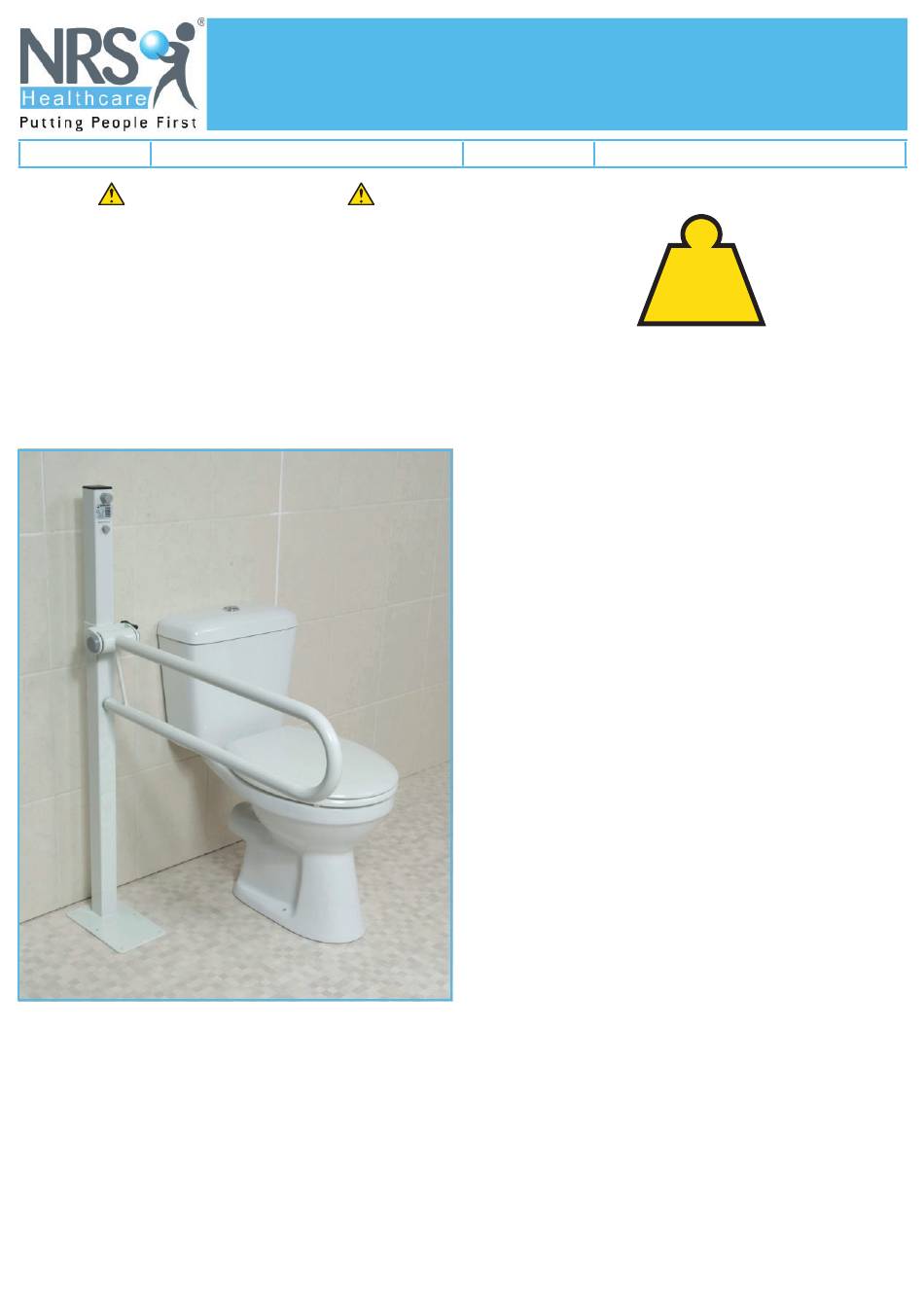

Figure 1: Folding Support Rail
2.0 SAFETY
• This support rail should only be secured to sound
wooden fl oors on timber joists or concrete fl oors,
using fi xings appropriate to the fl oor type.
• This product must be installed by a suitably
qualifi ed, competent, person.
• Always check for concealed electrical cables
and water pipes when installing; also check your
legal requirements relating to earth bonding of
extraneous metal parts.
USER INSTRUCTIONS
STANDARD FLOOR-FIXED FOLDING
SUPPORT RAIL
M20108
Maximum User Weight
• Do not exceed the maximum load - Note this is
based on the product being fi tted to a suitable
surface using appropriate fi xings
• Check fl oor fi xings regularly, ensure all fi xings
are secure, and there is no movement on the
fl oor stand
3.0 UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
4.0 INSTALLATION
1. Place stand in the required position.
2. Make sure the rail can be raised and lowered
without interference from other fi xtures and
furniture and that transfers can be carried out
safely.
4.1 Floor board fi xing:
1. Mark through all holes in the base plate.
2. Remove stand and drill pilot holes suitable for
the fi xings.
3. Screw down using appropriate fi xings.
4. Make sure screws go through fl oorboards and
into the fl oor joists.
4.2 Concrete fl oor fi xing:
1. Mark through all holes in the base plate.
2. Remove the stand, then drill all holes using a
suitable masonry drill.
3. Remove dust and insert plugs. Replace stand
and secure using suitable fi xings.
1. Using the black hand-wheel on the side of the
support rail, release the rail and slide up/down
the fl oor stand. Re-clamp the rail securely at the
appropriate height using the black hand-wheel.
1
Short Rail - 550mm (21½")
16st
100kg
