N53909
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a
safe place for future reference.
1.
INTENDED USE

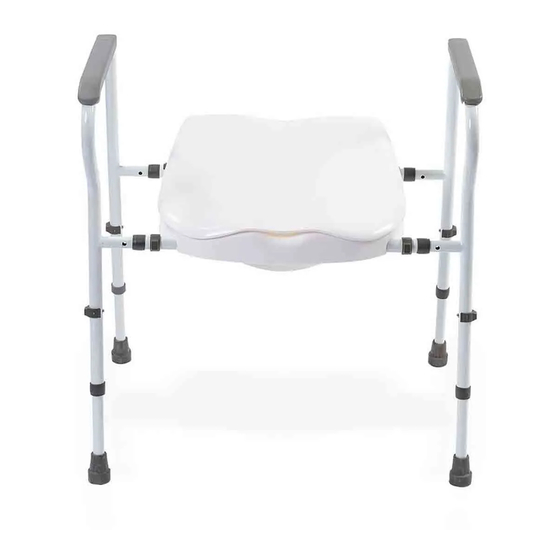

The height and width adjustable Mowbray Lite Plus toilet frame and seat with lid has been designed to assist those
who have diffi culty in lowering onto or rising from a standard toilet. The comfortable plastic moulded seat off ers
support in a natural position. The seat lid adds discreet style and helps to improve cleanliness and hygiene. An
optional fl oor fi xing kit is also available (F11572).
2.
SAFETY
WARNING: The maximum user weight must not be more
than 190Kg (30st).
DO NOT: Attempt to stand or climb on the product.
MAKE SURE: All legs are set at equal height to avoid
rocking.
3.
UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1 Contents:
2
4
5
1.
Toilet Seat & Lid x 1
2.
RH Frame Assembly x 1
3.
LH Frame Assembly x 1
4.
Leg Extensions x 4
5.
Crossbar x 2
6.
E-clip x 8
4.
ASSEMBLY/INSTALLATION
4.1 Fitting the Crossbars:
1.
Slot the 2 x crossbars onto the side-frame assemblies
and adjust to the correct width for the toilet and the user.
USER INSTRUCTIONS
MOWBRAY LITE PLUS
Mowbray Lite Plus
6
2.
Align the holes and secure with the 4 x E-clips.
1
Note: Make sure that the side-frames and crossbars
have been set to the same width/adjustment holes.
3
4.2 Fitting the Leg Extensions:
3.
Slot the 4 x leg extensions into the side-frame
assemblies and adjust to the correct height for the toilet
and the user.
4.
Align the holes and secure with the 4 x E-clips.
1
Maximum User Weight
30st
190kg
