NRS Healthcare M99138 User Instructions

M99138
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1. INTENDED USE
This sturdy height adjustable stool is for use in a
shower. It has a swivelling seat to enable the user to
sit and easily position themselves. The seat can be
easily removed for cleaning.
2. SAFETY
Warning: The maximum user weight must not be
more than 127Kg (20st).
Floor surfaces must be level and even to avoid
rocking.
All four ferrules must be in contact with the fl oor at
all times.
Periodically check all legs for total movement.
Ensure the seat is securely fi xed
Do not exceed the maximum user weight limit.
Inspect at regular intervals for wear and damage.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
USER INSTRUCTIONS
NRS SHOWER STOOL WITH SWIVEL SEAT

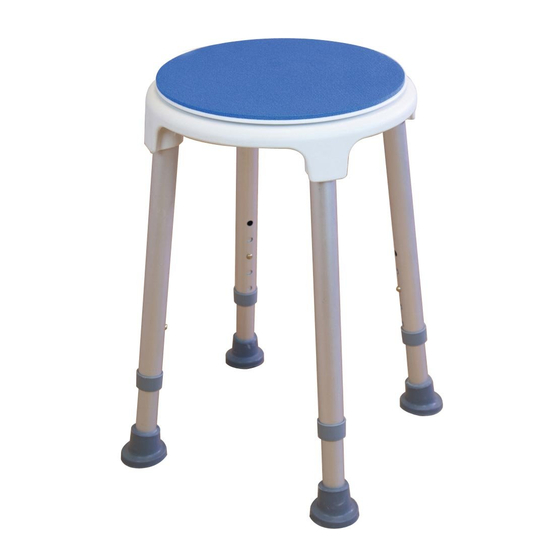

NRS Shower Stool with Swivel Seat
Maximum User Weight
3.1 Contents:
1. Seat x 1
2. Legs x 4
3. Leg Extensions x 4
4. Plastic Wing Nut x 1
4. ASSEMBLY/INSTALLATION
Leg
Plastic
Wing-Nut
With the seat upturned push the legs into the seat
orifi ces, as shown in Figure 1 making sure the button
clips, snap into position.
Check the legs are rigid and do not move.
Fit the Leg Extensions into the legs, again make
sure the button clips snap into position.
Adjust the seat to the desired height by sliding the
leg extensions, make sure all the extensions are at
the same height.
Note: Make sure all button clips have fully engaged
the holes and the seat is fully secure before use.
1
20st
127kg
Snap Button
Clip
Figure 1:
