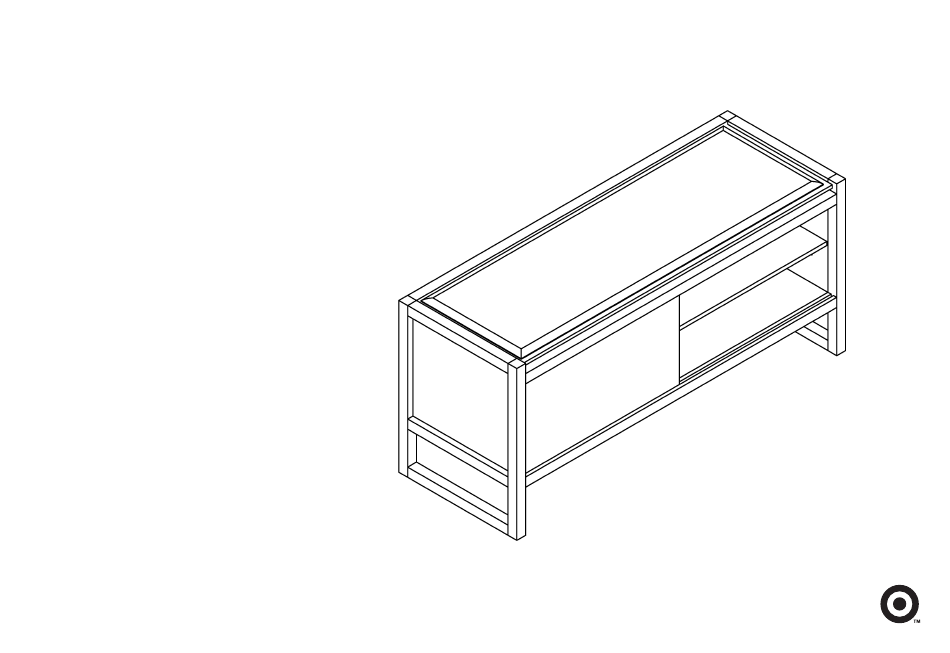

- Page 1 # TGFGBENCWH (white) dpci # 249-18-0648 tcin # 54158332 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 12 (H2) x 8 (H3) x 8 (H4) x 17 (H5) x 4 wooden dowel cam bolt pan head screw shelf support (H6) x 4 (H7) x 4 (H8) x 4 (H9) x 1 washer lock washer bolt allen wrench...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel partition adjustable shelf bottom panel back panel sliding door center leg cushion...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) 4. 4. 5.
- Page 7 step 1: attach top panel and bottom panel to partition (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in top panel and bottom panel. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach center leg 2.1. Align center leg with pre-drilled hole to attach to bottom panel.
- Page 9 step 3: attach right side panel (H1) x 4 (H2) x 2 (H3) x 2 wooden dowel cam bolt (H6) x 2 (H7) x 2 (H8) x 2 (H9) x 1 washer lock washer bolt allen wrench 3.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: install sliding door 4.1. Insert sliding door into tracks located on top panel and bottom panel.
- Page 11 step 5: attach left side panel (H1) x 4 (H2) x 2 (H3) x 2 wooden dowel cam bolt (H6) x 2 (H7) x 2 (H8) x 2 (H9) x 1 washer lock washer bolt allen wrench 5.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 5.2.
- Page 12 step 6: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN DOOR NOT SLIDING SMOOTHLY** Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 13 step 7: install adjustable shelf and cushion (H5) x 4 shelf support finished edge Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 7.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 7.2. Angle shelf to fit between the rails and set on top of shelf supports.
- Page 14 adjustable leg levelers 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 15 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
