Target Fairglen TGFGMEDIWH Assembly Instructions Manual

Target Fairglen TGFGMEDIWH Assembly Instructions Manual

Media stand, white
Hide thumbs

Advertisement

Quick Links

Download this manual
fairglen
media stand
style # TGFGMEDIWH (white)
dpci # 249-10-2248
TCIN # 54158375
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fairglen TGFGMEDIWH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Target Fairglen TGFGMEDIWH

Summary of Contents for Target Fairglen TGFGMEDIWH

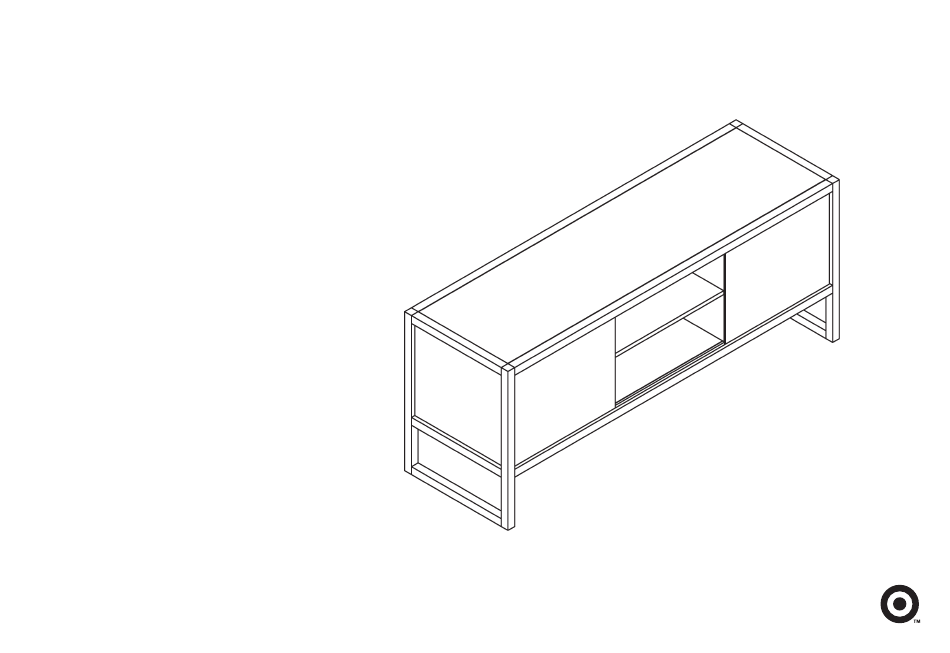

  • Page 1 # TGFGMEDIWH (white) dpci # 249-10-2248 TCIN # 54158375 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

  • Page 2: Before You Begin

    Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-15 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4 hardware (H1) x 20 (H2) x 20 (H3) x 20 (H4) x 22 (H5) x 8 wooden dowel cam bolt pan head scew shelf support (H6) x 2 (H7) x 1 (H8) x 1 (H9) x 1 (H10) x 1 washer wall anchor wall strap...

  • Page 5: Exploded Diagram

    exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel left partition right partition bottom panel back panel adjustable shelf fixed shelf sliding door foot...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
  • Page 7 step 1: attach left partition and right partition to fixed shelf finished edge (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in left partition and right partition. Leave 1/2” of the dowels sticking out. 1.2.
  • Page 8 step 2: attach top panel and bottom panel finished edge (H1) x 8 (H2) x 8 (H3) x 8 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place in top panel and bottom panel. Leave 1/2” of the dowels sticking out. 2.2.
  • Page 9 step 3: attach legs 3.1. Align legs with pre-drilled holes to attach to bottom panel.
  • Page 10 step 4: attach right side panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 4.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 4.2. Screw-In cam bolts must be screwed down flush in right side panel. 4.3.
  • Page 11 step 5: install sliding doors 5.1. Insert sliding doors into tracks located on top panel and bottom panel.
  • Page 12 step 6: attach left side panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 6.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 6.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 6.2.
  • Page 13 step 7: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN DOOR NOT SLIDING SMOOTHLY** **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN DOOR NOT SLIDING SMOOTHLY** Begin by installing all of the screws along one edge of the back panel.
  • Page 14 step 8: install adjustable shelves finished edge (H5) x 8 shelf support finished edge 8.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 8.2. Angle shelf to fit between the rails and set on top of shelf supports.
  • Page 15 step 9: install anti-tip kit (H7) Position against wall (H8) Mark position of strap hole on wall Mark position of strap hole on wall (H9) Drill 1/4” hole (H6) Tap in wall anchor (H6) (H10) adjustable leg levelers Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
  • Page 16 WARNING WARNING Serious or fatal crushing injuries can occur For use with flat panel televisions from furniture tip-over. To help prevent weighing 60 pounds (27.2 kg) or less. tip-over: Use with heavier televisions may Install tip-over restraint provided. result in instability causing tip over •...
  • Page 17 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
