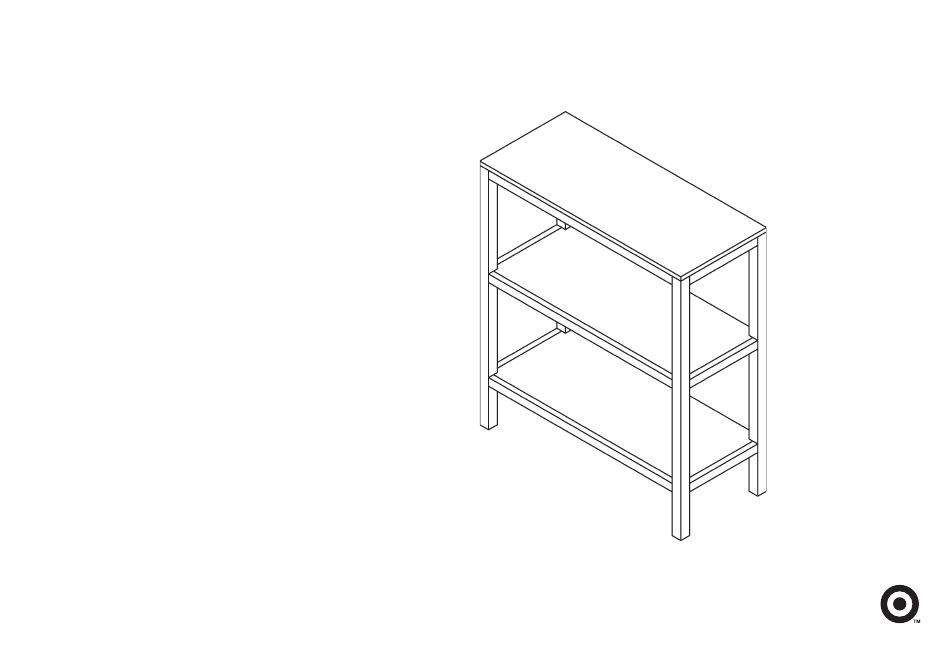

hadley
2 shelf bookcase
style # FKVSBC2SWH (shell)
dpci # 249-14-3676
tcin # 52107128
style # FKVSBC2SGY (stone gray)
dpci # 249-14-3677
tcin # 52107130
>> assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Target hadley FKVSBC2SWH
Summary of Contents for Target hadley FKVSBC2SWH
- Page 1 # FKVSBC2SWH (shell) dpci # 249-14-3676 tcin # 52107128 style # FKVSBC2SGY (stone gray) dpci # 249-14-3677 tcin # 52107130 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-10 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 12 (H2) x 8 (H3) x 8 (H4) x 1 (H5) x 21 (H6) x 4 wooden dowel cam bolt allen wrench pan head screw bolt (H7) x 4 (H8) x 6 (H9) x 1 (H10) x 1 (H11) x 1 (H12) x 1 lock washer...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame shelf back panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach left and right side frames to shelves (H1) x 8 (H2) x 8 (H3) x 8 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach top panel (H1) x 4 (H4) x 1 wooden dowel allen wrench (H6) x 4 (H7) x 4 (H8) x 4 bolt lock washer washer 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach back panel Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) If not, hole for anti-tip...
- Page 10 step 4: install anti-tip kit (H12) (H9) Position against wall Mark position of strap hole on wall Mark position of strap hole on wall (H11) Drill 1/4” hole (H8) Tap in wall anchor (H8) (H10) Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
- Page 11 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 12 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
