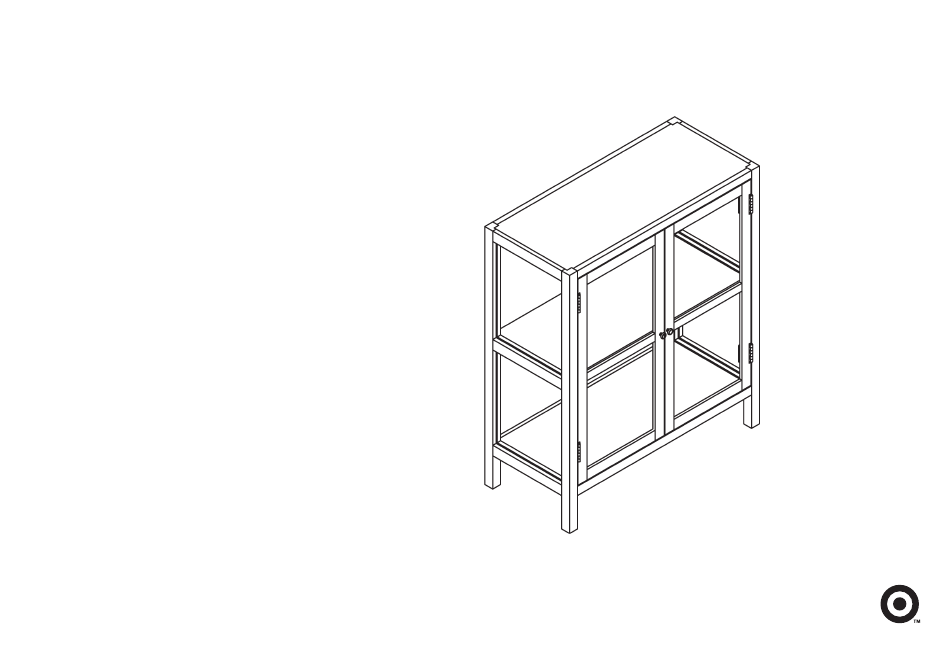

- Page 1 # FKVSCB2DWH (shell) dpci # 249-16-8945 tcin # 51902572 style # FKVSCB2DGY (stone gray) dpci # 249-16-8734 tcin # 51774487 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-11 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 12 (H2) x 8 (H3) x 8 (H4) x 1 (H5) x 27 (H6) x 2 wooden dowel cam bolt allen wrench pan head screw knob bolt (H7) x 8 (H8) x 2 (H9) x 4 (H10) x 1 (H11) x 4 (H12) x 4 flat head screw...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel fixed shelf bottom panel left door right door back panel... -
Page 6: How To Use The Cam Lock System
how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°... - Page 7 step 1: attach magnet to top panel (H5) x 2 (H10) x 1 pan head magnet screw 1.1. Align pan head screws with pre-drilled holes to attach magnet to top panel. Do not over tighten screws.
- Page 8 step 2: attach top panel, fixed shelf, and bottom panel to side panels (H1) x 12 (H2) x 8 (H3) x 8 wooden dowel cam bolt (H4) x 1 (H11) x 4 (H12) x 4 (H17) x 4 allen wrench bolt lock washer washer...
- Page 9 step 3: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 10 step 4: attach doors to cabinet (H6) x 2 (H7) x 8 (H8) x 2 knob bolt flat head knob screw 4.1. Align flat head screws with pre-drilled holes to attach door to cabinet. Do not over tighten screws. 4.2. Align knob bolt with pre-drilled holes to attach knob to door. Do not over tighten bolts.
- Page 11 step 5: install anti-tip kit (H16) (H13) Position against wall Mark position of strap hole on wall (H15) Drill 1/4” hole (H17) Tap in wall anchor (H17) (H14) Fasten anti-tip strap with wall screw provided (H15) x 1 (H16) x 1 (H13) x 1 (H14) x 1 (H17) x 2...
- Page 12 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
- Page 13 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 14 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
