Summary of Contents for Target Halsted FRS80921

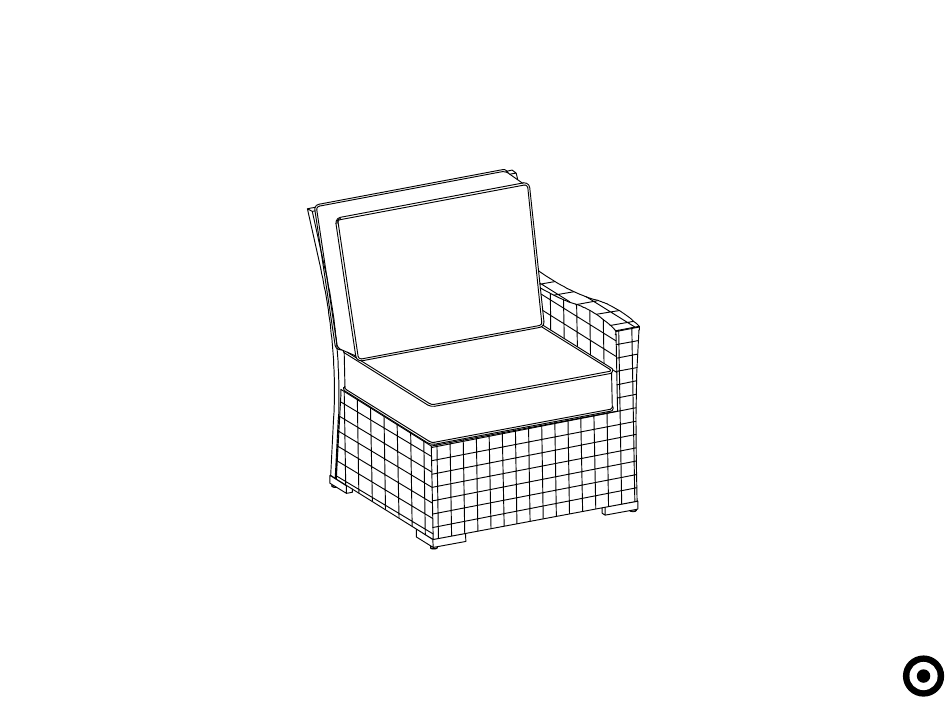

- Page 1 Halsted Left Armchair style # FRS80921 dpci # 009000787 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. -
Page 3: Warranty
This Chair comes with a one year limited warranty against original manufacture defects. If you experience trouble with your chair, please call the customer service number below. Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. - Page 4 table of contents introduction hardware parts list assembly 7-10 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part D)×2 (Part G)×2 (Part E)×1 (Part F)×2 M6*25 mm screw with washer M6*25 mm screw M6*40mm screw with washer M6*50mm screw with washer (Part H)×1 allen wrench...
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY back frame seat frame chair feet... - Page 7 step 01: (Part D)×2 (Part E)×1 (Part F)×2 M6*25 mm screw with washer M6*40mm screw with washer M6*50mm screw with washer (Part G)×2 (Part H)×1 M6*25 mm screw allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 8 step 02: (Part D)×2 (Part E)×1 (Part F)×2 M6*25 mm screw with washer M6*40mm screw with washer M6*50mm screw with washer (Part G)×2 (Part H)×1 M6*25 mm screw allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 9 step 03: (Part D)×2 (Part E)×1 (Part F)×2 M6*25 mm screw with washer M6*40mm screw with washer M6*50mm screw with washer (Part H)×1 (Part G)×2 M6*25 mm screw allen wrench 1. Attach the chair feet (C) to the seat frame (B) and back frame (A) by lining up screw holes on the chair feet (C) with corresponding screw holes on the seat frame (B) and the back frame (A).
- Page 10 step 04: 1. Tighted all the screws. 2. Return chair to upright position. 3. Put the cushion on the chair, tighten using the horn button that sewed on the cushion. You are now ready to enjoy your new chair.
- Page 12 The Bullseye Design is a trademark of Target Brands Inc. All rights reserved.
