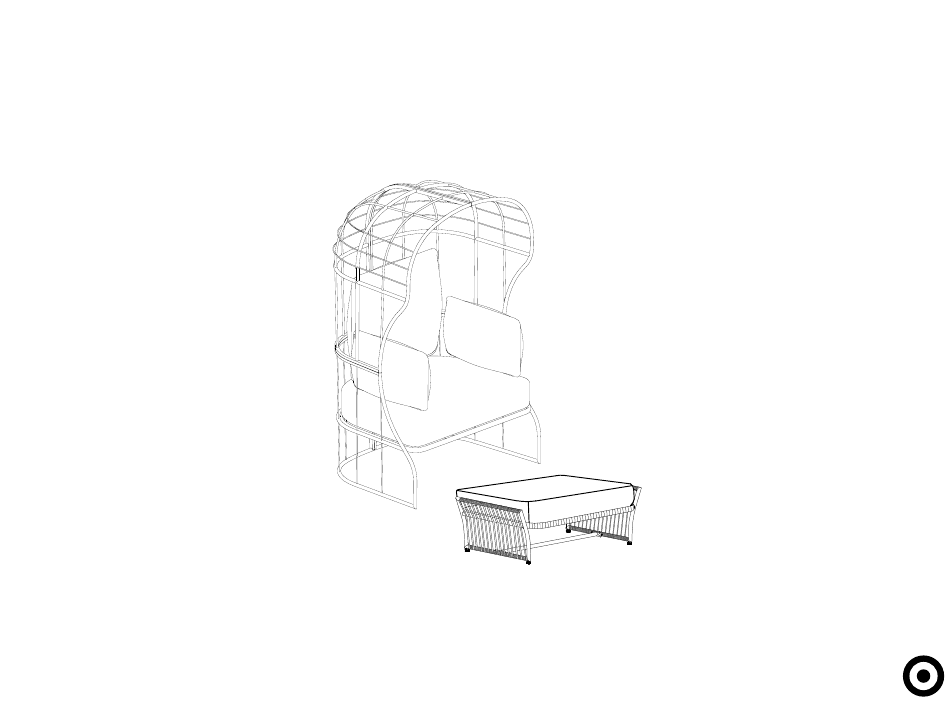

- Page 1 modern milan free-standing egg chair with ottoman style # FRS50145ST dpci # 009000479 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. -
Page 3: Warranty
This Chair comes with a one year limited warranty against original manufacture defects. If you experience trouble with your chair, please call the customer service number below. Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. - Page 4 table of contents introduction hardware parts list assembly 7-15 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part J)×4 (Part L)×12 (Part M)×12 (Part I)×6 (Part K)×6 M6*20 bolt with washer M6*30 bolt with washer M6*35mm bolt with washer M6*60mm bolt with washer M6 nut (Part N)×12 (Part O)×1 (Part P)×1 Washer hex wrench allen wrench...
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY left bottom frame right bottom frame left top frame right top frame seat frame ottoman seat frame side panel connector bar... - Page 7 step 01: (Part L)×4 (Part M)×4 M6*60mm bolt with washer M6 nut (Part N)×4 (Part O)×1 (Part P)×1 hex wrench allen wrench Washer ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 8 step 02: (Part K)×3 (Part P)×1 allen wrench M6*35mm bolt with washer 1. Attach the left bottom frame (A) to the seat frame (E ) by lining up screw holes 2. Secure with M6*35 bolt with washer (K), tighten using allen wrench (P). Do not completely tighten screws until all screws are started.
- Page 9 step 03: (Part K)×3 (Part P)×1 allen wrench M6*35mm bolt with washer 1. Attach the right bottom frame (B) to the seat frame (E ) by lining up screw holes 2. Secure with M6*35 bolt with washer (K), tighten using allen wrench (P). Do not completely tighten screws until all screws are started.
- Page 10 step 04: (Part I)×2 (Part L)×2 (Part M)×2 M6*20 bolt with washer M6*60mm bolt with washer M6 nut (Part P)×1 (Part N)×2 (Part O)×1 allen wrench Washer hex wrench 1. Secure with M6*20 bolt with washer (I) and M6*35 bolt with washer (K), tighten using allen wrench (P). 2.
- Page 11 step 05: (Part L)×6 (Part M)×6 M6*60mm bolt with washer M6 nut (Part N)×6 (Part O)×1 (Part P)×1 Washer hex wrench allen wrench 1. Attach the left top frame (C) and the right top frame (D) to the left bottom frame (A) and right bottom frame (B) with the corresponding screw holes. 2.
- Page 12 step 06 : Tighten all the screws. 2. Turn the chair to upright position on a flat level surface. Put the cushion on the chair. You are now ready to enjoy your new chair.
- Page 13 step 07: (Part J)×4 (Part P)×1 allen wrench M6*30 bolt with washer 1. Attach the ottoman seat frame (F) to the side panel (G) by lining up screw holes. 2. Secure with M6*30 bolt with washer (J), tighten using allen wrench (P). Do not completely tighten screws until all screws are started.
- Page 14 step 08: (Part P)×1 (Part I)×4 allen wrench M6*20 bolt with washer 1. Attach the connector bar (H) to the side panel (G) with the corresponding screw holes. 2. Secure with M6*20 bolt with washer (I), tighten using allen wrench (P). Do not completely tighten screws until all screws are started.
- Page 15 step 09 : Tighten all the screws. 2. Turn the ottoman to upright position on a flat level surface. Put the cushion on the ottoman. You are now ready to enjoy your new ottoman.
