fairglen
console desk
style # TGFGCDSKWH (white)
dpci # 249-14-5918
TCIN # 54158487
>>

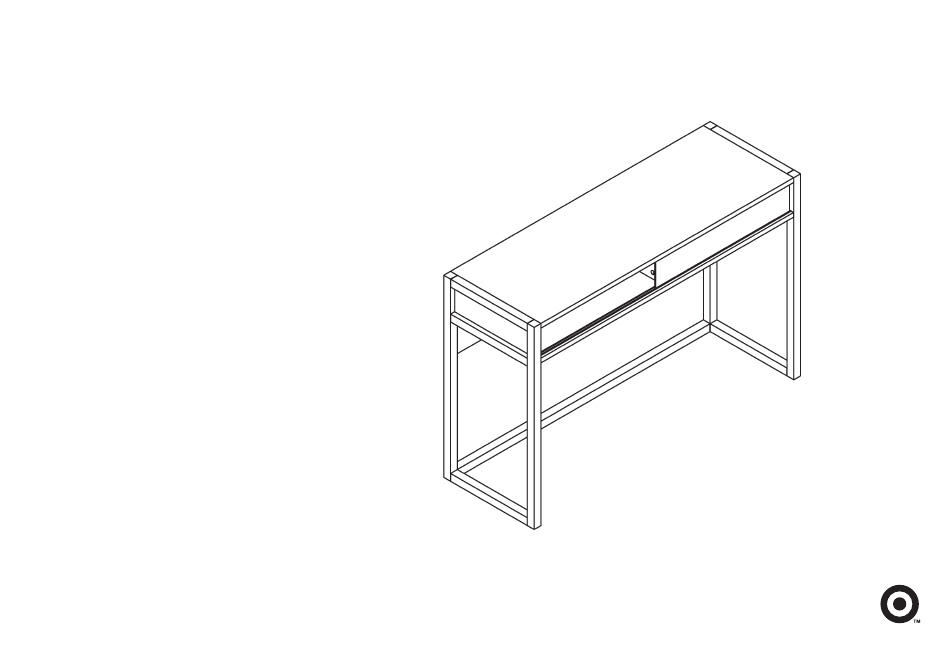

assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fairglen TGFGCDSKWH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Target Fairglen TGFGCDSKWH

  • Page 1 # TGFGCDSKWH (white) dpci # 249-14-5918 TCIN # 54158487 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-15 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4 hardware (H1) x 22 (H2) x 20 (H3) x 20 (H4) x 2 (H5) x 1 wooden dowel cam bolt flat head screw wall anchor (H6) x 1 (H7) x 1 (H8) x 1 (H9) x 2 wall screw truss head screw wall strap washer...
  • Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel partition back panel stretcher sliding door...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
  • Page 7 step 1: attach top panel to back panel (H1) x 2 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in top panel. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush in top panel. 1.3.
  • Page 8 step 2: attach partition to top panel finished edge (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place in top panel. Leave 1/2” of the dowels sticking out. 2.2.
  • Page 9 step 3: attach bottom panel finished edge (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place in bottom panel. Leave 1/2” of the dowels sticking out. 3.2. Screw-In cam bolts must be screwed down flush in bottom panel. 3.3.
  • Page 10 step 4: attach right side panel and stretcher (H1) x 8 (H2) x 6 (H3) x 4 wooden dowel cam bolt 4.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 4.2.
  • Page 11 step 5: secure stretcher to right panel and install sliding door (H4) x 1 flat head screw 5.1. Align flat head screw with pre-drilled hole to attach stretcher to right side panel. Do not over tighten screw.
  • Page 12 step 6: attach left side panel (H1) x 8 (H2) x 6 (H3) x 4 wooden dowel cam bolt 6.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 6.2. Screw-In cam bolts must be screwed down flush in left side panel. 6.3.
  • Page 13 step 7: secure stretcher to left side panel (H4) x 1 flat head screw 7.1. Align flat head screw with pre-drilled hole to attach stretcher to left side panel. Do not over tighten screw.
  • Page 14 step 8: attach back panel (H3) x 4 8.1. Finish attaching back panel by installing remaining cams. 8.2. Refer to page 6 for instructions on how to use the cam lock system. 8.3. Do not over tighten bolts.
  • Page 15 step 9: install anti-tip kit (H8) (H5) Position against wall Mark position of strap hole on wall (H7) Drill 1/4” hole (H9) Tap in wall anchor (H9) (H6) adjustable leg levelers Fasten anti-tip strap with wall screw provided (H7) x 1 (H8) x 1 (H5) x 1 (H6) x 1...
  • Page 16 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: l b s Install tip-over restraint provided. • Place heaviest items in the lowest drawers. • Do not set TV's or other heavy objects on top •...
  • Page 17 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
