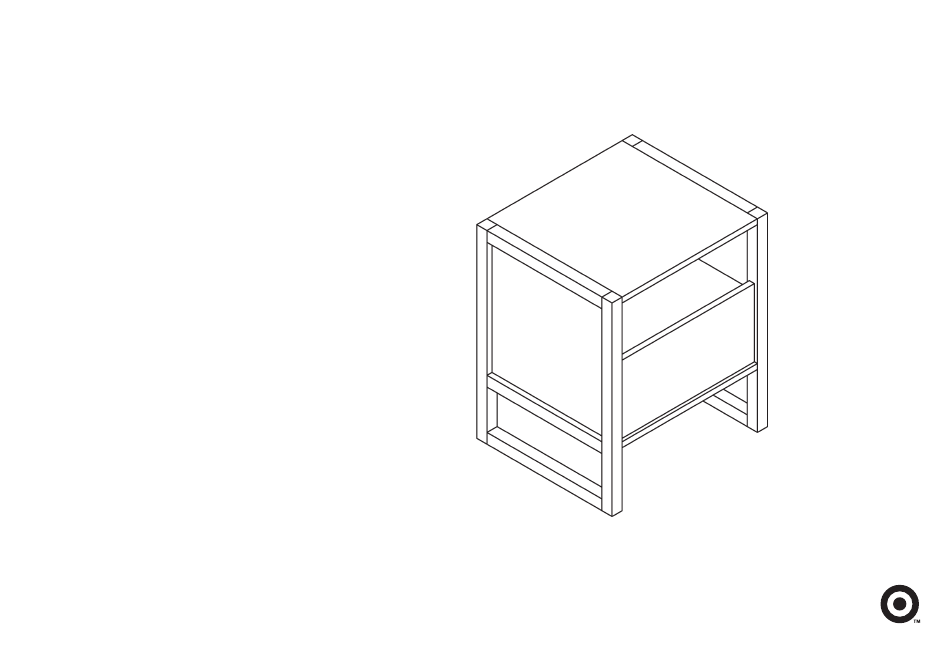

- Page 1 # TGFGSDTBWH (white) dpci # 249-17-2882 TCIN # 54158478 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-11 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 18 (H2) x 20 (H3) x 20 (H4) x 4 wooden dowel cam bolt flat head screw...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top/bottom panel left side panel right side panel back panel shelf drawer front drawer left panel drawer right panel drawer back panel drawer bottom panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach left side panel to back panel (H1) x 2 (H1) x 2 (H2) x 8 (H2) x 8 (H3) x 2 (H3) x 2 wooden dowel wooden dowel cam bolt cam bolt 1.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach top panel, bottom panel, and shelf to left side panel finished edge (H1) x 6 (H3) x 6 wooden dowel 2.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 2.1.
- Page 9 step 3: attach right side panel (H1) x 8 (H1) x 8 (H2) x 8 (H2) x 8 (H3) x 8 (H3) x 8 wooden dowel wooden dowel cam bolt cam bolt 3.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: assemble drawer box (H1) x 2 (H2) x 4 (H3) x 4 (H4) x 4 wooden dowel cam bolt flat head screw 4.1. Carefully tap small wooden dowels into place in drawer front. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: install drawer box 5.1. Align tracks on drawer box with tracks on left side panel and right side panel.
- Page 12 l b s adjustable leg levelers 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
