Table of contents Table of contents Introduction ..............1 Snow removal ............16 Important safety information ........... 2 Clean a blockage ............ 17 Safety alert symbol/Signal words/Safety messages ..2 Adjustments ..............18 Safety decals ..............5 Parking stand on the snowblower ......18 Assembly &...

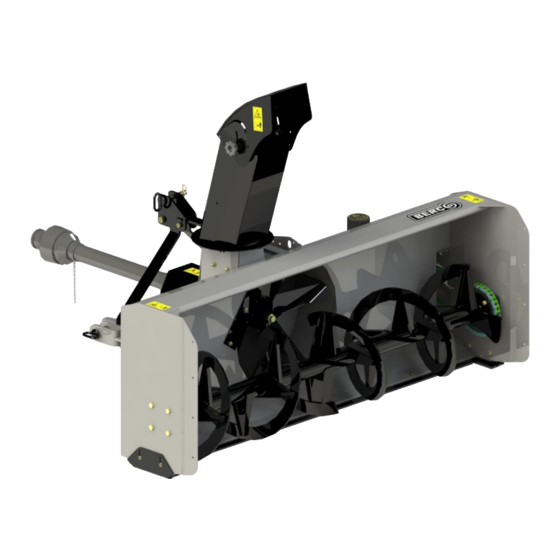

Introduction Introduction To the purchaser This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. All photographs, illustrations and information in the manual may not necessarily depict the actual models or attachments, but are intended for reference only and are based on the latest product information available at the time of publication.
Important safety information Important safety information Safety alert symbol/Signal words/Safety messages These are common practices that may or may not be applicable to the product described in this manual. SAFETY ALERT SYMBOL THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS MANUAL THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH.
Page 5
Important safety information • • Exercise extreme caution when operating on or Handle fuel with care, it is highly flammable and crossing gravel drives, walks or roads. Stay alert vapors are explosive. for hidden hazards such as traffic, fences, trees, a) Extinguish all cigarettes, cigars, pipes and other buildings, wires, etc.
Page 6
Important safety information TRANSPORT Remove all tools and unused parts from equipment before operation. • • Review Transport Safety instructions in the Disconnect battery ground cable (-) before vehicle manual before moving or hauling. servicing or adjusting electrical systems or •...
Important safety information Safety decals Read and understand all instructions/explanations noted on decals or/and in the “Safety Decals” section • Keep the safety decals clean and visible • For decal location see part list section of this manual • Replace decals if decals are missing or illegible •...
Page 8
Important safety information #108554 To avoid serious injury: Keep people and clothing away. Do not operate without all driveline, tractor and equipment shields in place, or without the drivelines securely attached at both ends. #108557 To avoid serious injury or death from thrown objects: Keep people away from the discharge area during operation and keep others away.
Assembly & initial set-up Assembly & initial set-up Vehicle requirements The snowblower is designed to be installed on a compact tractor only, equipped with a 3 point hitch, standard category 1 or quick hitch type. Tractor horsepower rating : 18-40 hp (64”) 25-40 hp (72”) 5.
Assembly & initial set-up Accessory assembly Installation of the kits for the rotation and the deflection of the chute: Installation of the hydraulic chute rotation kit #701011-1 PTO drive shaft installation See the instructions supplied with the kit. Install the PTO driveshaft (item 1) on the snowblower Installation of the manual chute rotation kit input shaft (item 2).
Page 11
Assembly & initial set-up regard to the length of the arms of the tractor or the If D is between 1” and L/2: options installed on the tractor (example: 3 point quick · Driveline recommended overlap is good. hitch) or the location of the PTO on the tractor. Apply multi-purpose grease to the inside of the outer Determine the length of PTO drive shaft.
Assembly & initial set-up Un-hook driveline from tractor PTO shaft and pull outer B. Reinstall the guards. and inner drivelines apart. Assembly options Reattach outer driveline to tractor PTO shaft. Pull on Please see your dealer for a complete list of updated inner and outer drivelines to be sure universal joints are options.
Accessory Hook-up & Unhook Accessory Hook-up & Unhook Hooking-Up the accessory G. Connect top link to accessory: Connect the top link to the hole in the accessory DANGER (item A) using the pin (item 3) and the hair pin (item 4). To avoid serious injury or death : A Crushing Hazard exists when hooking-up equipment.
Page 14
Accessory Hook-up & Unhook Install the PTO drive shaft on the input shaft of Purging hydraulic system the tractor. Hydraulic components on the accessory can contain air. If this is the first time the snowblower and PTO are The air needs to be purged from component installed on the tractor, make sure to follow the validation of the PTO drive shaft have been made (see A.
Page 15
Accessory Hook-up & Unhook Check interferences Repeat the following step for all possible adjustments of the accessory (see adjustment section) and all possible movement of any part of the accessory who affect the position of any part of the accessory relatively to the tractor.
Page 16
Accessory Hook-up & Unhook Place transmission in park, set park brake, shut power equipment off, and remove switch key to avoid accidental starting. See “vehicle shutdown procedures” in the operation section Remove from 3pt Style Hitch: A. If needed, adjust length of upper center 3point link until hitch pin can be removed from hitch frame.
Operating instructions Operating Instructions Safety precaution WARNING To avoid serious injury or death: DANGER Counterweight may be required. Refer to your loader and To avoid serious injury or death : tractor manual to determine if counterweight is needed. If loader and tractor manual do not have enough •...
Operating instructions Unhooking the accessory Controls and display See the Accessory Hook-up and Unhook section of this CHUTE ROTATION: manual. Follow the instructions supplied with your rotation kit. To direct the snow when removing Use the chute controls to direct the snow. see subsection WARNING control and display of the operation section).
Operating instructions Clean a blockage DANGER To avoid serious injury or death: Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snowblowers. Never use your hand to clean out the discharge chute. •...
Adjustments Adjustments Parking stand on the Raising the parking stand: IMPORTANT: when in operation or when the snowblower snowblower shaft is installed on the tractor, the parking stand must always be raised. DANGER Raise the snowblower 2” from the ground. To avoid serious injury or death : Stop the vehicle, see the procedure for stopping the Proceed to the assembly/adjustment on the accessory...
Adjustments Chute Rotation See operation section - control and display Skid Shoe adjustment PAVED SURFACE: Adjust skid shoes to allow 3/16" to 1/4" or 5mm to 7mm clearance (A) between cutting edge and surface. UNEVEN OR GRAVEL SURFACE: Adjust skid shoes to allow 1/2"...
Troubleshooting Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Snowblower vibrate Damaged auger Replace auger. abnormally noisy. Damaged drive shaft. Replace drive shaft. Damaged bearing. Replace bearing. Damaged fan. Dismount & repair or replace fan. Driveline is not well installed. Reinstall the driveline according to the instructions. Driveline angle is more than 35 Reduce the height of the accessory.
Page 23
Troubleshooting Snowblower digs into ground. Ground is not frozen or too soft. Adjust skid shoes lower so they may better support the snowblower. Snowblower does not raise Uneven tire pressure from one side Refer to the vehicle’s owner manual for tire evenly.
Maintenance & Lubrication Maintenance & Lubrication you do not use the bottom of the snowblower frame. The WARNING scraper bar is reversible. To avoid serious injury or death : Cutting edge maintenance • Always follow all safety precautions in the important safety information section of this manual.
Maintenance & Lubrication Replacing shear bolts for the chain and counter clockwise to remove it. fan and auger: NOTE: It is important that the chain is adjusted as shown to maximize its life. Shear bolts are to be considered a preventive measure and not an assured protection.
Storage and transportation Storage and transportation Long-Term Storage Transportation Follow unhooking instruction in the section “Hook -up WARNING and Unhook Accessory” of this manual. To avoid serious injury or death : • Clean the accessory When travelling on public roads, use SMV sign, clean •...
Torque specification table Torque specification table TO BE USED WHEN A TIGHTENING TORQUE IS NOT SPECIFIED IN THE TEXT • The following table shows the minimum torque requirement • Maximum is 15% more than the minimum (example: min100 Nm -> max is 115Nm) •...
NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
