Summary of Contents for Bercomac 700522

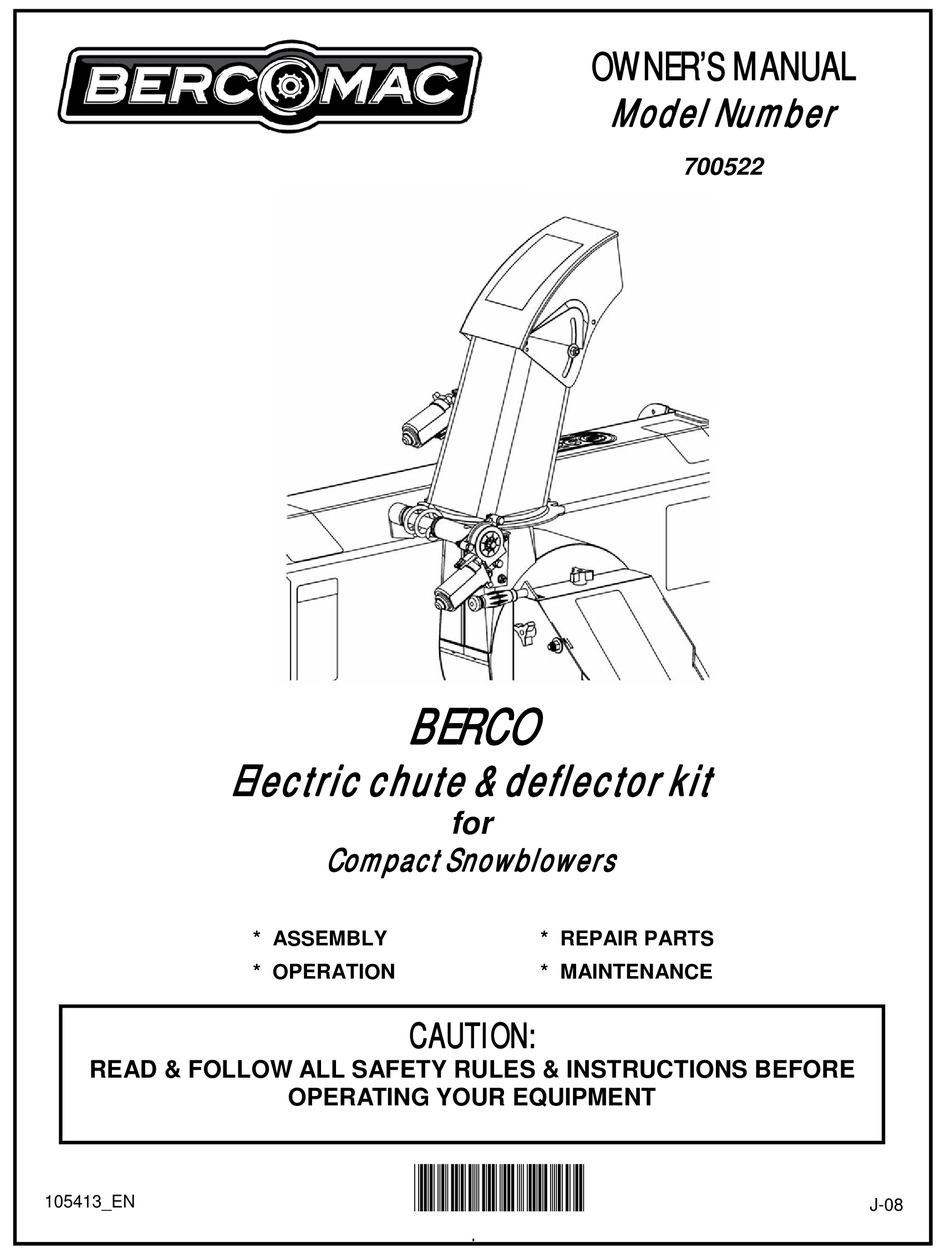

- Page 1 OWNER’S MANUAL Model Number 700522 BERCO Electric chute & deflector kit Compact Snowblowers * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT *105413_EN* 105413_EN J-08...
- Page 2 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION -------------------------------------------------------------------------------------------------------------------------- SAFETY PRECAUTIONS ............................. TOOLS REQUIRED ---------------------------------------------------------------------------------------------------------------------- ASSEMBLY Step 1: Installation of the Electric Rotation Kit on the Compact Snowblower ........Step 2: Installation of the Electric Deflector Kit ..................Step 3: Installation of the Electric Control Box ..................TROUBLESHOOTING ............................ -
Page 4: Introduction
INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating. -
Page 6: Assembly
ASSEMBLY STEP 1 INSTALLATION ELECTRIC ROTATION COMPACT SNOWBLOWER: Dismount the rotation worm (item 1), the chute (item 2) and the rotation ring (item 3) if already installed. Dismount the chute Install the bracket (item 1) under the base of the chute (item 2) by inserting the welded bolt in the rotation worm support (item 3) and secure with a 3/8"... -
Page 7: Step 2: Installation Of The Electric Deflector Kit
ASSEMBLY STEP 2 INSTALLATION ELECTRIC DEFLECTOR KIT: Remove the two knobs (item 1) from the deflector and replace them by two nylon flat washers 11/32’’ and two nylon insert lock nuts 5/16". DO NOT TIGHTEN COMPLETELY so that the deflector moves freely. -
Page 8: Step 3: Installation Of The Electric Control Box
ASSEMBLY Secure the bracket with two 1/4 x 1/2" screws and nylon insert lock nuts (item 1) (nuts on the outside). Tighten the screws firmly. Secure with screws Install the arm (item 1) on the deflector (item 2) with a 1/4 x 3/4"... -
Page 9: Troubleshooting
ASSEMBLY Thread the wires on the frame to the front where they will not be seen and where they won’t touch any hot or moving parts. Attach to the vehicle’s frame using the tie wraps. NOTE: It is recommended to place the wire connectors as close as possible to the subframe. -
Page 10: Electric Chute & Deflector Kit
PARTS BREAKDOWN ELECTRIC CHUTE & DEFLECTOR KIT... - Page 11 PARTS LIST ELECTRIC CHUTE & DEFLECTOR KIT Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Electric motor Moteur électrique 103378 Elect. motor ass'y with sleeve 103373 Mot. élect. ass'é avec douille 103373 103380 Adaptor Adapteur 103371 Bracket Support 103375...
- Page 12 WHEN PERFORMANCE & DEPENDABILITY ARE NON NEGOTIABLE ! Ber comac Limitée 92, For tin Nor th, Adstock, Quebec, Canada, G0N 1S0 WWW.BERCOMAC.COM PRINTED IN CANADA...
