Altronix T3SSK75F28 and T3SSK75F28D Trove S2 kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed
Altronix power supply/chargers and sub-assemblies. Both kits accommodate Lenel-S2 (S2 Security Platform) S2-INST Installation Kit for S2
Network Node for up to twenty-eight (28) (T2SSK7F8) doors in a single enclosure.
Altronix
Model
Number
eFlow104NB
T3SSK75F28
6.3A/ 250V
7.5
eFlow102NB
T3SSK75F28D
5A/ 250V
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and
screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two/three upper screws;
level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three
fasteners. Place the enclosure's upper keyholes over the two/three upper screws. Install the three lower screws and make sure to
tighten all screws.
3. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired
locations, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure
approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Mount S2-INST Installation Kit to backplane, refer to page 3.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow102NB and
eFlow104NB and corresponding Sub-Assembly Installation Guides for ACM4(CB),
ACM8(CB) and PD16W(CB) for further installation instructions.

Hardware:

Lock Nut
- 2 -

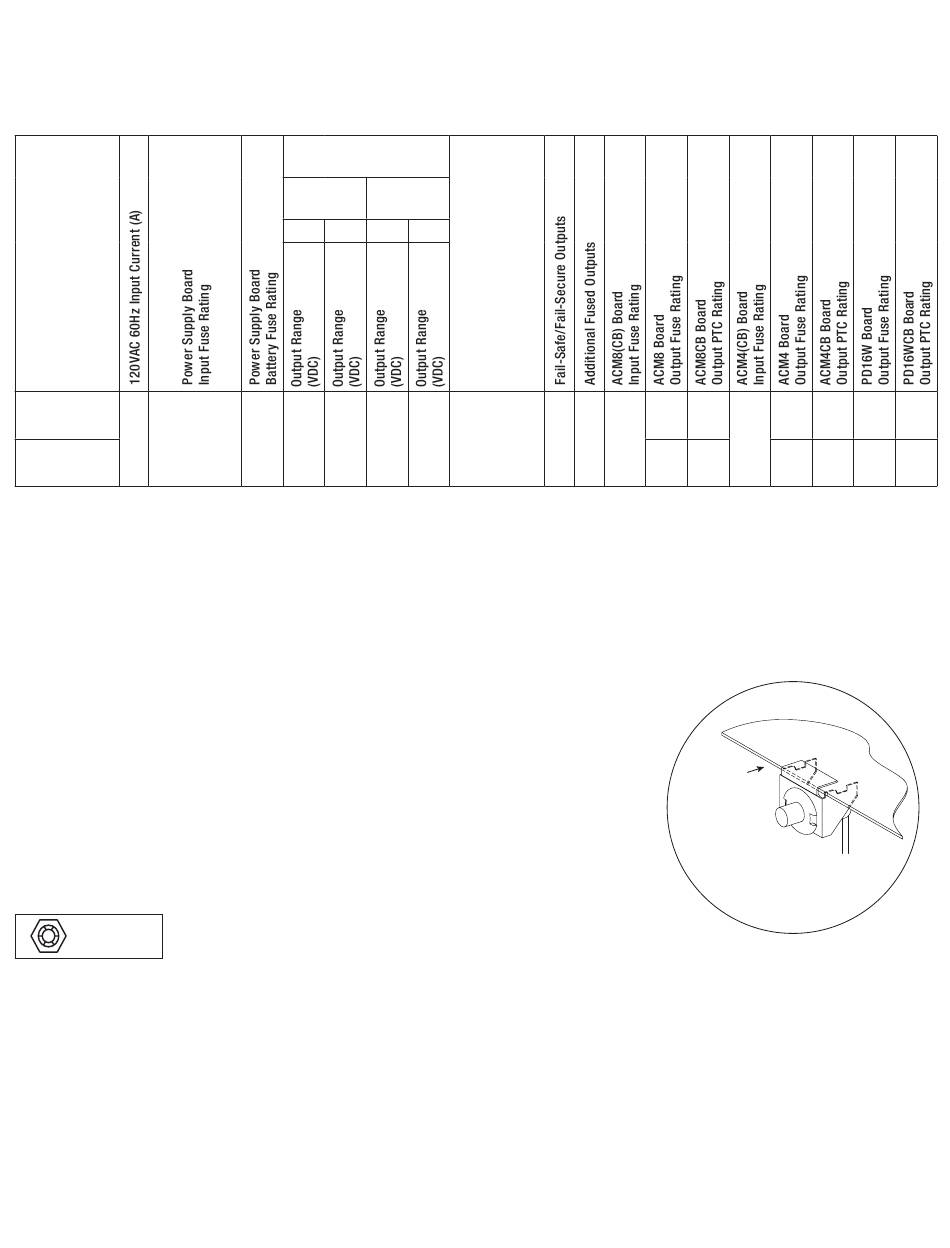

Overview:

Configuration Chart:

Nominal DC
Output Voltage
Power Power
Supply 1 Supply 2
[DC] [Aux] [DC] [Aux]
15A/ 20.17- 20.28- 9.7- 10.03-
32V 26.4 26.4 13.2 13.2

Installation Instructions:

Maximum
Supply
Current for
Main and Aux.
Outputs on
Power Supply
board and
ACM8(CB)
Access Power
Controllers'
outputs
24VDC @
9.4A
10A/
28 16
250V
12VDC @
10A
3.5A/ 3A/
250V 32V
10A/
32V
2.5A 2.5A
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Trove3 S2 Kits Installation Guide
3.5A/
250V
2.5A
Fig. 1
