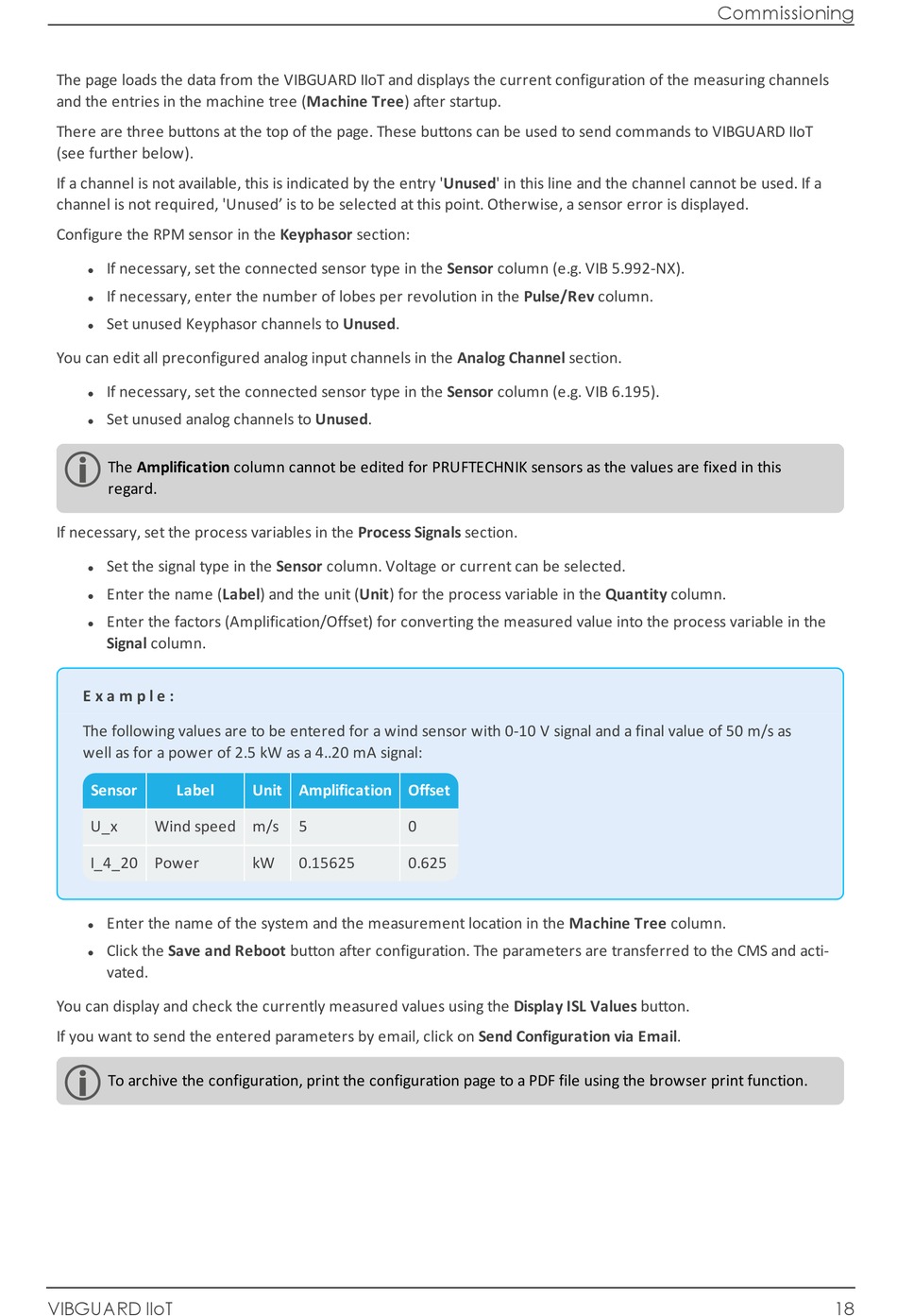

Fluke VIBGUARD IIoT Commissioning page 18

The page loads the data from the VIBGUARD IIoT and displays the current configuration of the measuring channels
and the entries in the machine tree (Machine Tree) after startup.
There are three buttons at the top of the page. These buttons can be used to send commands to VIBGUARD IIoT
(see further below).
If a channel is not available, this is indicated by the entry 'Unused' in this line and the channel cannot be used. If a
channel is not required, 'Unused' is to be selected at this point. Otherwise, a sensor error is displayed.
Configure the RPM sensor in the Keyphasor section:
If necessary, set the connected sensor type in the Sensor column (e.g. VIB 5.992-NX).
l
If necessary, enter the number of lobes per revolution in the Pulse/Rev column.
l
Set unused Keyphasor channels to Unused.
l
You can edit all preconfigured analog input channels in the Analog Channel section.
If necessary, set the connected sensor type in the Sensor column (e.g. VIB 6.195).
l
Set unused analog channels to Unused.
l
The Amplification column cannot be edited for PRUFTECHNIK sensors as the values are fixed in this
regard.
If necessary, set the process variables in the Process Signals section.
Set the signal type in the Sensor column. Voltage or current can be selected.
l
Enter the name (Label) and the unit (Unit) for the process variable in the Quantity column.
l
Enter the factors (Amplification/Offset) for converting the measured value into the process variable in the
l
Signal column.
E x a m p l e :
The following values are to be entered for a wind sensor with 0-10 V signal and a final value of 50 m/s as
well as for a power of 2.5 kW as a 4..20 mA signal:
Sensor Label
U_x Wind speed m/s
I_4_20 Power
Enter the name of the system and the measurement location in the Machine Tree column.
l
Click the Save and Reboot button after configuration. The parameters are transferred to the CMS and acti-
l
vated.
You can display and check the currently measured values using the Display ISL Values button.
If you want to send the entered parameters by email, click on Send Configuration via Email.
To archive the configuration, print the configuration page to a PDF file using the browser print function.
VIBGUARD IIoT
Unit Amplification Offset
5 0
kW 0.15625 0.625
