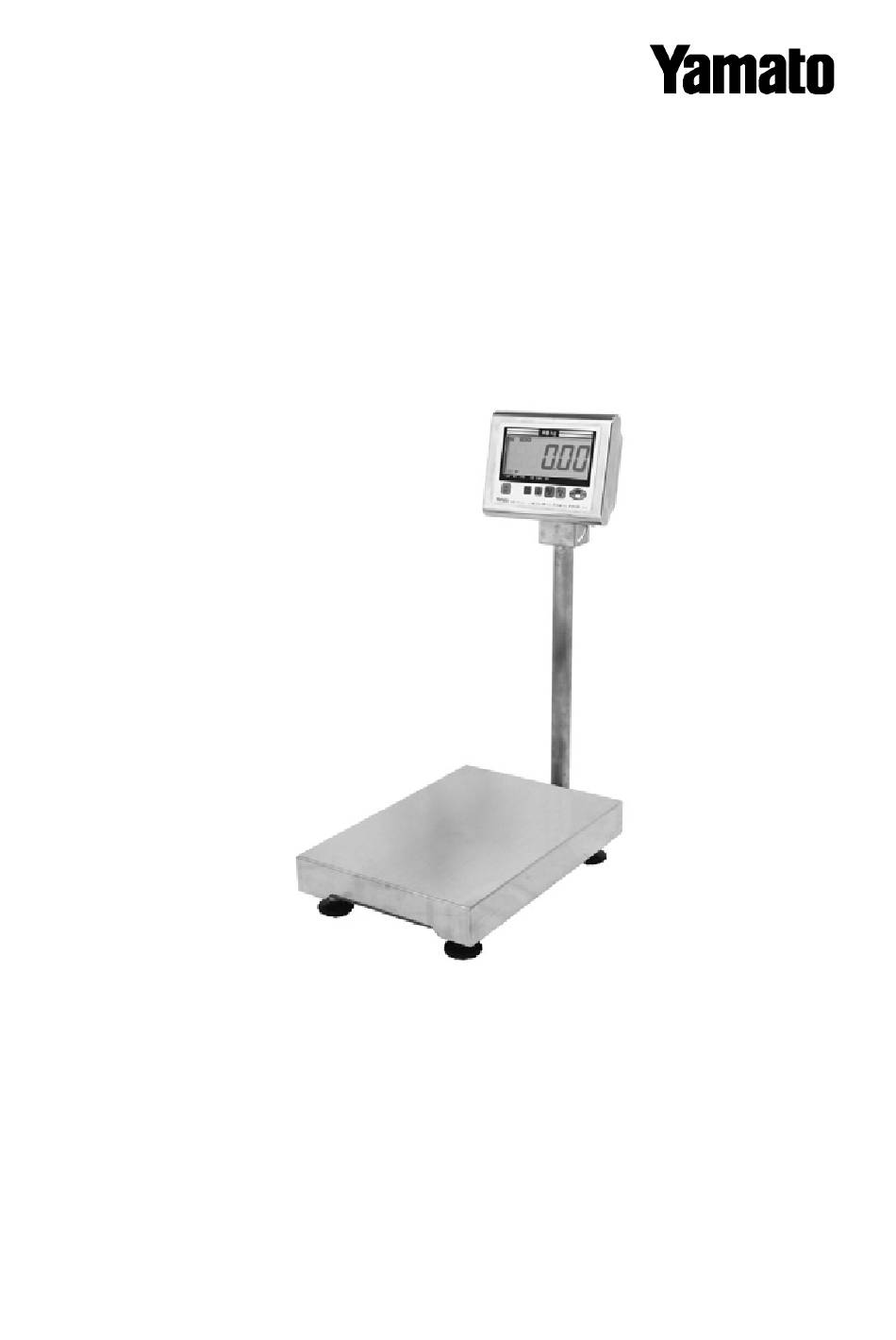

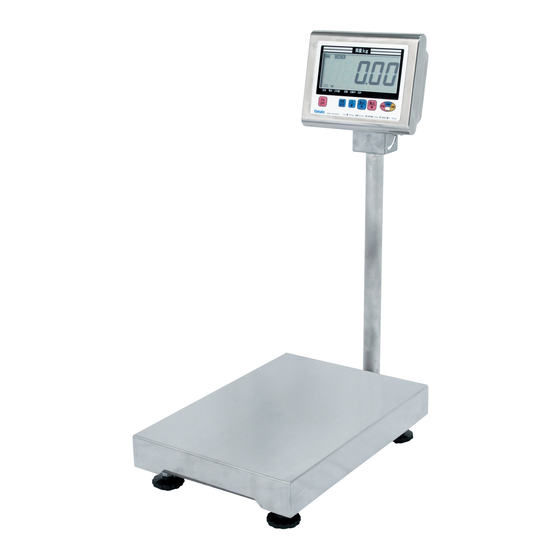

- Page 1 DIGITAL PLATFORM SCALE DP-6700 OPERATION MANUAL Read this manual and keep it handy YAMATO SCALE CO., LTD. EXPORT-1006...
-
Page 2: Table Of Contents
This scale features many functions. Please read carefully this Operation Manual and take advantage of the descriptions in it to use Yamato’s DP-6700 in the optimum condition for the longest life. TABLE OF CONTENTS PAGE SAFETY PRECAUTIONS······························································································... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Read carefully SAFETY PRECAUTIONS before use, and follow all the instructions. SAFETY PRECAUTIONS are designed for protecting users, other peoples and assets from physical and financial damages by your safety practices. This OPERATION MANUAL should be kept for the entire service life of the product. The hazardous levels and descriptions are defined as follows: Denotes where mishandling without compliance with this sign has a Danger... - Page 4 Warning Do Not Use on Unstable Surface: An inclined equipment may fall down and cause an unexpected accident. When the equipment is used on a table, special care is required for securing the safe operation. Do Not Hold the Platform Cover when Carrying The cover may detach from the body, and the main body may fall on and injure the foot.
-
Page 5: Instructions And Directions For Use
INSTRUCTIONS AND DIRECTIONS FOR USE Causes of Malfunction Do not press the display and keys with the tip of the fingernail or anything sharp. Make sure to hold the equipment from the bottom with the both hands when it is carried or moved. Do not apply excessive shock or vibration. -
Page 6: Functions
All images preinstalled in the scale are protected by copyright. Even if by any chance you are entered the writer’s claim for compensation, we cannot assume responsibility for the troubles. FUNCTIONS The DP-6700 has the following functions. Use these functions in accordance with your purpose. Function / Application How to use the function... -
Page 7: Product Package
PRODUCT PACKAGE NAMES OF PARTS... -
Page 8: To Keep The Scale Working Efficiently
1. This waterproof digital scale is graded as IP65. IP65 is the grade of protection against a water jet directed at the enclosure from any direction and DP-6700 may work even in humid and messy circumstances. Never wash the whole scale submerging in water. -
Page 9: Installation 1
INSTALLATION 1 How to assemble the scale Caution Inserting the pole into the pole bracket, extending a slack in cable and taking care not to damage the cable. Procedures 1. Insert the pole into the pole bracket. 2. Set a screw at the center hole and fasten it. 3. - Page 10 INSTALLATION 2 How to set batteries 1. Turn the both tabs on the back of the indicator counter-clockwise ( 180°) and remove the battery lid. When there are water drops around there, wipe them up thoroughly with a dry cloth. 2.
- Page 11 How to set AC adaptor (Option) Note: The waterproof is not effective when using the AC adaptor. Use a dedicated AC adaptor. It would be cause of trouble if you apply a different one. Insert firmly into the AC jack through a hole on the battery lid.
-
Page 12: Display And Keyboard
DISPLAY AND KEYBOARD Judgment lamp（Lights or is flickering at multi-function mode） ●Red : lights or is flickering when the weight is lighter than the target weight ●Blue : lights when the weight is in acceptable range ... -
Page 13: Basic Operation
BASIC OPERATION Operation Display 1 Press to turn on the scale. The display shows zero after all the indicators blinks. 2 When zero does not appear since the zero point is not correctly recognized: Press Zero appears on the display. 3 Place the item(s) on the platform. -
Page 14: Tare Operation
TARE OPERATION Tare operation is used when you want to display the net weight that is deducted a container weight from the gross weight. (Tare means a container in this case.) Operation Display 1 Place an empty container on the platform. The weight of the container (e.g. -
Page 15: Addition
USER PARAMETER The D-6700 has 4 functions that can be used in accordance with the application. Set the user parameter to fit an external environment according to the user parameter list before using the scale. USER PARAMETER LIST Parameter Description Available parameter Function Select 000:... - Page 16 Parameter Description Available parameter Communication method 000: Bluetooth wireless communication 001: Zbee wireless communication 002: RS232C output 003: USB memory 004: Bluetooth wireless printer 005: Addition (no communication) (default) 006: Audible grading Communication data 000: Net weight once (default) 001: Net, tare and gross weight once 002: Net and tare weight once...
- Page 17 EXPLANATION OF EACH USER PARAMETER Parameter# 01: Function Select The DP-6700 has Fixed weighing function, Checkweighing function, Grading function and Counting function. Choose the desired function for your purpose at parameter # 01. Note) When changing the function, all setting values for the previous function will be cleared.
-
Page 18: How To Change User Parameter
HOW TO CHANGE USER PARAMETER 1) How to change the setting of Auto-off Timer (Parameter No. 05) e.g.) Change the setting value at Parameter No. 05 from 003 (15 min. after no use) to 005 (60 min. after no use). Operation Display 1 Press... - Page 19 ADDITION Each weighing result can be accumulated and the total weight can be confirmed on the display. User parameter #11 shall be set in advance. Pre-setting Operation Display 1 Press to turn on the scale. 2 While pressing, press to enter the parameter setting mode. 3 Press to move the parameter No.
- Page 20 Manual addition Operation Display 1 Place an item on the platform. The weight (19kg in this case) is displayed. After the stable indicator is lit, press The display shows “Send” message and then the ADD indicator is lit. Automatic addition 1 Auto indicator is lit in automatic addition mode.
- Page 21 Total weight Operation Display 1 Confirm nothing on the platform. Hold down for a few seconds until the display changes. The lower five digits value with two decimals (456.78kg) is shown. Press again. The upper five digits value (123) is shown. As the result of 2.
-
Page 22: Multi-Function
MULTI-FUNCTION The DP-6700 is equipped with unique functions that are useful for speeding up your work with the signal light and buzzer. The unique functions are as follows. FIXED WEIGHING (PACKING) FUNCTION Application : Packing items to the target weight... - Page 23 GRADING FUNCTION Application : Sorting items up to 15 ranks How to weigh : Store the lower limit of each rank of the items on the scale and display the rank of the item based on the stored lower limits. Features : 1) Stating the rank in figures instead of the weighing value avoids man-caused errors.
- Page 24 FUNCTION SELECTION Operation Display While pressing, press to enter the user parameter setting mode. The judgment lamp becomes blue and the user parameter setting mode appears. Press to select the designated function and then press to store the setting. 000: Suspends functions (default) 001: Fixed weighing The parameter changes to 002: Checkweighing...
-
Page 25: Fixed Weighing Function
FIXED WEIGHING FUNCTION PRE-SETTING Operation Display Press to turn on the scale. While pressing , press to enter the user parameter setting mode. Set the value 001 (Fixed weighing function) by pressing Press twice. The display goes to the parameter # 03 (Buzzer setting). - Page 26 SETUP Note) The registered data of each item can be stored even if the scale is turned off. e.g.) Set the target weight of the Item No. 03 at 10kg and the allowable range at +1.5kg. Operation Display 1 Press to turn on the scale.
- Page 27 OPERATION e.g.) Recall the Item No. 3 (the target weight =10kg , the allowable range = 1.5kg) Operation Display Press to turn on the scale. Press briefly to recall the stored function. blinks. PACK Chose the item number by pressing e.g.) Items No.
-
Page 28: Checkweighing Function
CHECKWEIGHING FUNCTION PRE-SETTING Operation Display 1 Press to turn on the scale. While pressing , press to enter the user parameter setting mode. Set the desired value 002 by pressing 4 Press twice. The display goes to the parameter # 03 (Buzzer setting). - Page 29 SET-UP Note) The registered data of each item are stored even if the scale is turned off. e.g.) Set the acceptable weight of the Item No. 02 at 10 kg to 11 kg. Operation Display 1 Press to turn on the scale. 2 Confirm the platform is empty, and then press briefly.
- Page 30 OPERATION e.g.) Recall the Item No. 02 (the lower limit 10.00kg and the upper limit: 11.00kg). Operation Display 1 Press to turn on the scale. 2 Press briefly to recall the stored function. Press to choose your desired item No. (e.g.
-
Page 31: Grading Function
GRADING FUNCTION PRE-SETTING Operation Display 1 Press to turn on the scale. While pressing , press to enter the user parameter setting mode. 3 Set the parameter # 01 at 003 (Grading function) by pressing 4 Press to go to the next parameter 02. Set the desired value by pressing When sorting the item to 2 ranks, set the value 002. - Page 32 SETUP Set the lower limit of each rank and the upper limit of the upper rank. When sorting items to 2 ranks, it is necessary to input the 3 set-points. Note) The registered data of each item are stored even if the scale is turned off. e.g.) Sort the Item No.
- Page 33 Press again to set the out of rank. The display goes to the lower-setting screen of “out of rank 2”. Press to shift the digit and set the lower limit of out of rank 2 by pressing e.g.) When set “out of the rank 2” at 3.00kg or more, set the upper limit at 300.
- Page 34 OPERATION (Additive grading or Subtractive grading) e.g.) Set the parameter No. 8 at 000 (additive grading) or 001 (subtractive grading) in advance, referring to page 29 section 6. Recall the Item No. 5 sorted to 2 ranks (Rank1 = 1.00 kg to 1.99 kg, Rank2 = 2.00 kg to 2.99 kg) and start the grading operation.
-
Page 35: Counting Function
COUNTING FUNCTION PRE-SETTING Operation Display 1 Press to turn on the scale. While pressing , press to enter the user parameter setting mode. Set the parameter # 01 at 004 (Counting function) by pressing SETUP Calculate the average unit weight from 100 samples. Operation Display 1 Press... - Page 36 OPERATION e.g.) Do counting work based on the unit weight calculation from 100 samples. Operation Display 1 Press to turn on the scale. The judgment lamp lights in blue. Press again after confirming sample quantity is 100. The judgment lamp lights in red when no stored unit weight exists. 2 Place the items on the pan.
-
Page 37: Error Messages
ERROR MESSAGES The scale automatically checks up various functions. When one of the following error messages appears on the display, follow the troubleshooting instruction. Contact the dealer from which the product was purchased, if other messages than the following appear, or an error is not recovered after following the troubleshooting. Display Cause Troubleshooting... - Page 38 Display Cause Troubleshooting Turned on the scale while Check if a foreign material is not stuck or does not contact the platform cover. a foreign material was stuck between the main Then press . When the scale does body and the platform not return to normal, contact the dealer cover.
- Page 39 Display Cause Troubleshooting The accumulated weight Reset the total weight and total count or count exceeds the after confirming their data. memory capacity. The total overflow This message appears Turn off the scale. And reapply the when a trouble was power after a brief interval.
- Page 40 Display Cause Troubleshooting This message appears Turn off the scale. And reapply the when a trouble was power after a brief interval. detected in the electronic When the scale does not return to circuit. normal, contact the dealer. Trouble in electronic circuit This message appears Turn off the scale.
- Page 41 Display Cause Troubleshooting This message appears Turn off the scale. And reapply the when a trouble was power after a brief interval. detected in the electronic When the scale does not return to circuit. normal, contact the dealer. Trouble in electronic circuit This message appears Turn off the scale.
-
Page 42: Specifications
SPECIFICATIONS The appearance and specifications are subject to change without notice for improvement. Name of the scale (Model): DP-6700 Weighing system: Strain-gauge load cell Dimensions of the platform: 500W mm x 350D mm Capacity and Increment Weighing capacity Minimum Increment... - Page 43 Functions Zero reset Reset the zero pint Tare One-touch tare Auto-off timer Power off automatically after the setting time passes at battery operation. Auxiliary judgment LED shows the weighing status at multi-functions. Fixed weighing function Max. 99 items can be registered. Checkweighing function Max.
- Page 44 YAMATO SCALE CO., LTD. 5-22 Saenba-cho, Akashi 673-8688, Japan Telephone: +81-78-918-6157 Telefax. +81-78-918-5562 PRINTED IN JAPAN...
