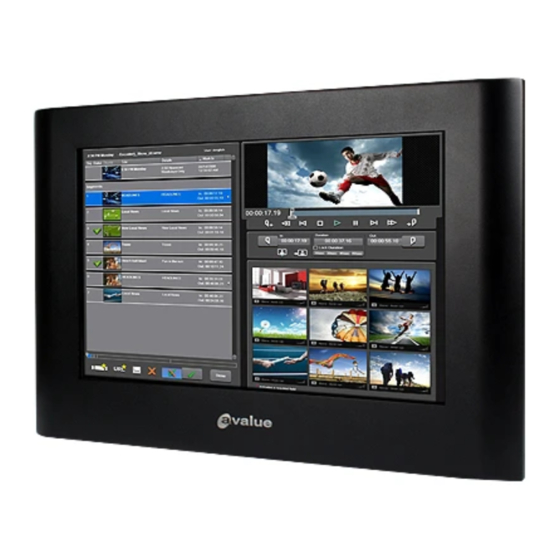

- Page 1 FPC-10W07 10” Widescreen Multi-functional Touch Panel PC Quick Reference Guide Ed – 09 October, 2013 Copyright Notice Copyright © 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017F107A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
External Serial Port 1 connector (COM1) .................. 11 2.2.2 External Serial Port 2 connector (COM2) .................. 12 Installing Hard Disk & Memory ................13 Install 2.5” HDD .......................... 13 2.3.1 Installing System Memory ................... 15 Installing CF Card ....................16 4 FPC-10W07 Quick Reference Guide... -
Page 5: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x FPC-10W07 Panel PC 1 x Quick Reference Guide ... -
Page 6: System Specifications
2 x RJ-45（Dual Intel® 82574L Gigabit Ethernet） Ethernet 1 x HDMI HDMI 1 x Line out, 1 x Mic in Audio port 5 x USB 2.0 Mouse & KB 1 x PS/2 keyboard & mouse connector (Optional) 1 x DB15 6 FPC-10W07 Quick Reference Guide... - Page 7 Operating Temperature 0°C to 40°C. Storage Temperature -10°C to 50°C. 10% to 95% @ 40℃, non-condensing Relative Humidity Mounting Wall/Stand/VESA 75 mm X 75 mm Dimensions 300mm X 195 mm X 56 mm Weight 2.95 Kgs FPC-10W07 Quick Reference Guide...
-
Page 8: System Overview
(Optional KB/MS for LAN2) LINE OUT Line-out audio jack Mic In Mic-in audio jack Power S/W Power switch Power LED 5 x USB 2.0 connector HDMI HDMI connector VGA connector 26V DC in +12V/+26V DC in connector (Optional) 8 FPC-10W07 Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.5.1 FPC-10W07 (Unit: mm) FPC-10W07 Quick Reference Guide... -
Page 10: Hardware Configuration
Configuration 2.1 Jumper and Connector Setting, Driver and BIOS Installing Please refer to ECM-CDV Quick Installation Guide or User’s Manual for further information. Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 FPC-10W07 Quick Reference Guide... -
Page 11: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory 2.2.1 External Serial Port 1 connector (COM1) Signal Signal DCDA# RXDA TXDA DTRA# DSRA# RTSA# CTSA# RIA# FPC-10W07 Quick Reference Guide 11... -
Page 12: External Serial Port 2 Connector (Com2)
In RS-232 Mode Signal PIN PIN Signal DCDB# RXDB TXDB DTRB# DSRB# RTSB# CTSB# RIB# In RS-422 Mode Signal PIN PIN Signal TxD1- RxD1+ TxD1+ RxD1- In RS-485 Mode Signal PIN PIN Signal DATA1- DATA1+ 12 FPC-10W07 Quick Reference Guide... -
Page 13: Installing Hard Disk & Memory
Quick Reference Guide 2.3 Installing Hard Disk & Memory 2.3.1 Install 2.5” HDD Step 1. Unfasten 10 screws as above to remove the bottom chassis. Step 2. Unlock 2 screws of the HDD bracket as indicated. FPC-10W07 Quick Reference Guide 13... - Page 14 Step 4. Place and plug the HDD assembled to the HDD connector (either one of SATA) and fix the HDD with 2 screws as indicated on Step 2. Note: There’s only one HDD connector the board and the default is SATA. 14 FPC-10W07 Quick Reference Guide...
-
Page 15: Installing System Memory
Quick Reference Guide 2.4 Installing System Memory Step 1. Remove 6 screws as above and have the front panel and box pc separated. Step 2. Install the system RAM as shown above. FPC-10W07 Quick Reference Guide 15... -
Page 16: Installing Cf Card
FPC-10W07 2.5 Installing CF Card Step 1. Unlock 2 screws from the rear side of the panel PC as above. Step 2. Put the CF card into the socket and fasten 2 screws back. 16 FPC-10W07 Quick Reference Guide...
