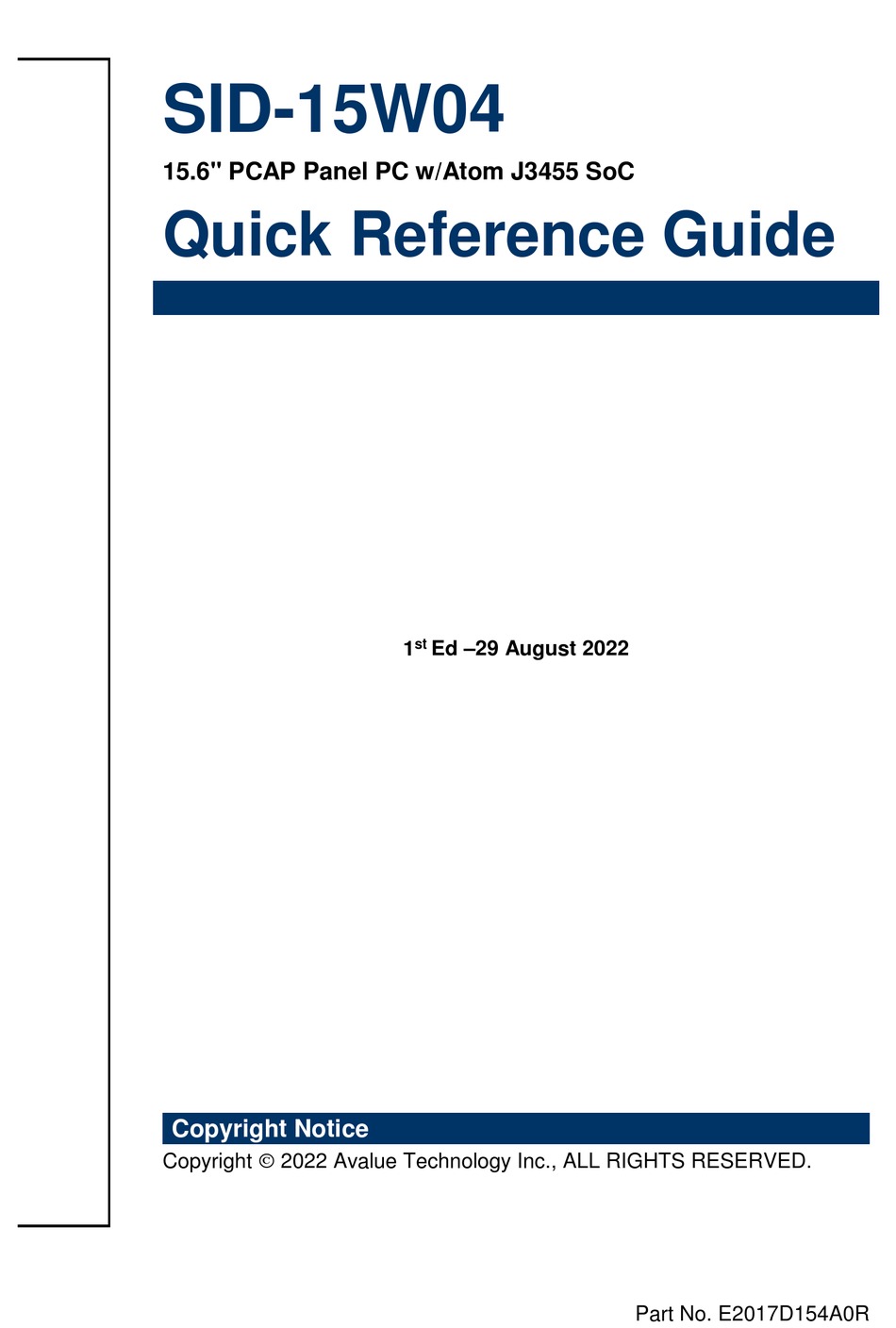

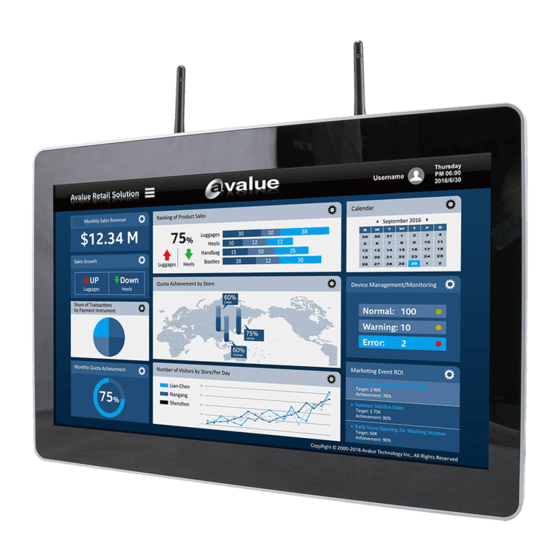

- Page 1 SID-15W04 15.6" PCAP Panel PC w/Atom J3455 SoC Quick Reference Guide Ed –29 August 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017D154A0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-15W04 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
1.4.1 Front View ..........................10 1.4.2 Rear View ........................... 10 System Dimensions ..................... 11 Hardware Configuration ................... 12 SID-15W04 connector mapping................13 2.1.1 Serial port connector (COM3) ....................13 2.1.2 Serial port connector (COM1) ....................13 2.1.3 RJ-45 Ethernet connector (LAN) ....................14 2.1.4... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-15W04 Panel PC 1 x AC 60W Adapter ... -
Page 7: System Specifications
1x DB9 for RS-485, COM1(Default) 1x Power button w/ LED Switch 1x Power sw button_90D Wireless Antenna 2x Dipole Antenna LTE Antenna 2x Dipole Antenna (Optional) Mechanical Power Type 12V~24V wide voltage DC input Power Connector DC jack SID-15W04 Quick Reference Guide... - Page 8 5. No. of Shock: Z axis 300 times 6. Test Axis: Z axis Reference ISTA 2A, Method: IEC-60068-2-32 Test:Ed Drop Test 1. Test Phase: One comer, three edges, six faces 2. Packing weight: around 1.5kg 8 SID-15W04 Quick Reference Guide...
- Page 9 Test high: 96.5cm (Based on product weight Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Storage -20°C ~ 60°C (-4°F ~ 140°F) Temperature Note: Specifications are subject to change without notice. SID-15W04 Quick Reference Guide...
-
Page 10: System Overview
2 x USB3.0 connector Power on button Power DC power-in connector DC jack DCIN RJ-45 Ethernet connector COM3 Serial port connector DB9 for RS-232 connector COM1 Serial port connector DB9 for RS-485 connector Out-of-band connector Optional OOB 10 SID-15W04 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) SID-15W04 Quick Reference Guide 11... -
Page 12: Hardware Configuration
SID-15W04 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SID-15W04 Quick Reference Guide... -
Page 13: Sid-15W04 Connector Mapping
Quick Reference Guide 2.1 SID-15W04 connector mapping 2.1.1 Serial port connector (COM3) Signal PIN PIN Signal 2.1.2 Serial port connector (COM1) Signal PIN PIN Signal 485_422TX1- 485_422TX1+ SID-15W04 Quick Reference Guide 13... -
Page 14: Ethernet Connector (Lan)
SID-15W04 2.1.3 RJ-45 Ethernet connector (LAN) Signal 2.1.4 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 14 SID-15W04 Quick Reference Guide... -
Page 15: Usb3.0 Connector (Usb3.0)
Quick Reference Guide 2.1.5 USB3.0 connector (USB3.0) Signal PIN PIN Signal USB_JUSB1_RX_N USB_JUSB1_N USB_JUSB1_RX_P USB_JUSB1_P USB_JUSB1_TX_N USB_JUSB1_TX_P SID-15W04 Quick Reference Guide 15...
