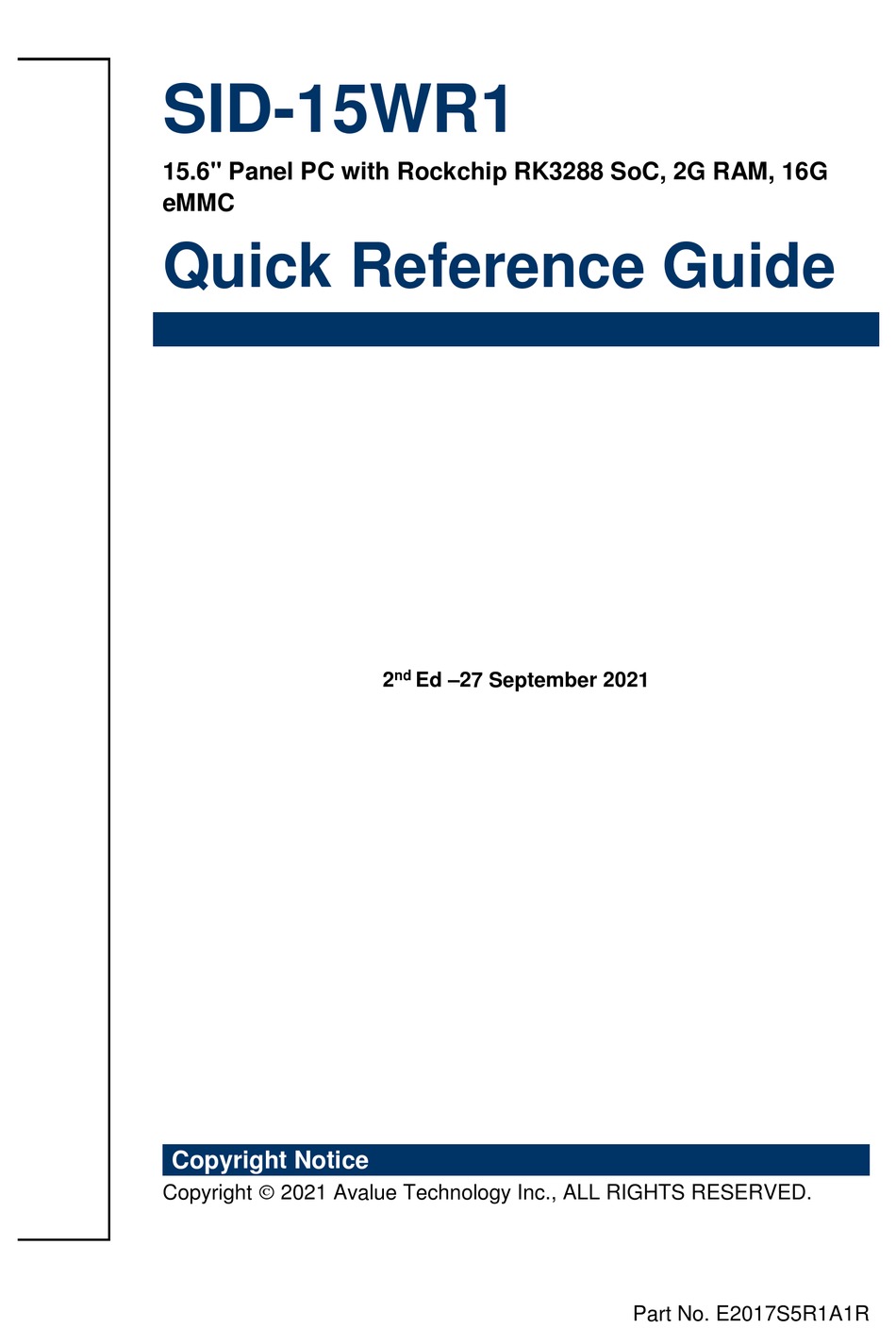

- Page 1 SID-15WR1 15.6" Panel PC with Rockchip RK3288 SoC, 2G RAM, 16G eMMC Quick Reference Guide Ed –27 September 2021 Copyright Notice Copyright 2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S5R1A1R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-15WR1 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
System Specifications ................... 8 System Overview ....................11 1.4.1 I/O View ............................11 System Dimensions ..................... 12 Hardware Configuration ................... 13 SID-15WR1 connector mapping ................14 2.1.1 Serial port connector (COM) ...................... 14 2.1.2 RJ-45 Ethernet connector (LAN) ....................14 2.1.3 HDMI connector (HDMI) ...................... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-15WR1 Panel PC 1 x Power adapter ... - Page 7 Do not crush, puncture, dispose of in fire, short the external contacts, or expose to water or ther liquids. Dispose of the battery in accordance with local regulations and instructions from your service provider. SID-15WR1 Quick Reference Guide...
-
Page 8: System Specifications
1 x Gigabit Ethernet (RJ-45 connector) Wireless LAN 1 x Dipole Antenna Antenna Switch 1x Power button w/ LED Others 1 x Reset button Power Requirement/Mechanical Power Type 12V~24V wide voltage DC input Power Connector 2.5mm DC-in jack Type 8 SID-15WR1 Quick Reference Guide... - Page 9 5. No. of Shock: Z axis 300 times 6. Test Axis: Z axis Reference ISTA 2A, Method: IEC-60068-2-32 Test:Ed Packing Drop Test 1. Test Phase: One comer, three edges, six faces 2. Packing weight: around 1.5kg SID-15WR1 Quick Reference Guide...
- Page 10 3. Test high: 96.5cm (Based on product weight Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Note: Specifications are subject to change without notice. 10 SID-15WR1 Quick Reference Guide...
-
Page 11: System Overview
Audio line-out connector Head phone jack HDMI HDMI connector HDMI type A USB2.0 2 x USB2.0 connector USB type A DC power-in connector DC jack DCIN RJ-45 Ethernet connector Serial port connector DB-9 male connector SID-15WR1 Quick Reference Guide 11... -
Page 12: System Dimensions
SID-15WR1 1.5 System Dimensions (Unit: mm) 12 SID-15WR1 Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw SID-15WR1 Quick Reference Guide 13... -
Page 14: Sid-15Wr1 Connector Mapping
SID-15WR1 2.1 SID-15WR1 connector mapping 2.1.1 Serial port connector (COM) Signal PIN PIN Signal 2.1.2 RJ-45 Ethernet connector (LAN) Signal LAN_MDI0+ LAN_MDI0- LAN_MDI1+ LAN_MDI2+ LAN_MDI2- LAN_MDI1- LAN_MDI3+ LAN_MDI3- 14 SID-15WR1 Quick Reference Guide... -
Page 15: Hdmi Connector (Hdmi)
Quick Reference Guide 2.1.3 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 2.1.4 USB2.0 connector (USB2.0) Signal Data- Data+ SID-15WR1 Quick Reference Guide 15...
