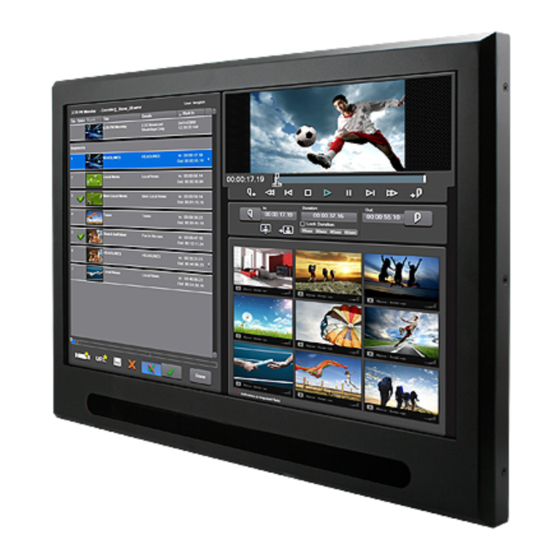

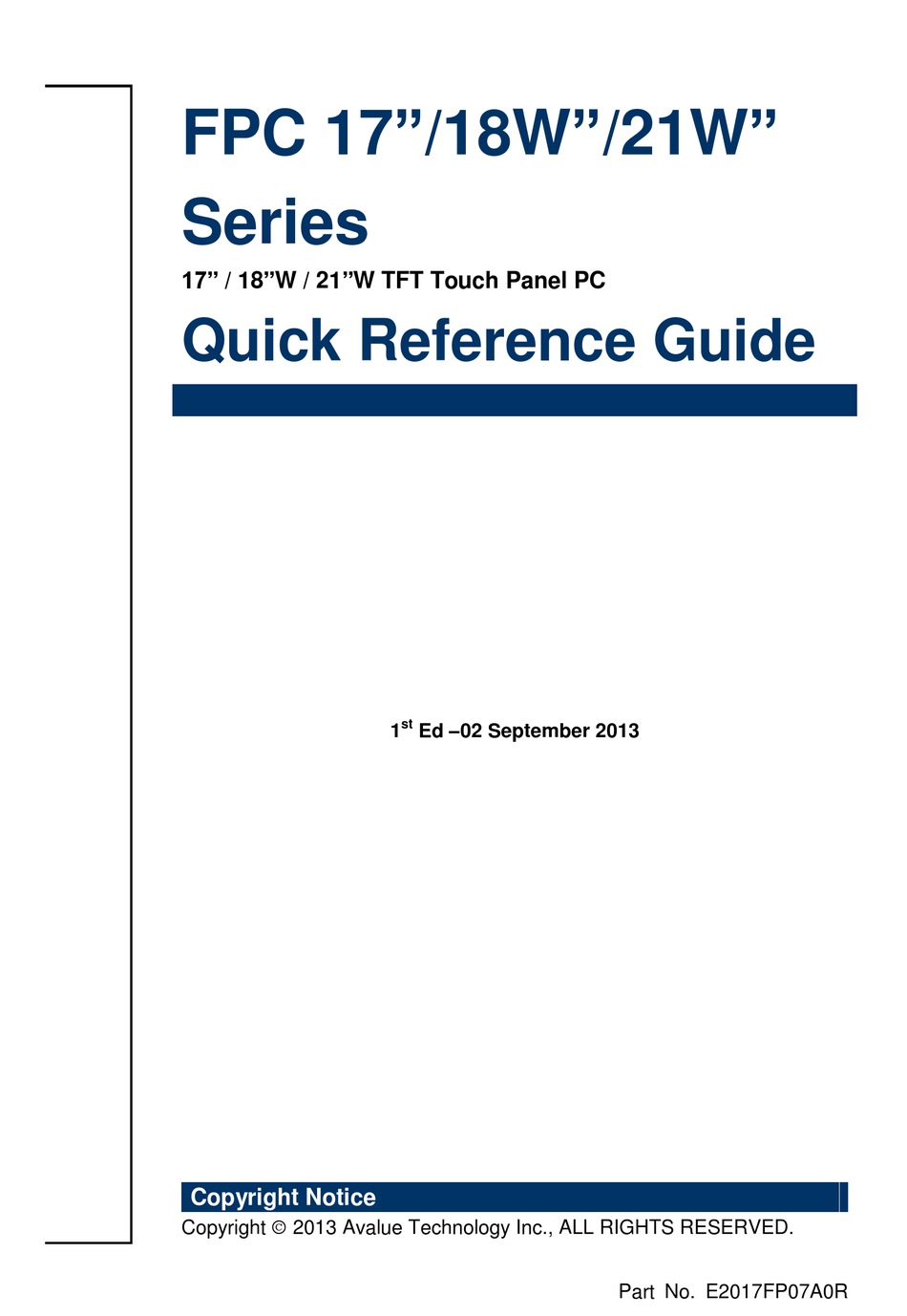

- Page 1 17”/18W”/21W” Series 17” / 18”W / 21”W TFT Touch Panel PC Quick Reference Guide Ed –02 September 2013 Copyright Notice Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017FP07A0R...
-
Page 2: Getting Started
FPC 17”/18W”/21W” Series 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 3: System Specifications
Quick Reference Guide 1.3 System Specifications Component FPC-1707 FPC-18W07 FPC-21W07 Mother Board EMX-CDV Onboard Intel® Atom™ D2550 1.86GHz CPU CPU Cooler (Type) Fanless Heatsink Two 204-pin SODIMM Supports Up to 4GB DDR3 1066MHz Memory SDRAM System Power +12V DC Power Input Requirements Input: 100 ~ 250Vdc/ 47 ~ 63Hz Adapter... - Page 4 FPC 17”/18W”/21W” Series Dimension 387.5mm x 346mm 459.5mm x 309mm 526mm x 346.5mm x 76.6mm x 79.6mm x 80.4mm Weight 6.14Kgs 5.77Kgs 7.32Kgs Color Black Fanless Fanless Reliability EMI Test Class B Safety CE FCC Operating Temperature 0°C ~ 40°C Operating Humidity 0%~90% relative humidity, non-condensing Storage Temperature...
-
Page 5: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Rear View Connectors Label Function Note COM1~4 Serial port connector1~4 DB-9 male connector HDMI HDMI connector DB-15 female connector VGA connector PS/2 PS/2 connector LAN1 RJ-45 Ethernet 1 LAN2 RJ-45 Ethernet 2 LINE IN Line-in audio jack LINE OUT Line-out audio jack... -
Page 6: System Dimensions
FPC 17”/18W”/21W” Series 1.5 System Dimensions 1.5.1 FPC-1707 (Unit: mm) Warning: Use suitable mounting apparatus to avoid risk of injury 6 FPC 17”/18W”/21W” Series Quick Reference Guide... - Page 7 Quick Reference Guide 1.5.2 FPC-18W07 (Unit: mm) Warning: Use suitable mounting apparatus to avoid risk of injury FPC 17”/18W”/21W” Series Quick Reference Guide...
- Page 8 FPC 17”/18W”/21W” Series 1.5.3 FPC-21W07 (Unit: mm) Warning: Use suitable mounting apparatus to avoid risk of injury 8 FPC 17”/18W”/21W” Series Quick Reference Guide...
- Page 9 Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- FPC 17”/18W”/21W” Series Quick Reference Guide or User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw FPC 17”/18W”/21W” Series Quick Reference Guide...
- Page 10 FPC 17”/18W”/21W” Series 2.1 FPC 17”/18W”/21W” Series connector mapping 2.1.1 Serial Port connector 1~4 (COM1~4) Signal PIN PIN Signal NDCD_D- NDSR- NRXD_D- NRTS- NTXD_D- NCTS- NDTR_D- NRI- 10 FPC 17”/18W”/21W” Series Quick Reference Guide...
-
Page 11: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory WARNING: Make sure the power is completely cut off before opening the device. Remove 12 screws as indicated below to open the back of the chassis. 2.2.1 Install Memory Step 1. Insert the SODIMM into the memory socket. FPC 17”/18W”/21W”... - Page 12 FPC 17”/18W”/21W” Series 2.2.2 Install HDD Step 1. Attach the HDD bracket to the 2.5” SATA HDD by means of 4 screws as shown above, and then connect HDD data and power cables. Step 2. Position the HDD bracket & 2.5” SATA HDD assembly into the chassis and lock with 4 screws as indicated above.
