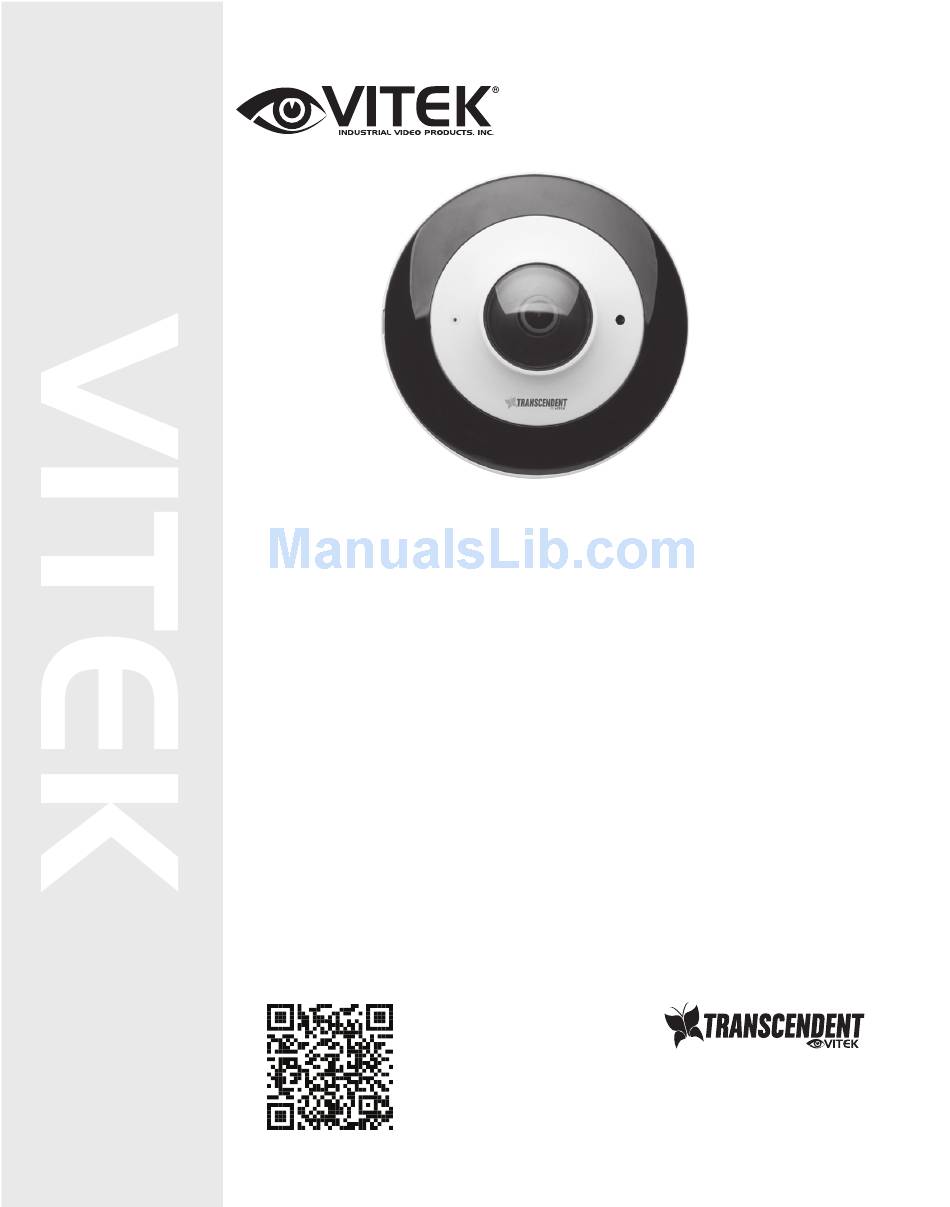

Vitek VTD-TND6FP User Manual

Vitek VTD-TND6FP User Manual

Transcendent series 6 megapixel h.265 ip vandal 360 fisheye camera w/6 ir leds
Hide thumbs Also See for VTD-TND6FP:
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
• 1/2.9" 6.0 MegaPixel CMOS Image Sensor
• Up to 30fps live view @ 6 MegaPixel
• Multiple Views: 360° Overview, Double 180° Panorama View, Overview +
3 Views, and Single View
• 1.07mm @ F2.5 Fisheye Lens with 180° horizontal field of view (wall
mounted) / 360° (ceiling mounted)
• 6 High Power Covert IR LEDs with 50' IR Range
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• ROI Encoding
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD memory card slot for Local recording supporting up to 128GB
MicroSDXC cards
• IP66 Weather Resistance & IK10 Impact Resistance Rating
• Two Way Audio
• 12VDC & PoE (Power over Ethernet) Operation
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
VTD-TND6FP
Transcendent Series 6 Megapixel
H.265 IP Vandal 360° Fisheye
Camera w/6 IR LEDs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTD-TND6FP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTD-TND6FP

Summary of Contents for Vitek VTD-TND6FP

  • Page 1 VTD-TND6FP Transcendent Series 6 Megapixel H.265 IP Vandal 360° Fisheye Camera w/6 IR LEDs FEATURES • 1/2.9” 6.0 MegaPixel CMOS Image Sensor • Up to 30fps live view @ 6 MegaPixel • Multiple Views: 360° Overview, Double 180° Panorama View, Overview + 3 Views, and Single View •...
  • Page 2 Transcendent 6 MegaPixel Fisheye Camera Please use the specified power supply to connect. Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.

  • Page 3: Table Of Contents

    Transcendent 6 MegaPixel Fisheye Camera Table of Contents IE Remote Access ....................4 LAN ..........................4 Access through IP-Tool..................4 1.1.1 1.1.2 Directly Access through IE ................... 5 WAN ..........................7 Live View ......................9 Remote Configuration ..................13 System Configuration......................13 Basic Information .....................
  • Page 4 Transcendent 6 MegaPixel Fisheye Camera 3.7.3 Upgrade ......................35 Operation Log ....................36 3.7.4 Search ......................36 Photo Search ........................36 Video Search........................37 Local Video Search ................... 37 4.2.1 4.2.2 SD Card Video Search ..................38 Main Features l ICR auto switch, true day/night l 3D DNR, digital WDR l ROI coding l Support BLC, HLC, Anti-flicker...

  • Page 5: Ie Remote Access

    Transcendent 6 MegaPixel Fisheye Camera 1 IE Remote Access You can connect to the IP Camera via LAN or WAN using IE (Internet Explorer) In LAN, there are two ways to access the IP-Camera: 1. access through IP-Tool; 2. directly access through IE browser.

  • Page 6: Directly Access Through Ie

    Transcendent 6 MegaPixel Fisheye Camera For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting. The default password of the administrator is “123456”.
  • Page 7 Transcendent 6 MegaPixel Fisheye Camera Data port: 9008 You may use the above default settings when you log into the camera for the first time. You may directly connect the camera to the computer through network cable. ① Manually set the IP address of the PC and the network segment should be as the same as the default settings of the IP camera.

  • Page 8: Wan

    Transcendent 6 MegaPixel Fisheye Camera ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. ③ After downloading Active X control, you will see a login dialog box. ④...
  • Page 9 Transcendent 6 MegaPixel Fisheye Camera IP Setup ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. Router Setup ④ Open the IE browser and input its WAN IP and http port to access. (for example, if you change your http port to 81, input “192.198.1.201:81”...

  • Page 10: Live View

    Transcendent 6 MegaPixel Fisheye Camera ② Go to Config àNetworkàTCP/IPàPPPoE Config menu. Enable PPPoE and then input the user name and password which you can get from your internet service provider. ③ Go to Config àNetworkàDDNS menu. Before you configure the DDNS, please apply for a domain name first.
  • Page 11 Transcendent 6 MegaPixel Fisheye Camera In the live mode, you can switch different streams and live preview modes, capture live images, enable live audio and record, etc. The following table is the instructions of the icons on the live view interface. Icon Description Icon...
  • Page 12 Transcendent 6 MegaPixel Fisheye Camera Fisheye+ 3PTZ view mode Panoramic + 3PTZ view mode...
  • Page 13 Transcendent 6 MegaPixel Fisheye Camera 4PTZ view mode (you need to switch the stream mode in the fisheye parameter interface) In panoramic + 3PTZ view mode or fisheye + 3PTZ view mode or 4PTZ view mode, select a PTZ window and view the image from every direction by controlling PTZ panel. Click to unfold the control panel.

  • Page 14: Remote Configuration

    Transcendent 6 MegaPixel Fisheye Camera Icon Description Icon Description Click it to rotate the dome Click it to rotate the dome diagonally up-left diagonally up-right. Click it to rotate the dome Click it to stop rotating the dome. upwards. Click it to rotate the dome Click it to rotate the dome towards towards left right.

  • Page 15: Date And Time

    Transcendent 6 MegaPixel Fisheye Camera 3.1.2 Date and Time Go to ConfigàSystemàDate and Time. Please refer to the following interface. You can select the time zone and DST as required. Click “Date and Time” tab to set the time mode. 3.1.3 Local Config Go to ConfigàSystemàLocal Config.

  • Page 16: Storage

    Transcendent 6 MegaPixel Fisheye Camera 3.1.4 Storage Go to ConfigàSystemàStorage to go to the interface as shown below. The first time you use the SD card, you should click the “Format” button to format the SD card. Click “Pop Up” button to stop writing data to SD card. Then the SD card can be ejected safely. Note: Using of SD card function should be coordinated with motion or sensor alarm.

  • Page 17: Image Configuration

    Transcendent 6 MegaPixel Fisheye Camera Stream mode: Fisheye + Panoramic view + 3PTZ & Fisheye or 4PTZ mode are optional. Installation method: Wall, ceiling and desktop are optional. Please select the installation mode according to the actual installation method. Image Configuration Image Configuration includes Display, Video/Audio, OSD, Video Mask and ROI Config (the lens control function is available for the models with motorized zoom lens).

  • Page 18: Video / Audio Configuration

    Transcendent 6 MegaPixel Fisheye Camera HWDR As to the WDR scene, WDR will help the camera provide clear images when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the lowlight area.
  • Page 19 Transcendent 6 MegaPixel Fisheye Camera Channel ID: Select streams for different channels. IP Channel 1: Fisheye view channel, 3 streams can be set. Please set them according to the actual network condition. IP Channel 2: Panoramic view channel, 2 streams can be set. Please set them according to the actual network condition.

  • Page 20: Osd Configuration

    Transcendent 6 MegaPixel Fisheye Camera 3.2.3 OSD Configuration Go to ImageàOSD interface as shown below. You may set time stamp, device name and OSD content here. After enabling the corresponding display and entering the content, drag them to change their position. Then click “Save” button to save the settings.

  • Page 21: Roi Configuration

    Transcendent 6 MegaPixel Fisheye Camera Clear the video mask: Go to video mask interface and then click “Clear” button to delete the current video mask area. 3.2.5 ROI Configuration Go to ImageàROI Config interface as shown below. 1. Check “Enable” and then click “Draw Area” button. 2.

  • Page 22: Alarm Configuration

    Transcendent 6 MegaPixel Fisheye Camera Go to PTZàProtocol interface as shown below. Here the protocol and baud-rate must be the same with these of the keyboard. Address: 1; you can control PTZ channel 1 by using this address in the keyboard. Address: 2;...
  • Page 23 Transcendent 6 MegaPixel Fisheye Camera Alarm Out: If selected, this would trigger the external relay output on detecting a motion based alarm. Trigger Snap: If selected, the system will capture images on an alarm and save the images onto the SD card. Trigger SD Recording: If selected, the recording will be triggered and saved onto the SD card on an alarm.

  • Page 24: Alarm In

    Transcendent 6 MegaPixel Fisheye Camera Week schedule Set the alarm time from Monday to Sunday for alarm everyday in one week. The lengthwise means one day of a week; the rank means 24 hours of a day. Green means selected area. Blank means unselected area.

  • Page 25: Alarm Out

    Transcendent 6 MegaPixel Fisheye Camera 1. Enable alarm and set the alarm type, alarm holding time and sensor name. 2. Set alarm trigger options. The setting steps are the same with that of motion detection. Please refer to motion detection chapter for details. 3.

  • Page 26: Network Configuration

    Transcendent 6 MegaPixel Fisheye Camera Network Configuration 3.5.1 TCP/IP Go to ConfigàNetworkàTCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP address automatically by DHCP protocol and use the following IP address.

  • Page 27: Port

    Transcendent 6 MegaPixel Fisheye Camera Trigger Email: when the IP address of the device is changed, a new IP address will be sent to the appointed mailbox automatically Trigger FTP: when the IP address of the device is changed, a new IP address will be sent to FTP server.

  • Page 28: Ddns

    Transcendent 6 MegaPixel Fisheye Camera the VMS. 3. Input the above-mentioned server address, server port and device ID in the corresponding boxes. Click “Save” button to save the settings. 3.5.4 DDNS If your camera is set to use PPPoE as its default network connection, DDNS should be set for network access.

  • Page 29: Snmp

    Transcendent 6 MegaPixel Fisheye Camera After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 3.5.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set the SNMP function.

  • Page 30: Rtsp

    Transcendent 6 MegaPixel Fisheye Camera 3.5.6 RTSP Go to ConfigàNetworkàRTSP.

  • Page 31: Upnp

    Transcendent 6 MegaPixel Fisheye Camera 1. Select “Enable”. 2. RTSP Port: Access port of the streaming media. The default number is 554. 3. RTSP Address: The RTSP address is what you need to input into the media player. Input it into the media player according to the format listed above.

  • Page 32: Ftp

    Transcendent 6 MegaPixel Fisheye Camera Sender Address: sender’s e-mail address. User name and password: sender’s user name and password. Server Address: The SMTP IP address or host name. Select the secure connection type at the “Secure Connection” pull-down list according to actual needs.

  • Page 33: Security Configuration

    Transcendent 6 MegaPixel Fisheye Camera Server Name: The name of the FTP. Server Address: The IP address or domain name of the FTP. Upload Path: The path of uploading the files. Port: The port of the FTP. Use Name and Password: The username and password used to log into the FTP. Security Configuration 3.6.1 User Configuration Go to ConfigàSecurityàUser interface as shown below.
  • Page 34 Transcendent 6 MegaPixel Fisheye Camera 2. Input user name in “User Name” textbox. 3. Input letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the use type. Administrator has all permissions. Common user can only view the live image.

  • Page 35: Online User

    Transcendent 6 MegaPixel Fisheye Camera 1. Select the user you want to delete in the user configuration list box. 2. Click “Delete” button to delete the user. Note: The default super administrator cannot be deleted. 3.6.2 Online User Go to ConfigàSecurityàOnline User. You can view the user who is viewing live video. 3.6.3 Block and Allow Lists Go to ConfigàSecurityàBlock and Allow Lists interface as shown below.

  • Page 36: Reboot

    Transcendent 6 MegaPixel Fisheye Camera Import & Export Settings You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. Click “Import Setting” or “Export Setting” button. Default Settings Click “Load Default”...

  • Page 37: Operation Log

    Transcendent 6 MegaPixel Fisheye Camera 3.7.4 Operation Log To query and export log: 1. Go to ConfigàMaintenanceàOperation Log. 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log. 4 Search Photo Search Click SearchàPhoto to go to the interface as shown below.

  • Page 38: Video Search

    Transcendent 6 MegaPixel Fisheye Camera The descriptions of the buttons are shown as follows. Icon Description Icon Description Close: Select a picture and click Close all: Click this button to close this button to close this picture. all pictures viewing. Save: Click this button to select Save all: Click this button to select the save path of the picture on the...

  • Page 39: Sd Card Video Search

    Transcendent 6 MegaPixel Fisheye Camera recorded files. Double click the recorded file to play the recording. The descriptions of the buttons on the playback interface are as follows. Icon Description Icon Description Play button. After pausing the video, click this button Pause button.
  • Page 40 Transcendent 6 MegaPixel Fisheye Camera 5.12”...
  • Page 41 14ºF~122ºF (-10º~50ºC) / 10~90% RH Weight 15.24oz. / 0.95oz. / 432g Dimensions 1.54” x 5.12” (39×130mm) *Please research local, state and federal laws regarding the implementation of audio surveillance. (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
  • Page 42 Transcendent 6 MegaPixel Fisheye Camera CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TNR Series Transcendent Series 4, 8, 16, 32, and 64 Channel 8 MegaPixel (4K) Output H.265 Real Time Network Video Recorders with 4K HDMI • 4, 8, 32, and 64 Channel Stand-alone Real-time IP Network Video Recorders •...
  • Page 43 Transcendent 6 MegaPixel Fisheye Camera OPTIONAL MOUNTS AVAILABLE VT-TJB-F1 Junction Box for Transcendent VTD- TND6FP Fisheye Dome Camera VT-TWM-F Wall Mount for Transcendent VTD- TND6FP Fisheye Dome Camera VT-TPDM-F Pedestal Mount for Transcendent VTD-TND6FP Fisheye Dome Camera...
  • Page 44 VITEK warrants to the purchaser that products manu- factured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
