FEATURES
• 1/2.8" 2.0 MegaPixel Progressive Scan CMOS
Sensor
• Advanced Starlight Technology Offers Dramatically
Higher Sensitivity to Light Producing Color Images in
Very Dark & Night Scenes
• High Definition Analog (HDA): HD-TVI / AHD / CVI
/ CVBS (Selectable) Video Output
• 2.8-12mm Motorized Varifocal Lens
• Matrix IRs with up to 165' Range (VTC-THB2RMS),
Matrix IRs with up to 165' Range (VTC-THT2RMS),
Matrix IRs with up to 100' Range (VTD-THD2RMS)
PLEASE NOTE:
Complete User Guide, Software, Tools,
and Updates are available online. Scan
the QR Code or visit:
http://www.vitekcctv.com/Downloads

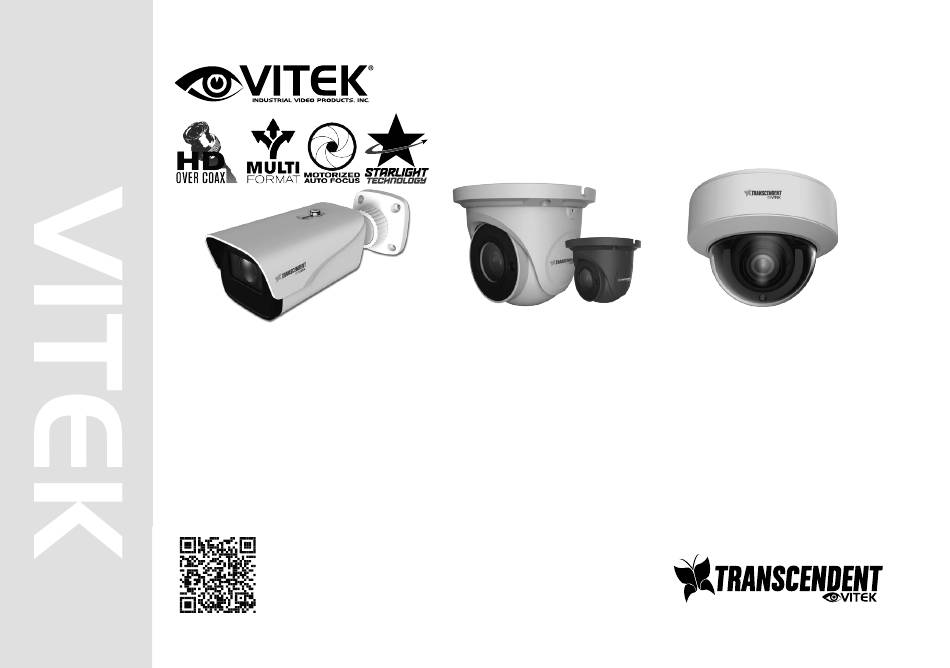

Transcendent 2.0 Megapixel Indoor/Outdoor
4-IN-1 Starlight Motorized Lens Cameras
* VTC-THT2RMS also available in
charcoal (VTC-THT2RMSB)
• True Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP67 Weather Resistance
IK10 (VTD-THD2RMS Only)
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on
cable characteristics and integrity)
• Optional Mounts Available (see rear page)
• 12VDC Operation
• 3 Year Warranty
VTC-THB2RMS
VTC-THT2RMS
VTD-THD2RMS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTC-THB2RMS
Summary of Contents for Vitek Transcendent VTC-THB2RMS
- Page 1 VTC-THB2RMS VTC-THT2RMS VTD-THD2RMS Transcendent 2.0 Megapixel Indoor/Outdoor 4-IN-1 Starlight Motorized Lens Cameras * VTC-THT2RMS also available in charcoal (VTC-THT2RMSB) FEATURES • True Wide Dynamic Range (WDR) • 1/2.8” 2.0 MegaPixel Progressive Scan CMOS Sensor • True Mechanical Day/Night function by ICR •...
-
Page 2: Safety Precaution
Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful... -
Page 3: Video Connection
Video Connection VTC-THB2RMS - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Video Output Mode Switch: Overview Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable. -
Page 4: Installation
2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 5 Video Connection VTC-THT2RMS Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Allen Key Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 Video Connection VTD-THD2RMS Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Overview Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.
- Page 8 Installation Before beginning installation, make sure that the wall or ceiling is 4. Adjust the Three-axis camera bracket to obtain the optimium strong enough to withstand 3 times the weight of the camera. The viewing angle. mounting steps are as follows: Pan: 0°~240°...
- Page 9 Adjusting the Motorized Lens 1. Click once on the image you want to adjust and then click on the PTZ icon on the sub toolbar 2. The PTZ screen will open and using the Zoom -/+ the lens in the camera will now Zoom in or out and will auto focus...
-
Page 10: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 11 Detailed Specifications VTC-THB2RMS VTC-THT2RMS / VTC-THT2RMSB VTD-THD2RMS Image Sensor 1/2.8” 2 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology Signal System NTSC/PAL Effective Pixels 1920 x 1080 Resolution HD-TVI / AHD / CVI: 2 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Lens 2.8-12mm Motorized Varifocal...
- Page 12 Pair for HD-TVI / AHD Pair for HD-TVI / AHD Select Transcen- Adapter (requires Adapter (requires / CVI for Distances Up / CVI for Distances Up dent Motorized Pair with VITEK Transcendent VT-TJB08 (for VT-TJB08 (for to 1440’ to 1000’ Domes (requires VTC-THB2RMS), VTC-THB2RMS),...
