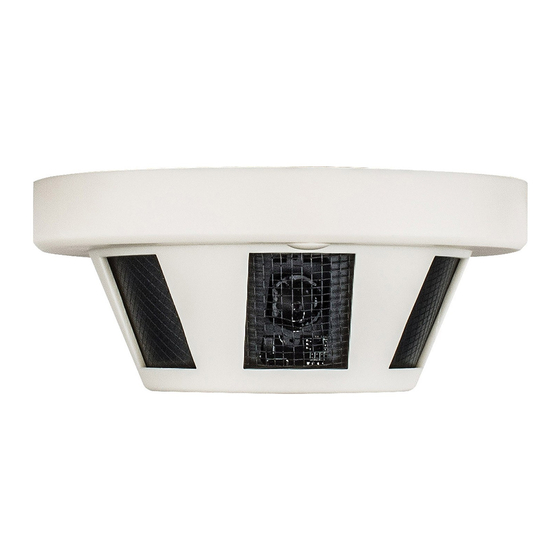

Vitek Transcendent VTC-SMKC4 Manual

Transcendent 2.1 megapixel 4-in-1 hda smoke detector camera

Download this manual

FEATURES:

• 1/3" 2.1 MegaPixel Progressive Scan CMOS

• 2.1 MegaPixel (1080p / 720p)

• HD-TVI / AHD / CVI / CVBS (Selectable) Video

Output

• 1 Lux at F1.2 / 0.1 Lux (B/W)

• 3.7mm Fixed lens Included

• Over 1500' HD Video Transmission (Depending on

cable characteristics and integrity)

• 12VDC Operation

VTC-SMKC4

Transcendent 2.1 Megapixel

4-IN-1 HDA Smoke Detector

Camera

Need help?

Do you have a question about the Transcendent VTC-SMKC4 and is the answer not in the manual?

Page 1 VTC-SMKC4 Transcendent 2.1 Megapixel 4-IN-1 HDA Smoke Detector Camera FEATURES: • 1/3” 2.1 MegaPixel Progressive Scan CMOS • 2.1 MegaPixel (1080p / 720p) • HD-TVI / AHD / CVI / CVBS (Selectable) Video Output • 1 Lux at F1.2 / 0.1 Lux (B/W) •...
Page 2 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
Page 3 Connections 1. Connect the camera’s BNC video input to the video input on a digital video recorder 2. Connect the camera’s 12VDC power output to a power supply appropriate for installation Installation 1) Disconnect power before installation. 2) Confirm proper 12VDC power supply is used to prevent damage to the camera.
Page 4 e p S i f i c i t a c s n o Image Device 1/3” 2.1 MegaPixel Progressive Scan CMOS Resolution HD-TVI / AHD / CVI: 2.1 MegaPixel / CVBS: 960H Effective Pixels 1920x1080 S/N Ratio 48dB or more Built-In Lens Pinhole 3.7mm Fixed Minimum Illumination...
