FEATURES
• 1/2.5" 8 MP[4K] Progressive Scan CMOS Image Sensor
• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI /
CVBS
• 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
• Supports OSD Menu
• 2.8~12mm Motorized Varifocal Lens
• 2 Matrix IRs with up to 165' Range (VTC-THT8RM),
36 IRs with up to 100' Range (VTC-THB8RM)
30 IRs with up to 100' Range (VTD-THD8RM)
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR

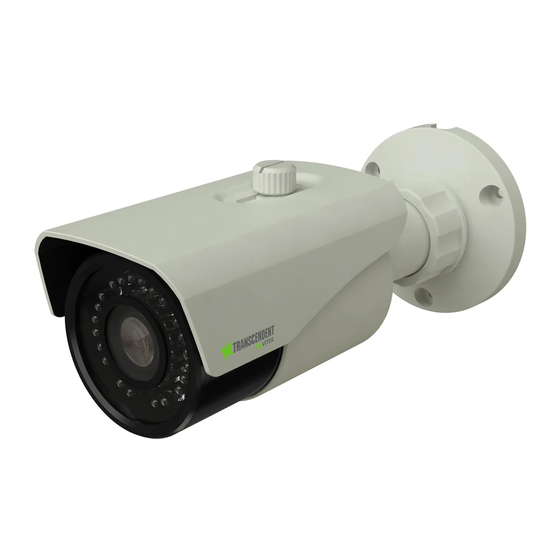

VTC-THB8RM
VTC-THT8RM
VTD-THD8RM

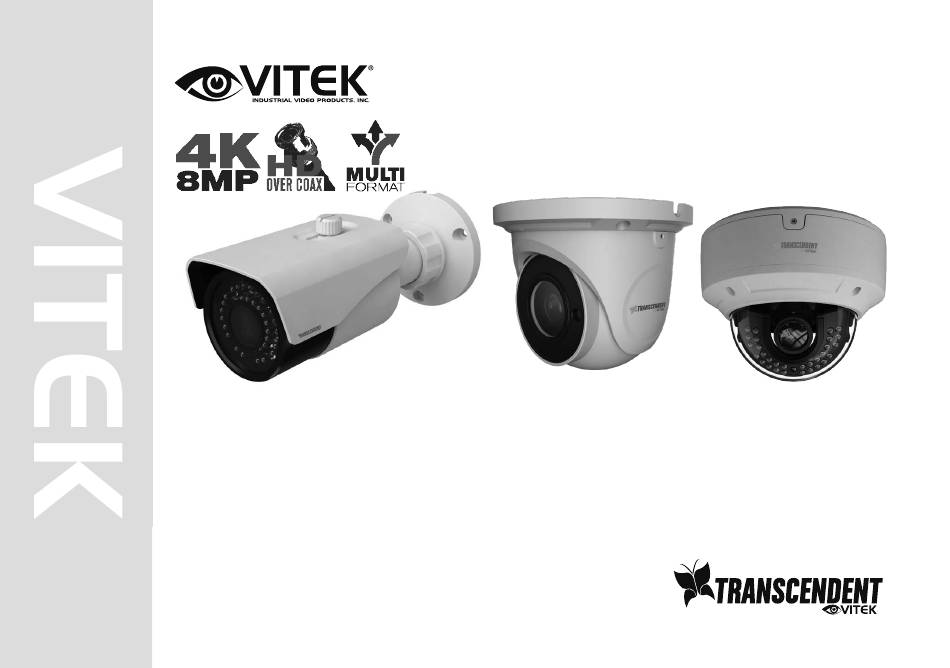

Transcendent 8.0 Megapixel [4K] Indoor/
Outdoor 4-IN-1 Motorized HDA Cameras
• XD-DNR (2D & 3D DNR) Noise Reduction
• IP67 Weather Resistance (VTC-THT8RM, VTD-THD8RM),
IP66 (VTC-THB8RM), IK10 (VTD-THD8RM)
• Supports Up The COAX Control (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• Optional Junction Boxes, Wall Mounts, Pendant, and Semi-
Flush Mounts available (See back page of this manual)
• 12VDC Operation
Advertisement
Table of Contents
Related Manuals for Vitek VTC-THB8RM
Summary of Contents for Vitek VTC-THB8RM
- Page 1 • Optional Junction Boxes, Wall Mounts, Pendant, and Semi- • 2 Matrix IRs with up to 165’ Range (VTC-THT8RM), Flush Mounts available (See back page of this manual) 36 IRs with up to 100’ Range (VTC-THB8RM) 30 IRs with up to 100’ Range (VTD-THD8RM) • 12VDC Operation •...
-
Page 2: Safety Precaution
Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful... -
Page 3: Video Connection
VTC-THB8RM Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Camera Screws Monitor User Manual Drill Template Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output). -
Page 4: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then enough to withstand 3 times the weight of the camera. The mounting tighten the mount lock to secure the viewing angle adjustments. - Page 5 Video Connection VTD-THD8RM Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Install the camera to the mounting base with the lock screw. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 VTC-THT8RM Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 8 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 9 Adjusting the Motorized Lens 1. Click once on the image you want to adjust and then click on the PTZ icon on the sub toolbar 2. The PTZ screen will open and using the Zoom -/+ the lens in the camera will now Zoom in or out and will auto focus...
-
Page 10: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 11 Detailed Specifications VTC-THB8RM VTC-THT8RM VTD-THD8RM Image Sensor 1/2.5” 8.0 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 3840 x 2160 Resolution HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Page 12 OPTIONAL MOUNTS FOR TRANSCENDENT MOTORIZED VARIFOCAL CAMERAS VT-TJB02A VT-TJB01 VT-TJB021 VT-TWMT-4 VT-TWM03 VT-TWMT-A1 Optional Junction Optional Junction Optional Junction Optional Wall Optional Wall Optional Wall Box for use with Box for use Box for use with Mount for use Mount for use Mount for use Transcendent with Select...
