FEATURES
• 1/2.7" 2MP dual-lens Image Sensor, f=3.97mm @ F1.6
• 8-inch 1280x800 LCD Display with 500:1 Contrast Ratio
• 32~212°F with ± 0.3°F Accuracy Temperature Measuring Range
• Temperation Measuring Distance 12 ~ 18" (0.3~0.5m)
• Face Recognition Distance 1 ~ 6.5' (0.3m-2m)
• Recognition Mode Face: 1:N
• Recognition Duration ≤ 0.5s per person
• Face Capactiy 20,000
• Recognition Accuracy 99.7%
• Soft white light, IR light with up to 10' (3m) Distance
• Two-Way Audio: 1-CH built-in Mic w/Built-in Speaker
• 10/100Mbps self-adaptive Ethernet port x1
• Alarm In / Out: 2-CH (Input) / 2-CH (Output)
• Wiegand Input / Output (26/34)
• MicroSD Memory Card Slot for Local Recording Supporting up to
256GB MicroSDXC Card
• RS485x1 (Half Duplex)
• IP66, Surge Protection and Voltage Transient Protection
• Relay output, NO/NC (optional), delay setting supported
• USB x 1
• Power: 12V @ 2A (Sold Separately)
• Power Consumption <12W
• 2-Year Warranty
2MP Body Temperature
Detecting Panel Camera
*Shown with
VT-TPBTH - Post
mount for use
with turnstile
VT-TSP8
*Shown with
VT-TFLBTH -
Stand-on-ground
type bracket
for face panel
Advertisement
Table of Contents
Related Manuals for Vitek VT-TSP8
Summary of Contents for Vitek VT-TSP8

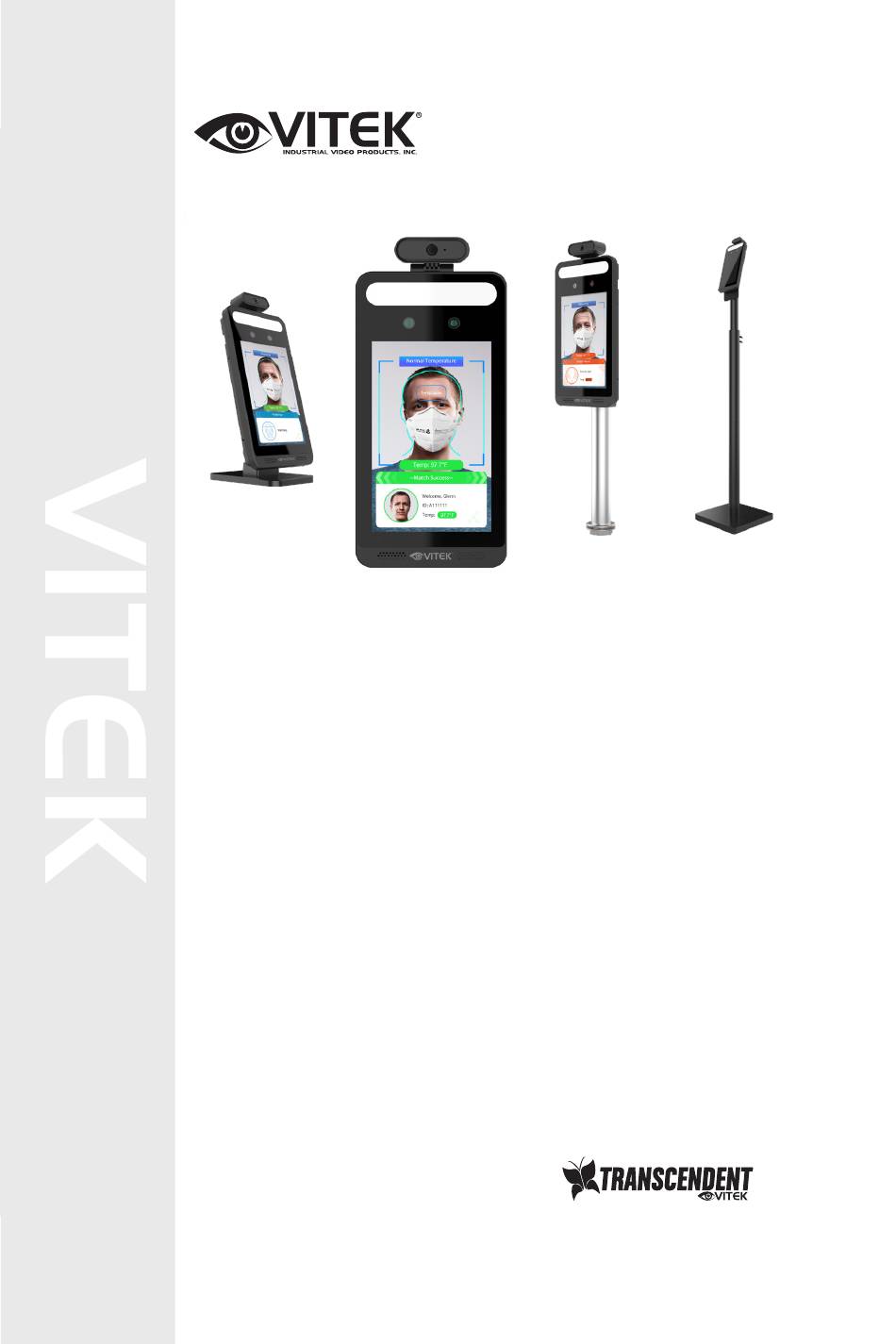

- Page 1 VT-TSP8 2MP Body Temperature Detecting Panel Camera *Shown with VT-TDBTH - *Shown with *Shown with Desktop bracket for VT-TFLBTH - VT-TPBTH - Post face panel Stand-on-ground mount for use type bracket with turnstile for face panel FEATURES • 1/2.7” 2MP dual-lens Image Sensor, f=3.97mm @ F1.6 •...
- Page 2 Please read this manual carefully for correct use of the product. Notes on Safety Notes This product is intended to be supplied by a Listed Power Unit, marked with 'Limited Power Source', 'LPS' on unit, output rated minimum 12V/1 A, no more than 2000m Please use the specified power supply to connect.
- Page 3 Regulatory Information FCC Information 1.FCC compliance The products have been tested and found in compliance with the council FCC rules and regulations part 15 subpart B. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication.
-
Page 4: Table Of Contents
Table of Contents INTRODUCTION ....................1 LOGIN & NETWORK CONNECTION ..............1 ......................1 OGIN ................2 ETWORK ONFIGURATION 1.2.1 LAN ....................2 1.2.2 WAN ....................5 TEMP MEASUREMENT & FR CONFIG .............. 8 3.1 T ..............8 EMPERATURE EASUREMENT ETTINGS 3.2 P .................. - Page 5 6.3.2 SD Card Full ..................33 6.3.3 SD Card Error ..................34 6.3.4 IP Address Conflict ................34 6.3.5 Cable Disconnection ................35 6.3.6 Alarm In ....................35 6.3.7 Alarm Out .................... 36 6.4 N ................37 ETWORK ONFIGURATION 6.4.1 TCP/IP ....................37 6.4.2 Port ......................
-
Page 6: Introduction
Stand-alone device, ready for networking Included Accessories (For optional accessories see pg. 57) Hardware and Plastic Plugs, Drill Template, Wall Mounting Bracket, Cover Plate *Power Supply not included. Use VITEK Model VT-12VDC-2000S (sold separately) Login & Network Connection 1.1 Login... -
Page 7: Network Configuration
Tap the menu button to pop up a login box. Enter the username and password and tap “OK” to enter the main menu page as shown below. The default username: admin The default password: 123456 1.2 Network Configuration 1.2.1 LAN Network connection:... - Page 8 There are two ways to set the network configuration. Configuring the network via the terminal In the main menu page of the terminal, tap “Network Config” to go to the network config interface. Please set IPv4 or IPv6 as needed. Here we take IPv4 network settings for example. You can enter the IP address, subnet mask, gateway and DNS server manually or get these network parameters by selecting obtaining IP address automatically.
- Page 9 ③ Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the information of the camera listed in the above table to show the network information on the right side. Modify the IP address and gateway of the camera and make sure its network address is in the same local network segment as the computer’s.
-
Page 10: Wan
Enter the username and password in the login window to log in. The default username is “admin”; the default password is “123456”. The system will display the above-mentioned textbox to ask you to change the default password. It is strongly recommended to change the default password for account security. If “Do not show again”... - Page 11 LAN and go to ConfigàNetworkàPort menu to set the port number. Port Setup ② Go to Config àNetworkàTCP/IP menu to modify the IP address. IP Setup ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”.
- Page 12 Access through PPPoE dial-up Ø Network connection Access the TSD panel through PPPoE auto dial-up. The setup steps are as follow: ① Go to ConfigàNetworkàPort menu to set the port number. ② Go to Config àNetworkàTCP/IPàPPPoE Config menu. Enable PPPoE and then enter the username and password from your internet service provider.
-
Page 13: Temp Measurement & Fr Config
address” and then enter the static IP address and other parameters. ③ Open the IE browser and enter its WAN IP and http port to access. Temp Measurement & FR Config 3.1 Temperature Measurement Settings You can configure temperature measurement via the terminal or Web Client. Take the temperature measurement settings via Web Client for example. -
Page 14: People Management
Trigger Audio Alarm: If enabled, the system will broadcast the current body temperature as normal or out of range upon detecting a human body. No matter whether the detected body temperature is normal or not, the corresponding voice prompt will be heard. If this item is disabled, the detected body temperature status will not be broadcasted. - Page 15 ③ Set username, gender, group type, ID number, verification mode, etc. ④ Tap to add a face picture. The detailed face adding requirements refer to the descriptions of Adding Face. ⑤ Tap to save settings.
-
Page 16: Face Match Settings
Adding Faces: Face the camera and ensure your face picture is in the middle of the face collecting window. Keep your expression naturally when collecting face pictures. Do not wear hat, sunglasses, or other objects that can affect the face recognition function. Make sure your hair does not cover your eyes, ears, etc. - Page 17 Please set similarity threshold, deduplication period, snapshot interval, face exposure and white light mode as needed. You can also enter the face match configuration interface via Web Client to set. The setting steps are as follows. 1. Go to ConfigàFaceàFace-Match Config interface. 2.
-
Page 18: Face Database Management
every 5 seconds during its continuous tracking period. 4. Set alarm holding time and alarm trigger options. 5. Set face comparison options. Deduplication Period: In the set period, delete the repeated comparison results. Similarity threshold: When the similarity of the captured face picture and the face picture added into the face database exceeds the similarity threshold, alarms will be triggered. - Page 19 ② Adding multiple face pictures at a time Click and then add multiple face pictures once according to the prompted rules. Here is the example of the people information file (.CSV). Put the people information file and images into the same directory as shown on the below left. Click “Browse”...
-
Page 20: Mask Detection
③ Add face pictures by using face album management tool ④ Add the captured picture in the live mode (See Add captured face pictures to the face database). After adding face pictures, you can search them by name, gender, ID number and so on. Click “Modify”... -
Page 21: Live View
① Enable “Mask Detection” as needed. ② Set the alarm holding time. ③ Set the alarm trigger options. Alarm Out: If enabled, alarm output will be triggered when the detected person doesn’t wear a mask. Trigger Audio Alarm: If enabled, the alarm voice will be heard when the detected person doesn’t wear a mask. - Page 22 An accurate temperature will not be read if the forehead of the detected person doesn’t aim at the “Temp zone”. If the temperature is lower than the normal value, please move towards the temperature measurement sensor (2”to 8” away from the temperature sensor) to get an accurate reading.
-
Page 23: Temperature Measurement & Face Recognition View
4.1.2 Temperature Measurement & Face Recognition View After configuring temperature measurement and face match, the temperature and face match result can be viewed on the screen. When detecting a face, the device will display the following interface. Please measure the body temperature according to the above-mentioned temperature measurement requirements. -
Page 24: Live View Via Web
When the captured face is not added to the face database or the similarity is lower than the pre- defined value, it will display “Match Failure” and the box will turn red. If the mask detection and “Trigger Audio Alarm” are selected, warning voice will be heard if no mask is detected. - Page 25 the corresponding events are enabled. Face Match View Ø After all face comparison settings are set successfully, enter the live view interface. Click to view the captured face pictures and face comparison information. Area ①: captured face pictures; area ②: face comparison area l View the comparison details In area ②, click the compared face picture to bring up the following window.
-
Page 26: Access Control Settings
Fill out the relevant information and click “Entry” to add this face picture. Access Control Settings 5.1 Door Lock Settings Click ConfigàAccess ControlàDoor Lock to go to the following interface. After the access control device is connected to the terminal, you can set unlocking mode in this interface. Unlocking Mode: Four options--by face recognition, normal temperature, mask on, by password. -
Page 27: Wiegand Settings
seconds; the door will be opened 2 seconds after face recognition. Unlocking Duration: If the door has been unlocked for a period that exceeds the duration, the door will be automatically locked. The time range is from 0 to 10 seconds. For example, “By Face Recognition”... -
Page 28: Other Configurations
The setup steps of the alarm trigger options are the same as temperature measurement settings. Please refer to temperature measurement settings chapter for details. Other Configurations In the Webcam client, choose “Config” to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 6.1 System Settings 6.1.1 Basic Information In the “Basic Information”... -
Page 29: Local Config
Select the time zone and DST as required. Click the “Date and Time” tab to set the time mode. 6.1.3 Local Config Go to ConfigàSystemàLocal Config to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. -
Page 30: Storage
6.1.4 Storage Go to ConfigàSystemàStorage to go to the interface as shown below. l SD Card Management Click the “Format” button to format the SD card. All data will be cleared by clicking this button. Click the “Eject” button to stop writing data to SD card. Then the SD card can be ejected safely. - Page 31 Weekly schedule Set the alarm time from Sunday through Saturday for a single week. Each day is divided in one-hour increments. Green means scheduled. Blank means unscheduled. “Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline. “Erase”: Delete the schedule.
-
Page 32: Image Configuration
Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. - Page 33 Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color, the brighter the image is. Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.
-
Page 34: Video / Audio Configuration
can be adjusted. Gain Mode: Choose “Auto” or “Manual”. If “Auto” is selected, the gain value will be automatically adjusted according to the actual situation. If “Manual” is selected, the gain value shall be set manually. The higher the value is, the brighter the image is. Schedule Settings of Image Parameters: Click the “Schedule”... -
Page 35: Osd Configuration
Click the “Audio” tab to go to the interface as shown below. Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are options. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. -
Page 36: Screen Brightness
Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. Picture Overlap Settings: Check “OSD Content1”, choose “Picture Overlay” and click “Browse” to select the overlap picture. -
Page 37: Face Exposure
White Light Mode: “OFF”, “Manual” or “Auto” is optional. In low light condition, this mode can be enabled. 6.2.6 Face Exposure To enable and set face exposure, please go to ConfigàImageàFace Exposure interface. When the brightness of the captured face is not enough, it can be enabled. 6.3 Alarm Configuration 6.3.1 Exception Detection This function can detect changes in the surveillance environment affected by external factors. -
Page 38: Sd Card Full
Scene Change Detection: Alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: Alarms will be triggered if the video becomes blurry. Enable Video Color Cast Detection: Alarms will be triggered if the video becomes obscured. 2. -
Page 39: Sd Card Error
2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. The setup steps are the same as temperature measurement settings. Please refer to temperature measurement settings chapter for details. 6.3.3 SD Card Error When there are errors in writing to the SD card, the corresponding alarms will be triggered. 1. -
Page 40: Cable Disconnection
6.3.5 Cable Disconnection 1. Go to ConfigàAlarmà Exception àCable Disconnected as shown below. 2. Click “Enable” and set the alarm holding time. 3. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out. 6.3.6 Alarm In To set sensor alarm (alarm in): Go to ConfigàAlarmàAlarm In interface as shown below. -
Page 41: Alarm Out
Click “Apply settings to” to quickly apply the settings to the other alarm input. 6.3.7 Alarm Out Go to ConfigàAlarmàAlarm Out. Alarm Out ID: Select the alarm out ID. Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and timing are optional. -
Page 42: Network Configuration
Timing: Select the alarm type. Then click “Add” and drag the mouse on the timeline to set the schedule of alarm out; click “Erase” and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the alarm out will be triggered in the specified time. -
Page 43: Port
Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click “IP Change Notification Config”... -
Page 44: Server Configuration
Long Polling Port: The port is used for a persistent connection of third-party platform to push smart data, like face pictures. 6.4.3 Server Configuration This function is mainly used for connecting network video management system. 1. Check “Enable”. 2. Check the IP address and port of the transfer media server in the ECMS/NVMS. Then enable the auto report in the ECMS/NVMS when adding a new device. -
Page 45: Rtsp
Create domain name. After the domain name is successfully applied for, the domain name will be listed as below. 3. Enter the username, password, domain you apply for in the DDNS configuration interface. 4. Click the “Save” button to save the settings. 6.4.5 RTSP Go to ConfigàNetworkàRTSP. -
Page 46: Upnp
Select “Enable” to enable the RTSP function. Port: Access port of the streaming media. The default number is 554. RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player. Multicast Address Mainstream: The address format is “rtsp://IP address: rtsp port/profile1?transportmode=mcast”. -
Page 47: Email
Go to ConfigàNetworkàUPnP. Enable UPNP and then enter UPnP name. 6.4.7 Email If you need to trigger Email when an alarm happens or the IP address is changed, please set the Email here first. Go to ConfigàNetwork àEmail. Sender Address: Sender’s e-mail address. Username and password: Sender’s username and password. -
Page 48: Ftp
sent. When different alarms are triggered at the same time, multiple emails will be sent separately. Click the “Test” button to test the connection of the account. Recipient Address: receiver’s e-mail address. 6.4.8 FTP After an FTP server is set up, captured pictures from events will be uploaded to the FTP server. Go to ConfigàNetwork àFTP. -
Page 49: P2P (Optional)
There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (e.g. https://192.168.226.201:443). A private certificate can be created if users don’t want to use the default one. Click “Delete” to cancel the default certificate. -
Page 50: Security Configuration
to ConfigàNetworkàP2P interface. 6.5 Security Configuration 6.5.1 User Configuration Go to ConfigàSecurityàUser interface as shown below. Add user: 1. Click the “Add” button to pop up the following textbox. 2. Enter username in “Username” textbox. 3. Enter the password in the “Password” and “Confirm Password” textbox. It is recommended to set a high-level password that shall be composed of numbers, special characters, upper- or lower-case letters for your account security. -
Page 51: Online User
If this option is enabled, only the PC with the specified MAC address can access the camera for that user. 6. Click the “OK” button and then the newly added user will be displayed in the user list. Modify user: 1. -
Page 52: Block And Allow Lists
6.5.3 Block and Allow Lists Go to ConfigàSecurityàBlock and Allow Lists as shown below. The setup steps are as follows: Check the “Enable address filtering” check box. Select “Block/Allow the following address”, IPv4/IPv6/MAC and then enter IP address or MAC address in the address box and click the “Add” button. 6.5.4 Security Management Go to ConfigàSecurityàSecurity Management as shown below. -
Page 53: Reboot
Import & Export Settings Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2. Click the “Import Setting” or “Export Setting” button. Default Settings Click the “Load Default”... -
Page 54: Operation Log
1. Click the “Browse” button to select the save path of the upgrade file 2. Click the “Upgrade” button to start upgrading the firmware. 3. The device will restart automatically Caution! Do not close the browser or disconnect the camera from the network during the upgrade. - Page 55 l Local Image Search Choose “Picture”— “Local”. Set time: Select date and choose the start and end time. Click to search the images. Double click a file name in the list to view the captured photos as shown above. Click to return to the previous interface.
- Page 56 Set time: Select date and choose the start and end time. Choose the alarm events at the bottom of the interface. Click to search the images. Double click a file name in the list to view the captured photos. Click to return to the previous interface.
-
Page 57: Video Search
7.2 Video Search 7.2.1 Local Video Search Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface. Choose “Record”— “Local”. Set search time: Select the date and choose the start and end time. Click to search the images. -
Page 58: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, click this button to Pause button continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 7.2.2 SD Card Video Search Click Search to go to the interface as shown below. - Page 59 The timetable can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading Search the video files according to the above-mentioned steps. Select the start time by clicking on the timetable. Click to set the start time and then this button turns blue ( Select the end time by clicking on the timetable.
-
Page 60: Face Match Result Search
Face Match Result Search Click “Data Record” tab to go to the face recognition result search interface. Set the start time and end time and click “Search” to view the face recognition result. The capture face pictures, the body temperature and the snapshot time will be shown. Click “Export”... -
Page 61: Detailed Specifications + Optional Mounts
DETAILED SPECIFICATIONS + OPTIONAL MOUNTS VT-TSP8 - Body Temperature Detecting Panel Image Sensor 1/2.7” 2MP dual-lens, f=3.97mm @ F1.6 Display Screen 8-inch 1280x800 LCD with 500:1 Contrast Ratio Temperature Measuring Range 32~212°F with ± 0.3°F Accuracy Temperature Measuring Distance 12” ~ 18” (0.3m~0.5m) Face Recognition Distance 1’... - Page 62 OPTIONAL ACCESSORIES FOR TRANSCENDENT VT-TSP8 **Power Supply not included - Use VITEK VT-12VDC-2000S VT-TDBTH - Desktop Bracket for Face Panel VT-TPBTH Post Mount Bracket for Use with Turnstile VT-TFLBTH - Stand-on-Ground Bracket for Face Panel...
- Page 63 VT-WAP1250 With high speed transmission of 150MBps and a wireless range & VT-WAP1150 of up to 1.25 miles, Vitek Wireless Access Points eliminate the need for expensive and troublesome long distance cabling in remote areas where CCTV monitoring takes place!
- Page 64 LIMITED PRODUCT WARRANTY This VITEK product carries a two (2) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of two (2) years, or as otherwise stated above, from the date of purchase by the end user.
