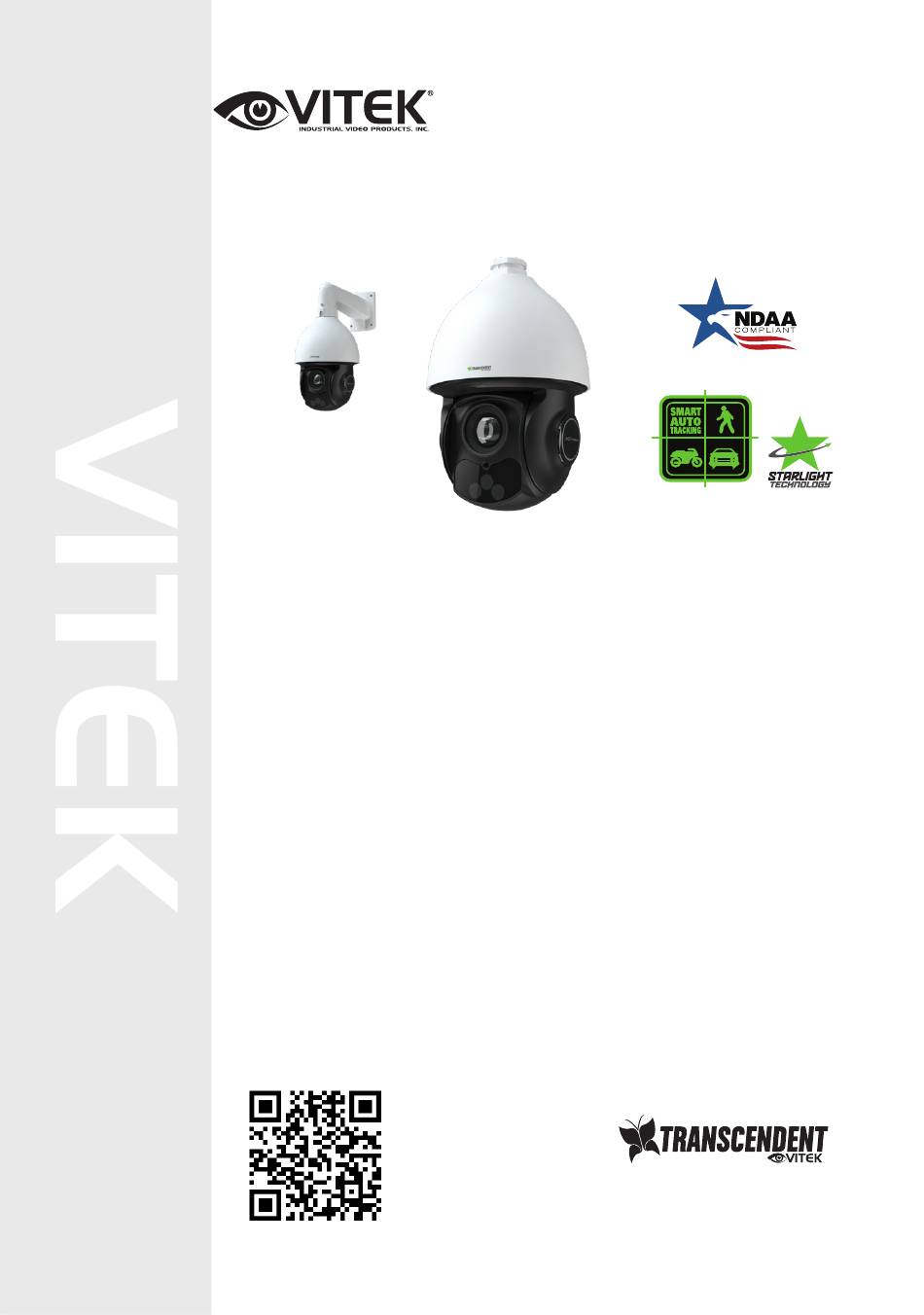

Vitek VT-TPTZ32HRAN-8PNS Quick Start Manual

QUICK START GUIDE
*Shown with
optional wall mount
VT-TPT23HR-WM
KEY FEATURES
• 1/2.8" 8 MegaPixel [4K] SONY STARVIS® Progressive Scan StarlightCMOS Sensor
• NDAA Compliant
• Up to 8.0 MegaPixel [4K] (3840 × 2160) Resolution @ 30fps
• Ultra High-Speed Pan / Tilt / Zoom with 32× Optical Zoom Lens (4.8- 154mm Focal Length)
• Smart IR with 650' (200m) IR Range
• Real-Time Auto Zoom Tracking: Transcendent GEN IV IP PTZ Cameras
feature the most advanced PTZ Auto-Tracking available, powered by A.I.!
• AI Facial Detection: Transcendent GEN IV Advanced Analytics deliver
improved Facial Detection, with up to 95% accuracy!
• Intelligent Tracking: Intelligent tracking is capable of tracking people, cars,
and bicycles entering and exiting the camera's view
• True 120dB WDR (Wide Dynamic Range)
• Smart H.265+/H.265/H.264+/H.264/MJPEG Compression
• True Day/Night with ICR Cut Filter with Auto/Manual Gain Control
• 1 Alarm Input + 1 Alarm Output
• 1 Audio Input (MIC in) + 1 Audio Output
• Built-in MicroSD Card Slot, Supporting Local Recording up to 256GB
• Scalable Video Coding (SVC)
• Stealth Gimbal Driving Technology
• ONVIF Compliant with Zero Configuration + API and SDK
• IP66 Ingress Protection + IK10 Impact (Excludes Glass Window)
• DC24V, 24VAC or PoE++ Power Supply Included, PoE Injector Required for PoE Power
• 1 RJ45 10M/100M Adaptive Ethernet
• Optional Pendant, Semi-Flush, Corner, Pole, and Wall Mounts Available [See pg. 11]
• 3-Year Warranty
* Please research local, state and federal laws regarding the implementation of audio surveillance
** SONY™ is an independent and wholly owned corporation and has not tested or verified this
product's compatibility with this sensor.
VT-TPTZ32HRAN-8PNS
Transcendent Gen IV 8 MegaPixel [4K]
32× IP PTZ with A.I. Powered Facial
Detection and Auto-Tracking
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
